Data, Network & BUS Cable:
Plastic Fiber Cable Industry, POF/PA

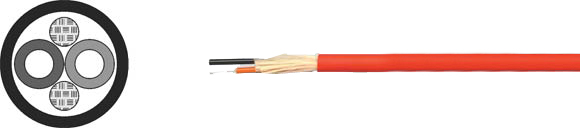

  I-V4Y(ZN)11Y

Sealcon, Inc, European & Domestic cable

Plastic Fiber Cable Industry, POF/PA, Sealcon, , RoHS Approved, RoHS Compliant
Part-No. Description Outer Jacket Material Outer Jacket Color Outer Ø(mm) Max.
Tensile Force
Min.Stat. Bending Radius Fiber Attenuation Oil Resist. Acc. to DESINA Weight kg/km
801200 I-V4Y(ZN)11Y 2P980/1000 Rugged PUR Red 8.0 100 N 50.0 160A1 Yes no 42.0
801201 I-V4Y(ZN)11Y 2P980/1000 Flex Rugged PUR Red 8.0 100 N 50.0 250A1 Yes no 51.0
801202 I-V4Y(ZN)11Y 2P980/1000 Heavy PUR Red 6.0 100 N 30.0 160A1 Yes no 28.0
  • Refractive index conductor: 1.492
  • Refractive index cladding: 1.419
  • Numerical aperture: 0.5
  • Attenuation: see table
Fiber Specifications
PDF Printable PDF

Granded Index Fibers (Multi-Mode)
Specification Fiber Type G 50/125 Fiber Type G 62.5/125
Fiber Category OM2 Standard Fiber OM1 Standard Fiber
Conductor Diameter 50 ± 3 µm 62.5 ± 3 µm
Numerical Aperture 0.200 ± 0.015 0.275 ± 0.015
Typical Attenuation 850 nm 2.8 dB/km 3.0 dB/km
1300 nm 0.7 dB/km 1.0 dB/km
Minimum Bandwidth 850 nm 500 MHz x km 200 MHz x km
1300 nm 800 MHz x km 500 MHz x km
Cladding Diameter 125 ± 1.0 µm
Primary Coating Diameter 245 ± 10 µm
Conductor Non-circularity < 5%
Cladding Concentricity Error < 3.0 µm
Cladding Non-circularity < 2%

Specification Fiber Type G 50/125
Fiber Category OM3 Standard Fiber OM4 Standardfibre
Conductor Diameter 50 ± 3 µm 50 ± 3 µm
Numerical Aperture 0.200 ± 0.015 0.200 ± 0.015
Typical Attenuation 850 nm 2.5 dB/km 3.0 dB/km
1300 nm 0.5 dB/km 1.0 dB/km
Minimum Bandwidth 850 nm 1500 MHz x km 3500 MHz x km
1300 nm 500 MHz x km 500 MHz x km
Cladding Diameter 125 ± 1.0 µm 125 ± 1.0 µm
Primary Coating Diameter 245 ± 10 µm 245 ± 10 µm
Conductor Non-circularity < 5% < 5%
Cladding Concentricity Error < 3.0 µm < 6.0 µm
Cladding Non-circularity < 2% < 2%

Single-Mode Fiber
Specification Fiber Type E9...10/125 (single mode)
Fiber Category ITU-T G. 652
Attenuation 1300 nm 0.36 dB/km
1550 nm 0.22 dB/km
Dispersion 1285 - 1330 nm < 3.5 ps (nm x km)
1550 nm < 19 ps (nm x km)
Wave Length 1312 nm
Mode Field Diameter at 1310 nm 9.3 ± 0.5 µm
Cladding Diameter 125 ± 1.0 µm
Primary Coating Diameter 245 ± 10 µm
Cut-off Wave Length < 1250 nm
Cladding Concentricity Error ≤ 0.8 µm
Cladding Non-circularity < 1.0%

POF and HCS Fiber
Specification Fiber Type POF P980/1000 Fiber Type HCS K200/230
Conductor Diameter 980 µm 200 µm
Numerical Aperture 0.5 0.37
Typical Attenuation 650 nm 160 dB/km 10 dB/km
850 nm - 8 dB/km
Minimum Bandwidth 650 nm 10 MHz x 100 m 17 MHz x km
850 nm - 20 MHz x km
Wall Thickness 1000 µm 230 µm
Approvals
RoHS
Cable Construction Temperature Range
Fiber Type: POF 980/1000
Fiber Cladding: PE
Laying, min.: -5°C/+23°F
Laying, max: +50°C/+122°F
Operating, min.: -20°C/-4°F
Operating, max.: +70°C/+158°F
Application
Signal lines as plastic optical fiber. The use of these transmission systems significantly reduces the number of different cables in a planned bus installation in machine tools operations. Furthermore, possible EMC problems are prevented by the metal-free construction. The main application of these cables are in machine construction and automobile industry (PA version).
Properties
  • Not Available
Note
  • Not Available
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
