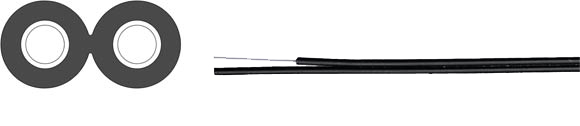

Data, Network & BUS Cable: Plastic Fiber Cable Industry, POF/PE

  I-V2Y, I-V2Y(ZN)11Y

Sealcon, Inc, European & Domestic cable

Plastic Fiber Cable Industry, POF/PE, Sealcon, , RoHS Approved, RoHS Compliant
Part-No. Description Outer Jacket Material Outer Jacket Color Outer Ø(mm) Max.
Tensile Force
Min.Stat. Bending Radius Fiber Attenuation Oil Resist. Acc. to DESINA Weight kg/km
80532  I-V2Y 1P 980/1000 PE Black 2.2 70 25.0 160A1 no no 4.0
80388  I-V2Y 2P 980/1000 PE Black 2.2x4.4 140 25.0 160A1 no no 8.0
81611  I-V2Y11Y 1P 980/1000 PUR Violet 5.8 400 30.0 230A1 Yes Yes 30.0
81882  I-V2Y11Y 2P 980/1000 PUR Violet 6.0 400 31.0 230A1 Yes Yes 36.0
80629  I-V2Y11Y 2P 980/1000 PUR Violet 6.0 400

31.0

230A1 Yes Yes 36.0
80630  I-V2Y11Y 4P 980/1000 PUR Violet 7.1 400 45.0 230A1 Yes Yes 65.0
82032  I-V2Y11Y 2P 980/1000 +  2x1mm² Copper PUR Red 7.8 200 70.0 230A1 Yes no 60.0
82033  I-V2Y11Y 2P 980/1000 +  3x1.5mm² Copper PUR Red 11.0 200 70.0 230A1 Yes no 132.0
  • Refractive index conductor: 1.492
  • Refractive index cladding: 1.419
  • Numerical aperture: 0.5
  • Attenuation: see table
Fiber Specifications
PDF Printable PDF

Granded Index Fibers (Multi-Mode)
Specification Fiber Type G 50/125 Fiber Type G 62.5/125
Fiber Category OM2 Standard Fiber OM1 Standard Fiber
Conductor Diameter 50 ± 3 µm 62.5 ± 3 µm
Numerical Aperture 0.200 ± 0.015 0.275 ± 0.015
Typical Attenuation 850 nm 2.8 dB/km 3.0 dB/km
1300 nm 0.7 dB/km 1.0 dB/km
Minimum Bandwidth 850 nm 500 MHz x km 200 MHz x km
1300 nm 800 MHz x km 500 MHz x km
Cladding Diameter 125 ± 1.0 µm
Primary Coating Diameter 245 ± 10 µm
Conductor Non-circularity < 5%
Cladding Concentricity Error < 3.0 µm
Cladding Non-circularity < 2%

Specification Fiber Type G 50/125
Fiber Category OM3 Standard Fiber OM4 Standardfibre
Conductor Diameter 50 ± 3 µm 50 ± 3 µm
Numerical Aperture 0.200 ± 0.015 0.200 ± 0.015
Typical Attenuation 850 nm 2.5 dB/km 3.0 dB/km
1300 nm 0.5 dB/km 1.0 dB/km
Minimum Bandwidth 850 nm 1500 MHz x km 3500 MHz x km
1300 nm 500 MHz x km 500 MHz x km
Cladding Diameter 125 ± 1.0 µm 125 ± 1.0 µm
Primary Coating Diameter 245 ± 10 µm 245 ± 10 µm
Conductor Non-circularity < 5% < 5%
Cladding Concentricity Error < 3.0 µm < 6.0 µm
Cladding Non-circularity < 2% < 2%

Single-Mode Fiber
Specification Fiber Type E9...10/125 (single mode)
Fiber Category ITU-T G. 652
Attenuation 1300 nm 0.36 dB/km
1550 nm 0.22 dB/km
Dispersion 1285 - 1330 nm < 3.5 ps (nm x km)
1550 nm < 19 ps (nm x km)
Wave Length 1312 nm
Mode Field Diameter at 1310 nm 9.3 ± 0.5 µm
Cladding Diameter 125 ± 1.0 µm
Primary Coating Diameter 245 ± 10 µm
Cut-off Wave Length < 1250 nm
Cladding Concentricity Error ≤ 0.8 µm
Cladding Non-circularity < 1.0%

POF and HCS Fiber
Specification Fiber Type POF P980/1000 Fiber Type HCS K200/230
Conductor Diameter 980 µm 200 µm
Numerical Aperture 0.5 0.37
Typical Attenuation 650 nm 160 dB/km 10 dB/km
850 nm - 8 dB/km
Minimum Bandwidth 650 nm 10 MHz x 100 m 17 MHz x km
850 nm - 20 MHz x km
Wall Thickness 1000 µm 230 µm
Approvals
RoHS
Cable Construction Temperature Range
Fiber Type: POF 980/1000
Fiber Cladding: PE
Laying, min.: -20°C/-4°F
Laying, max: +80°C/+176°F
Operating, min.: -20°C/-4°F
Operating, max.: +80°C/+176°F
Application
® plastic-fiber cables are used in mechanical engineering, both in mobile and fixed applications. With different constructions, such as PUR outer sheaths, special strain relief components, hybrid construction with copper conductors for power supply or only raw fiber cables, any possible fields of application are covered. Due to their solidity and their simple adjustability on site, the plastic-fibers (PMMA) are particularly suitable for applications where trouble-free data transmission in necessary under heavy-duty conditions.
Properties
  • Not Available
Note
  • Not Available
Cable Accessories
  • Coming Soon!
