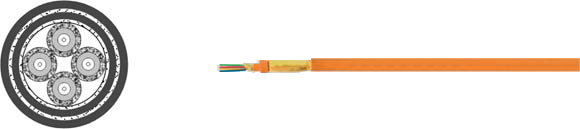

Data, Network & BUS Cable: Fiber Optic Cable - Flexible

  A-V(ZN)11Y11Y

Hi-Tech Controls, Inc, European wires and cables

Fiber Optic Cable Flexible, Hi-Tech Controls, , RoHS Approved, RoHS Compliant
Part-No. Description Fibers Outer Ø(mm) Max.
Tensile Force
Min. Stat. Bending Radius Caloric Load MJ/m Transverse Pressure N/cm (max.) Weight kg/km
No. Type
81765  MOBILE CABLE 11Y 4 Multi-Mode G50/125 6.0 2000 120.0 1.20 100 32.0
82823  MOBILE CABLE 11Y 4 Multi-Mode G62.5/125 6.0 2000 120.0 1.20 100 32.0
  • Corrosiveness acc. to EN 50267-2-3
  • Halogen-free acc. to 60754-2
  • Longitudinally water tight acc. to IEC 60794-1-2-F5
  • Resistant to hammer impact acc. to IEC 60794-1-2-E6
  • Bending cycles acc. to IEC 60794-1-2-E6: 250.000
  • Oil-resistant
Fiber Specifications
PDF Printable PDF

Granded Index Fibers (Multi-Mode)
Specification Fiber Type G 50/125 Fiber Type G 62.5/125
Fiber Category OM2 Standard Fiber OM1 Standard Fiber
Conductor Diameter 50 ± 3 µm 62.5 ± 3 µm
Numerical Aperture 0.200 ± 0.015 0.275 ± 0.015
Typical Attenuation 850 nm 2.8 dB/km 3.0 dB/km
1300 nm 0.7 dB/km 1.0 dB/km
Minimum Bandwidth 850 nm 500 MHz x km 200 MHz x km
1300 nm 800 MHz x km 500 MHz x km
Cladding Diameter 125 ± 1.0 µm
Primary Coating Diameter 245 ± 10 µm
Conductor Non-circularity < 5%
Cladding Concentricity Error < 3.0 µm
Cladding Non-circularity < 2%

Specification Fiber Type G 50/125
Fiber Category OM3 Standard Fiber
Conductor Diameter 50 ± 3 µm
Numerical Aperture 0.200 ± 0.015
Typical Attenuation 850 nm 2.5 dB/km
1300 nm 0.5 dB/km
Minimum Bandwidth 850 nm 1500 MHz x km
1300 nm 500 MHz x km
Cladding Diameter 125 ± 1.0 µm
Primary Coating Diameter 245 ± 10 µm
Conductor Non-circularity < 5%
Cladding Concentricity Error < 3.0 µm
Cladding Non-circularity < 2%

Single-Mode Fiber
Specification Fiber Type E9...10/125 (single mode)
Fiber Category ITU-T G. 652
Attenuation 1300 nm 0.36 dB/km
1550 nm 0.22 dB/km
Dispersion 1285 - 1330 nm < 3.5 ps (nm x km)
1550 nm < 19 ps (nm x km)
Wave Length 1312 nm
Mode Field Diameter at 1310 nm 9.3 ± 0.5 µm
Cladding Diameter 125 ± 1.0 µm
Primary Coating Diameter 245 ± 10 µm
Cut-off Wave Length < 1250 nm
Cladding Concentricity Error ≤ 0.8 µm
Cladding Non-circularity < 1.0%

POF and HCS Fiber
Specification Fiber Type POF P980/1000 Fiber Type HCS K200/230
Conductor Diameter 980 µm 200 µm
Numerical Aperture 0.5 0.37
Typical Attenuation 650 nm 160 dB/km 10 dB/km
850 nm - 8 dB/km
Minimum Bandwidth 650 nm 10 MHz x 100 m 17 MHz x km
850 nm - 20 MHz x km
Wall Thickness 1000 µm 230 µm
Approvals
RoHS
Cable Construction Temperature Range
Conductor Type: Tight Buffer
GPR Support Element
Strain Relief Elements: Aramide
Inner Jacket Material: PUR
Outer Jacket Material: PUR
Outer Jacket Color: Orange
Laying, min.: -5°C/+23°F
Laying, max: +50°C/+122°F
Operating, min.: -20°C/-4°F
Operating, max.: +60°C/+140°F
Application
These ® cables were designed as flexible field cables, even for use under extreme conditions. They are easily wound up on a drum and are very tension-proof. The double-jacket made of TPE makes them outstanding for uses in moving fiber-optic cables such as TV-transmission, supervision of protected areas, etc.
Properties
  • Not Available
Note
  • Not Available
Cable Accessories
  • Coming Soon!
