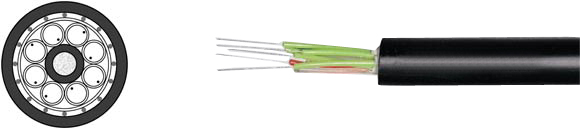

Data, Network & BUS Cable: Fiber Optic Outdoor Cable

Acc. to DIN VDE 0888 A-WF(ZN)2Y, A-WF(ZN)2Y4Y

Hi-Tech Controls, Inc, European wires and cables

Fiber Optic Outdoor Cable, Hi-Tech Controls, , RoHS Approved, RoHS Compliant
Part-No. Description Fibers No. of Fibers/ Cond. Outer Ø (mm) Max.
Tensile Force
Min. Stat. Bending Radius Caloric Load MJ/m Transverse Pressure N/cm (max.) Weight kg/km
No. Type
80234  A-WF(ZN)2Y 2 Multi-Mode G50/125 1 14.0 2500 210.0 8.20 300 80.0
80240  A-WF(ZN)2Y 2 Multi-Mode G62.5/125 1 14.0 2500 210.0 8.20 300 80.0
80228  A-WF(ZN)2Y 2 Single-Mode E9/125 1 14.0 2500 210.0 8.20 300 80.0
80235  A-WF(ZN)2Y 4 Multi-Mode G50/125 1 14.0 2500 210.0 8.20 300 95.0
80241  A-WF(ZN)2Y 4 Multi-Mode G62.5/125 1 14.0 2500 210.0 8.20 300 95.0
80229  A-WF(ZN)2Y 4 Single-Mode E9/125 1 14.0 2500 210.0 8.20 300 95.0
80236  A-WF(ZN)2Y 6 Multi-Mode G50/125 1 14.0 2500 210.0 8.20 300 110.0
80242  A-WF(ZN)2Y 6 Multi-Mode G62.5/125 1 14.0 2500 210.0 8.20 300 110.0
80230  A-WF(ZN)2Y 6 Single-Mode E9/125 1 14.0 2500 210.0 8.20 300 110.0
80237  A-WF(ZN)2Y 8 Multi-Mode G50/125 1 14.0 2500 210.0 8.20 300 125.0
80243  A-WF(ZN)2Y 8 Multi-Mode G62.5/125 1 14.0 2500 210.0 8.20 300 125.0
80231  A-WF(ZN)2Y 8 Single-Mode E9/125 1 14.0 2500 210.0 8.20 300 125.0
80239  A-WF(ZN)2Y 12 Multi-Mode G50/125 1 14.0 2500 210.0 8.20 300 170.0
80245  A-WF(ZN)2Y 12 Multi-Mode G62.5/125 1 14.0 2500 210.0 8.20 300 170.0
80233  A-WF(ZN)2Y 12 Single-Mode E9/125 1 14.0 2500 210.0 8.20 300 170.0
80252  A-WF(ZN)2Y4Y 2 Multi-Mode G50/125 1 15.0 2500 230.0 9.50 400 95.0
80258  A-WF(ZN)2Y4Y 2 Multi-Mode G62.5/125 1 15.0 2500 230.0 9.50 400 95.0
80246  A-WF(ZN)2Y4Y 2 Single-Mode E9/125 1 15.0 2500 230.0 9.50 400 95.0
80253  A-WF(ZN)2Y4Y 4 Multi-Mode G50/125 1 15.0 2500 230.0 9.50 400 115.0
80259  A-WF(ZN)2Y4Y 4 Multi-Mode G62.5/125 1 15.0 2500 230.0 9.50 400 115.0
80247  A-WF(ZN)2Y4Y 4 Single-Mode E9/125 1 15.0 2500 230.0 9.50 400 115.0
80254  A-WF(ZN)2Y4Y 6 Multi-Mode G50/125 1 15.0 2500 230.0 9.50 400 130.0
80260  A-WF(ZN)2Y4Y 6 Multi-Mode G62.5/125 1 15.0 2500 230.0 9.50 400 130.0
80248  A-WF(ZN)2Y4Y 6 Single-Mode E9/125 1 15.0 2500 230.0 9.50 400 130.0
80255  A-WF(ZN)2Y4Y 8 Multi-Mode G50/125 1 15.0 2500 230.0 9.50 400 150.0
80261  A-WF(ZN)2Y4Y 8 Multi-Mode G62.5/125 1 15.0 2500 230.0 9.50 400 150.0
80249  A-WF(ZN)2Y4Y 8 Single-Mode E9/125 1 15.0 2500 230.0 9.50 400 150.0
80257  A-WF(ZN)2Y4Y 12 Multi-Mode G50/125 1 15.0 2500 230.0 9.50 400 190.0
80263  A-WF(ZN)2Y4Y 12 Multi-Mode G62.5/125 1 15.0 2500 230.0 9.50 400 190.0
80251  A-WF(ZN)2Y4Y 12 Single-Mode E9/125 1 15.0 2500 230.0 9.50 400 190.0
Fiber Specifications
PDF Printable PDF

Granded Index Fibers (Multi-Mode)
Specification Fiber Type G 50/125 Fiber Type G 62.5/125
Fiber Category OM2 Standard Fiber OM1 Standard Fiber
Conductor Diameter 50 ± 3 µm 62.5 ± 3 µm
Numerical Aperture 0.200 ± 0.015 0.275 ± 0.015
Typical Attenuation 850 nm 2.8 dB/km 3.0 dB/km
1300 nm 0.7 dB/km 1.0 dB/km
Minimum Bandwidth 850 nm 500 MHz x km 200 MHz x km
1300 nm 800 MHz x km 500 MHz x km
Cladding Diameter 125 ± 1.0 µm
Primary Coating Diameter 245 ± 10 µm
Conductor Non-circularity < 5%
Cladding Concentricity Error < 3.0 µm
Cladding Non-circularity < 2%

Specification Fiber Type G 50/125
Fiber Category OM3 Standard Fiber
Conductor Diameter 50 ± 3 µm
Numerical Aperture 0.200 ± 0.015
Typical Attenuation 850 nm 2.5 dB/km
1300 nm 0.5 dB/km
Minimum Bandwidth 850 nm 1500 MHz x km
1300 nm 500 MHz x km
Cladding Diameter 125 ± 1.0 µm
Primary Coating Diameter 245 ± 10 µm
Conductor Non-circularity < 5%
Cladding Concentricity Error < 3.0 µm
Cladding Non-circularity < 2%

Single-Mode Fiber
Specification Fiber Type E9...10/125 (single mode)
Fiber Category ITU-T G. 652
Attenuation 1300 nm 0.36 dB/km
1550 nm 0.22 dB/km
Dispersion 1285 - 1330 nm < 3.5 ps (nm x km)
1550 nm < 19 ps (nm x km)
Wave Length 1312 nm
Mode Field Diameter at 1310 nm 9.3 ± 0.5 µm
Cladding Diameter 125 ± 1.0 µm
Primary Coating Diameter 245 ± 10 µm
Cut-off Wave Length < 1250 nm
Cladding Concentricity Error ≤ 0.8 µm
Cladding Non-circularity < 1.0%

POF and HCS Fiber
Specification Fiber Type POF P980/1000 Fiber Type HCS K200/230
Conductor Diameter 980 µm 200 µm
Numerical Aperture 0.5 0.37
Typical Attenuation 650 nm 160 dB/km 10 dB/km
850 nm - 8 dB/km
Minimum Bandwidth 650 nm 10 MHz x 100 m 17 MHz x km
850 nm - 20 MHz x km
Wall Thickness 1000 µm 230 µm
Approvals
RoHS
Cable Construction Temperature Range
Conductor Type: Loose Tube
GPR Support Element
Strain Relief Elements: Aramide
Outer Jacket Material: PE
Laying, min.: -5°C/+23°F
Laying, max: +50°C/+122°F
Operating, min.: -20°C/-4°F
Operating, max.: +60°C/+140°F
Application
These ® fiber-optic cables are especially suitable for the underground and tube laying. A water blocking jelly filling of the loose tube and the stranding cavities ensure perfect water proofing in longitudinal direction. In addition, this cable can be equipped by a rodent protection made of polyamid (PA).
Properties
  • Not Available
Note
  • Not Available
Cable Accessories
  • Coming Soon!
