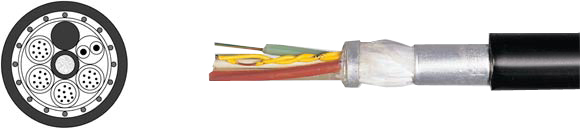

Helucom Fiber Optic Cable

Data, Network & BUS Cable: Fiber Optic Outdoor Cable Hybrid w/ Telecommunications Conductors

Acc. to DIN VDE 0888 A-DSF(L)(ZN)2Y

Hi-Tech Controls, Inc, European wires and cables

Fiber Optic Outdoor Cable Hybrid, Hi-Tech Controls, , RoHS Approved, RoHS Compliant
Part-No. Description Fibers Copper
Cond.
Outer Ø (mm) Max.
Tensile Force
Min.Stat. Bending Radius Caloric Load MJ/m Transverse Pressure N/cm (max.) Weight kg/km
No. Type
No. Ø
80495  A-DSF(L)(ZN)2Y 12 Single-Mode E9/125 2 0.6 12.0 2500 200.0 4.80 250 135.0
80497  A-DSF(L)(ZN)2Y 12 Single-Mode E9/125 4 0.6 12.0 2500 200.0 4.80 250 140.0
800753  A-DSF(L)(ZN)2Y 24 Single-Mode E9/125 2 0.6 13.1 2500 200.0 4.80 250 139.0
801182  A-DSF(L)(ZN)2Y 24 Single-Mode E9/125 4 0.6 13.1 2500 200.0

4.80

250 144.0
80501  A-DSF(L)(ZN)2Y 48 Single-Mode E9/125 2 0.6 13.1 2500 200.0 4.80 250 141.0
80503  A-DSF(L)(ZN)2Y 48 Single-Mode E9/125 4 0.6 13.1 2500 200.0 4.80 250 146.0
80504  A-DSF(L)(ZN)2Y 60 Single-Mode E9/125 2 0.6 14.1 2500 230.0 4.80 250 166.0
80506  A-DSF(L)(ZN)2Y 60 Single-Mode E9/125 4 0.6 14.1 2500 230.0 4.80 250 171.0
80507  A-DSF(L)(ZN)2Y 72 Single-Mode E9/125 2 0.6 14.8 2500 240.0 5.10 250 179.0
80509  A-DSF(L)(ZN)2Y 72 Single-Mode E9/125 4 0.6 14.8 2500 240.0 5.10 250 184.0
80510  A-DSF(L)(ZN)2Y 96 Single-Mode E9/125 2 0.6 16.6 3000 280.0 6.30 250 276.0
80512  A-DSF(L)(ZN)2Y 96 Single-Mode E9/125 4 0.6 16.6 3000 280.0 6.30 250 281.0
80513  A-DSF(L)(ZN)2Y 120 Single-Mode E9/125 2 0.6 18.4 3000 290.0 8.50 250 280.0
80515  A-DSF(L)(ZN)2Y 120 Single-Mode E9/125 4 0.6 18.4 3000 290.0 8.50 250 285.0
80516  A-DSF(L)(ZN)2Y 144 Single-Mode E9/125 2 0.6 20.3 3500 310.0 10.00 250 331.0
80518  A-DSF(L)(ZN)2Y 144 Single-Mode E9/125 4 0.6 20.3 3500 310.0 10.00 250 336.0
Technical Data
  • Corrosiveness acc. to EN 50267-2-3
  • Longitudinally water tight acc. to IEC 60794-1-2-F5
  • Cable, Laterally water tight
  • UV-resistant
Fiber Specifications
PDF Printable PDF

Granded Index Fibers (Multi-Mode)
Specification Fiber Type G 50/125 Fiber Type G 62.5/125
Fiber Category OM2 Standard Fiber OM1 Standard Fiber
Conductor Diameter 50 ± 3 µm 62.5 ± 3 µm
Numerical Aperture 0.200 ± 0.015 0.275 ± 0.015
Typical Attenuation 850 nm 2.8 dB/km 3.0 dB/km
1300 nm 0.7 dB/km 1.0 dB/km
Minimum Bandwidth 850 nm 500 MHz x km 200 MHz x km
1300 nm 800 MHz x km 500 MHz x km
Cladding Diameter 125 ± 1.0 µm
Primary Coating Diameter 245 ± 10 µm
Conductor Non-circularity < 5%
Cladding Concentricity Error < 3.0 µm
Cladding Non-circularity < 2%

Specification Fiber Type G 50/125
Fiber Category OM3 Standard Fiber OM4 Standardfibre
Conductor Diameter 50 ± 3 µm 50 ± 3 µm
Numerical Aperture 0.200 ± 0.015 0.200 ± 0.015
Typical Attenuation 850 nm 2.5 dB/km 3.0 dB/km
1300 nm 0.5 dB/km 1.0 dB/km
Minimum Bandwidth 850 nm 1500 MHz x km 3500 MHz x km
1300 nm 500 MHz x km 500 MHz x km
Cladding Diameter 125 ± 1.0 µm 125 ± 1.0 µm
Primary Coating Diameter 245 ± 10 µm 245 ± 10 µm
Conductor Non-circularity < 5% < 5%
Cladding Concentricity Error < 3.0 µm < 6.0 µm
Cladding Non-circularity < 2% < 2%

Single-Mode Fiber
Specification Fiber Type E9...10/125 (single mode)
Fiber Category ITU-T G. 652
Attenuation 1300 nm 0.36 dB/km
1550 nm 0.22 dB/km
Dispersion 1285 - 1330 nm < 3.5 ps (nm x km)
1550 nm < 19 ps (nm x km)
Wave Length 1312 nm
Mode Field Diameter at 1310 nm 9.3 ± 0.5 µm
Cladding Diameter 125 ± 1.0 µm
Primary Coating Diameter 245 ± 10 µm
Cut-off Wave Length < 1250 nm
Cladding Concentricity Error ≤ 0.8 µm
Cladding Non-circularity < 1.0%

POF and HCS Fiber
Specification Fiber Type POF P980/1000 Fiber Type HCS K200/230
Conductor Diameter 980 µm 200 µm
Numerical Aperture 0.5 0.37
Typical Attenuation 650 nm 160 dB/km 10 dB/km
850 nm - 8 dB/km
Minimum Bandwidth 650 nm 10 MHz x 100 m 17 MHz x km
850 nm - 20 MHz x km
Wall Thickness 1000 µm 230 µm
Approvals
RoHS
Cable Construction Temperature Range
Conductor Type: Buffered Fiber
GPR Support Element
Number of Fibers per Conductor: 12
Strain Relief Elements: Aramide
Aluminium Laminated Sheath
Outer Jacket Material: PE
Outer Jacket Color: Black
Laying, min.: -5°C/+23°F
Laying, max: +50°C/+122°F
Operating, min.: -25°C/-13°F
Operating, max.: +60°C/+140°F
Application
These HELUCOM® outdoor cables are designed for use under extreme environmental conditions. With the double jelly filling and the Al/PE laminated jacket, they are water proof in longitudinal and transverse direction. The welded Al tape acts as an additional vapour barrier. These cables can be layed directly in the ground, in tubes and in ducts. They are mainly used in local and long-distance networks.
Properties
  • Not Available
Note
  • Not Available
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
