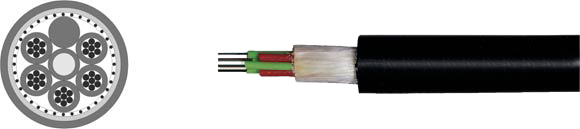

Data, Network & BUS Cable: Fiber Optic Outdoor Cable

Acc. to DIN VDE 0888 A-DF(ZN)2Y4Y

Sealcon, Inc, European & Domestic cable

Fiber Optic Outdoor Cable, Sealcon, , RoHS Approved, RoHS Compliant
Part-No. Description Fibers No. of Fibers/ Cond. Outer Ø (mm) Max.
Tensile Force
Min. Stat. Bending Radius Caloric Load MJ/m Transverse Pressure N/cm (max.) Weight kg/km
No. Type
80915  A-DF(ZN)2Y4Y 2 Multi-Mode G50/125 2 10.0 2500 100.0 6.10 400 90.0
80927  A-DF(ZN)2Y4Y 2 Multi-Mode G62.5/125 2 10.0 2700 100.0 6.10 400 90.0
80945  A-DF(ZN)2Y4Y 2 Single-Mode E9/125 2 10.0 2700 100.0 6.10 400 90.0
80735  A-DF(ZN)2Y4Y 4 Multi-Mode G50/125 4 10.0 2700 100.0 6.10 400 90.0
80928  A-DF(ZN)2Y4Y 4 Multi-Mode G62.5/125 4 10.0 2700 100.0 6.10 400 90.0
80895  A-DF(ZN)2Y4Y 4 Single-Mode E9/125 4 10.0 2700 100.0 6.10 400 90.0
80691  A-DF(ZN)2Y4Y 8 Multi-Mode G50/125 8 10.0 2700 100.0 6.10 400 90.0
80809  A-DF(ZN)2Y4Y 8 Multi-Mode G62.5/125 8 10.0 2700 100.0 6.10 400 90.0
80118  A-DF(ZN)2Y4Y 8 Single-Mode E9/125 8 10.0 2700 100.0 6.10 400 90.0
80627  A-DF(ZN)2Y4Y 12 Multi-Mode G50/125 12 10.0 2700 100.0 6.10 400 90.0
80931  A-DF(ZN)2Y4Y 12 Multi-Mode G62.5/125 12 10.0 2700 100.0 6.10 400 90.0
80947  A-DF(ZN)2Y4Y 12 Single-Mode E9/125 12 10.0 2700 100.0 6.10 400 90.0
80578  A-DF(ZN)2Y4Y 24 Multi-Mode G50/125 12 10.0 2700 100.0 6.10 400 90.0
80576  A-DF(ZN)2Y4Y 24 Multi-Mode G62.5/125 12 10.0 2700 100.0 6.10 400 90.0
80577  A-DF(ZN)2Y4Y 24 Single-Mode E9/125 12 10.0 2700 100.0 6.10 400 90.0
80672  A-DF(ZN)2Y4Y 36 Multi-Mode G50/125 12 10.0 2700 100.0 6.00 400 90.0
80935  A-DF(ZN)2Y4Y 36 Multi-Mode G62.5/125 12 10.0 2700 100.0 6.00 400 90.0
80950  A-DF(ZN)2Y4Y 36 Single-Mode E9/125 12 10.0 2700 100.0 6.00 400 90.0
80732  A-DF(ZN)2Y4Y 48 Multi-Mode G50/125 12 10.0 2700 100.0 6.00 400 90.0
80936  A-DF(ZN)2Y4Y 48 Multi-Mode G62.5/125 12 10.0 2700 100.0 6.00 400 90.0
80951  A-DF(ZN)2Y4Y 48 Single-Mode E9/125 12 10.0 2700 100.0 6.00 400 90.0
80920  A-DF(ZN)2Y4Y 60 Multi-Mode G50/125 12 10.0 2700 100.0 5.80 400 90.0
80938  A-DF(ZN)2Y4Y 60 Multi-Mode G62.5/125 12 10.0 2700 100.0 5.80 400 90.0
80921  A-DF(ZN)2Y4Y 72 Multi-Mode G50/125 12 10.5 2700 105.0 5.80 400 95.0
80939  A-DF(ZN)2Y4Y 72 Multi-Mode G62.5/125 12 10.5 2700 105.0 5.80 400 95.0
80954  A-DF(ZN)2Y4Y 72 Single-Mode E9/125 12 10.5 2700 105.0 5.80 400 95.0
80922  A-DF(ZN)2Y4Y 84 Multi-Mode G50/125 12 11.0 3000 110.0 8.40 400 110.0
80940  A-DF(ZN)2Y4Y 84 Multi-Mode G62.5/125 12 11.0 3000 110.0 8.40 400 110.0
80955  A-DF(ZN)2Y4Y 84 Single-Mode E9/125 12 11.0 3000 110.0 8.40 400 110.0
80923  A-DF(ZN)2Y4Y 96 Multi-Mode G50/125 12 11.5 3000 115.0 7.20 400 120.0
80941  A-DF(ZN)2Y4Y 96 Multi-Mode G62.5/125 12 11.5 3000 115.0 7.20 400 120.0
80956  A-DF(ZN)2Y4Y 96 Single-Mode E9/125 12 11.5 3000 115.0 7.20 400 120.0
80926  A-DF(ZN)2Y4Y 144 Multi-Mode G50/125 12 14.5 3000 145.0 10.40 400 180.0
80944  A-DF(ZN)2Y4Y 144 Multi-Mode G62.5/125 12 14.5 3000 145.0 10.40 400 180.0
80959  A-DF(ZN)2Y4Y 144 Single-Mode E9/125 12 14.5 3000 145.0 10.40 400 180.0
Technical Data
  • Corrosiveness acc. to EN 50267-2-3
  • Longitudinally water tight acc. to IEC 60794-1-2-F5
  • Cable, laterally water tight
  • UV-resistant
Fiber Specifications
PDF Printable PDF

Granded Index Fibers (Multi-Mode)
Specification Fiber Type G 50/125 Fiber Type G 62.5/125
Fiber Category OM2 Standard Fiber OM1 Standard Fiber
Conductor Diameter 50 ± 3 µm 62.5 ± 3 µm
Numerical Aperture 0.200 ± 0.015 0.275 ± 0.015
Typical Attenuation 850 nm 2.8 dB/km 3.0 dB/km
1300 nm 0.7 dB/km 1.0 dB/km
Minimum Bandwidth 850 nm 500 MHz x km 200 MHz x km
1300 nm 800 MHz x km 500 MHz x km
Cladding Diameter 125 ± 1.0 µm
Primary Coating Diameter 245 ± 10 µm
Conductor Non-circularity < 5%
Cladding Concentricity Error < 3.0 µm
Cladding Non-circularity < 2%

Specification Fiber Type G 50/125
Fiber Category OM3 Standard Fiber OM4 Standardfibre
Conductor Diameter 50 ± 3 µm 50 ± 3 µm
Numerical Aperture 0.200 ± 0.015 0.200 ± 0.015
Typical Attenuation 850 nm 2.5 dB/km 3.0 dB/km
1300 nm 0.5 dB/km 1.0 dB/km
Minimum Bandwidth 850 nm 1500 MHz x km 3500 MHz x km
1300 nm 500 MHz x km 500 MHz x km
Cladding Diameter 125 ± 1.0 µm 125 ± 1.0 µm
Primary Coating Diameter 245 ± 10 µm 245 ± 10 µm
Conductor Non-circularity < 5% < 5%
Cladding Concentricity Error < 3.0 µm < 6.0 µm
Cladding Non-circularity < 2% < 2%

Single-Mode Fiber
Specification Fiber Type E9...10/125 (single mode)
Fiber Category ITU-T G. 652
Attenuation 1300 nm 0.36 dB/km
1550 nm 0.22 dB/km
Dispersion 1285 - 1330 nm < 3.5 ps (nm x km)
1550 nm < 19 ps (nm x km)
Wave Length 1312 nm
Mode Field Diameter at 1310 nm 9.3 ± 0.5 µm
Cladding Diameter 125 ± 1.0 µm
Primary Coating Diameter 245 ± 10 µm
Cut-off Wave Length < 1250 nm
Cladding Concentricity Error ≤ 0.8 µm
Cladding Non-circularity < 1.0%

POF and HCS Fiber
Specification Fiber Type POF P980/1000 Fiber Type HCS K200/230
Conductor Diameter 980 µm 200 µm
Numerical Aperture 0.5 0.37
Typical Attenuation 650 nm 160 dB/km 10 dB/km
850 nm - 8 dB/km
Minimum Bandwidth 650 nm 10 MHz x 100 m 17 MHz x km
850 nm - 20 MHz x km
Wall Thickness 1000 µm 230 µm
Approvals
RoHS
Cable Construction Temperature Range
Conductor Type: Buffered Fiber
GPR Support Element
Strain Relief Elements: Aramide
Type of Armoring: PA Jacket
Inner Jacket Material: PE
Outer Jacket Material: PA
Outer Jacket Color: Black
Laying, min.: -5°C/+23°F
Laying, max: +50°C/+122°F
Operating, min.: -20°C/-4°F
Operating, max.: +60°C/+140°F
Application
These ® fiber-optic cables are characterized by a stranded construction with jelly filling. They are made waterproof in longitudinal direction by filling a jelly mass into the stranding cavities. Non-metallic tension elements and a second outer jacket made of polyamide (PA) ensure above average strain relief and rodent protection. This construction is particularly used in the area of telecommunication and long distance, but also in regular channels and tubes where rodent infestation is possible.
Properties
  • Not Available
Note
  • Not Available
Cable Accessories
  • Coming Soon!
