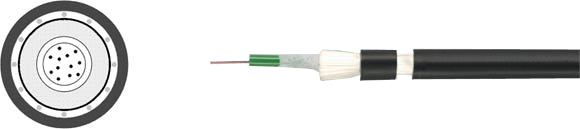

Data, Network & BUS Cable: Fiber Optic Indoor / Outdoor Cable

Acc. to DIN VDE 0888 A/I-DQ(ZN)BH

Hi-Tech Controls, Inc, European wires and cables

Fiber Optic Indoor/Outdoor Cable, Hi-Tech Controls, , RoHS Approved, RoHS Compliant
Part-No. Description Fibers No. of Fibers/ Cond. Outer Ø(mm) Max.
Tensile Force
Min. Stat. Bending Radius Caloric Load MJ/m Transverse Pressure N/cm (max.) Weight kg/km
No. Type
82792  A/I-DQ(ZN)BH 4 Multi-Mode G50/125 4 7.5 1500 150.0 1.10 300 55.0
82796  A/I-DQ(ZN)BH 4 Multi-Mode G62.5/125 4 7.5 1500 150.0 1.10 300 55.0
82800  A/I-DQ(ZN)BH 4 Single-Mode E9/125 4 7.5 1500 150.0 1.10 300 55.0
82793  A/I-DQ(ZN)BH 6 Multi-Mode G50/125 6 7.5 1500 150.0 1.10 300 55.0
82797  A/I-DQ(ZN)BH 6 Multi-Mode G62.5/125 6 7.5 1500 150.0 1.10 300 55.0
82801  A/I-DQ(ZN)BH 6 Single-Mode E9/125 6 7.5 1500 150.0 1.10 300 55.0
82794  A/I-DQ(ZN)BH 8 Multi-Mode G50/125 8 7.5 1500 150.0 1.10 300 55.0
82798  A/I-DQ(ZN)BH 8 Multi-Mode G62.5/125 8 7.5 1500 150.0 1.10 300 55.0
82802  A/I-DQ(ZN)BH 8 Single-Mode E9/125 8 7.5 1500 150.0 1.10 300 55.0
82795  A/I-DQ(ZN)BH 12 Multi-Mode G50/125 12 7.5 1500 150.0 1.10 300 55.0
82799  A/I-DQ(ZN)BH 12 Multi-Mode G62.5/125 12 7.5 1500 150.0 1.10 300 55.0
82803  A/I-DQ(ZN)BH 12 Single-Mode E9/125 12 7.5 1500 150.0 1.10 300 55.0
802143  A/I-DQ(ZN)BH 24 Multi-Mode G50/125 24 8.5 1500

170.0

1.40 300 75.0
802144  A/I-DQ(ZN)BH 24 Multi-Mode G62.5/125 24 8.5 1500 170.0 1.40 300 75.0

802145

 A/I-DQ(ZN)BH 24 Single-Mode E9/125 24 8.5 1500 170.0 1.40 300 75.0
  • Corrosiveness acc. to EN 50267-2-3
  • Halogen-free acc. to 60754-2
  • Flame-resistance acc. to IEC 60332-1
  • Smoke Density acc. to IEC 61034
  • Longitudinally water tight acc. to IEC 60794-1-2-F5
  • UV-resistant
Fiber Specifications
PDF Printable PDF

Granded Index Fibers (Multi-Mode)
Specification Fiber Type G 50/125 Fiber Type G 62.5/125
Fiber Category OM2 Standard Fiber OM1 Standard Fiber
Conductor Diameter 50 ± 3 µm 62.5 ± 3 µm
Numerical Aperture 0.200 ± 0.015 0.275 ± 0.015
Typical Attenuation 850 nm 2.8 dB/km 3.0 dB/km
1300 nm 0.7 dB/km 1.0 dB/km
Minimum Bandwidth 850 nm 500 MHz x km 200 MHz x km
1300 nm 800 MHz x km 500 MHz x km
Cladding Diameter 125 ± 1.0 µm
Primary Coating Diameter 245 ± 10 µm
Conductor Non-circularity < 5%
Cladding Concentricity Error < 3.0 µm
Cladding Non-circularity < 2%

Specification Fiber Type G 50/125
Fiber Category OM3 Standard Fiber OM4 Standardfibre
Conductor Diameter 50 ± 3 µm 50 ± 3 µm
Numerical Aperture 0.200 ± 0.015 0.200 ± 0.015
Typical Attenuation 850 nm 2.5 dB/km 3.0 dB/km
1300 nm 0.5 dB/km 1.0 dB/km
Minimum Bandwidth 850 nm 1500 MHz x km 3500 MHz x km
1300 nm 500 MHz x km 500 MHz x km
Cladding Diameter 125 ± 1.0 µm 125 ± 1.0 µm
Primary Coating Diameter 245 ± 10 µm 245 ± 10 µm
Conductor Non-circularity < 5% < 5%
Cladding Concentricity Error < 3.0 µm < 6.0 µm
Cladding Non-circularity < 2% < 2%

Single-Mode Fiber
Specification Fiber Type E9...10/125 (single mode)
Fiber Category ITU-T G. 652
Attenuation 1300 nm 0.36 dB/km
1550 nm 0.22 dB/km
Dispersion 1285 - 1330 nm < 3.5 ps (nm x km)
1550 nm < 19 ps (nm x km)
Wave Length 1312 nm
Mode Field Diameter at 1310 nm 9.3 ± 0.5 µm
Cladding Diameter 125 ± 1.0 µm
Primary Coating Diameter 245 ± 10 µm
Cut-off Wave Length < 1250 nm
Cladding Concentricity Error ≤ 0.8 µm
Cladding Non-circularity < 1.0%

POF and HCS Fiber
Specification Fiber Type POF P980/1000 Fiber Type HCS K200/230
Conductor Diameter 980 µm 200 µm
Numerical Aperture 0.5 0.37
Typical Attenuation 650 nm 160 dB/km 10 dB/km
850 nm - 8 dB/km
Minimum Bandwidth 650 nm 10 MHz x 100 m 17 MHz x km
850 nm - 20 MHz x km
Wall Thickness 1000 µm 230 µm
Approvals
RoHS
Cable Construction Temperature Range
Conductor Type: Buffered Fiber
Strain Relief Elements: Type 1 - Aramide
  Type 2 - Glass Yarns
Type of Armoring: Glass Yarns
Outer Jacket Material: FRNC
Outer Jacket Color: Black
Laying, min.: -5°C/+23°F
Laying, max: +50°C/+122°F
Operating, min.: -20°C/+68°F
Operating, max.: +60°C/+140°F
Application
These ® fiber-optic cables are available either as central bundle conductor cable or as stranded versions (on request). They are suitable for indoor and outdoor cabling of buildings and facilities. They are used in particular if the installation is to be done in one piece from the inside to the outside without additional use of couplings. With their black UV-resistant outer jacket and the non-metallic rodent protection, they are perfectly suited for outdoor use. The halogen-free outer jacket makes installation indoors possible without any problems. To adapt to different mechanical requirements, you can select among tensile forces from 1400N to 3000N.
