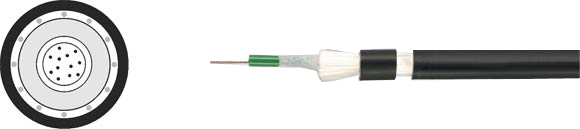

Data, Network & BUS Cable: Fiber Optic Universal Cable Industry HCS

Acc. to DIN VDE 0888 A/I-DQ(ZN)BH

Sealcon, Inc, European & Domestic cable

Fiber Optic Universal Cable Industry HCS, Sealcon, , RoHS Approved, RoHS Compliant
Part-No. Description Fibers No.of Fibers/ Cond. Outer Ø(mm) Max.
Tensile Force
Min. Stat. Bending Radius Caloric Load MJ/m Transverse Pressure N/cm (max.) Weight kg/km
No. Type
801198  A/I-DQ(ZN)BH 4 HCS 200/230 4 8.5 1500 130.0 2.00 150 76.0
802001  A/I-DQ(ZN)BH 8 HCS 200/230 8 8.5 1500 130.0 2.00 150 79.0
802002  A/I-DQ(ZN)BH 12 HCS 200/230 12 8.5 1500 130.0 2.00 150 82.0
802003  A/I-DQ(ZN)BH 24 HCS 200/230 8 17.7 6000 265.0 3.20 300 280.0
802004  A/I-DQ(ZN)BH 48 HCS 200/230 8 18.9 6000 285.0 3.20 300 355.0
  • Corrosiveness acc. to EN50267-2-3
  • Halogen-free acc. to 60754-2
  • Flame-resistance acc. to IEC 60332-1
  • Smoke density acc. to IEC 61034
  • Longitudinally water-tight acc. to IEC 60794-1-2-F5
  • UV-resistant
Fiber Specifications
PDF Printable PDF

Granded Index Fibers (Multi-Mode)
Specification Fiber Type G 50/125 Fiber Type G 62.5/125
Fiber Category OM2 Standard Fiber OM1 Standard Fiber
Conductor Diameter 50 ± 3 µm 62.5 ± 3 µm
Numerical Aperture 0.200 ± 0.015 0.275 ± 0.015
Typical Attenuation 850 nm 2.8 dB/km 3.0 dB/km
1300 nm 0.7 dB/km 1.0 dB/km
Minimum Bandwidth 850 nm 500 MHz x km 200 MHz x km
1300 nm 800 MHz x km 500 MHz x km
Cladding Diameter 125 ± 1.0 µm
Primary Coating Diameter 245 ± 10 µm
Conductor Non-circularity < 5%
Cladding Concentricity Error < 3.0 µm
Cladding Non-circularity < 2%

Specification Fiber Type G 50/125
Fiber Category OM3 Standard Fiber OM4 Standardfibre
Conductor Diameter 50 ± 3 µm 50 ± 3 µm
Numerical Aperture 0.200 ± 0.015 0.200 ± 0.015
Typical Attenuation 850 nm 2.5 dB/km 3.0 dB/km
1300 nm 0.5 dB/km 1.0 dB/km
Minimum Bandwidth 850 nm 1500 MHz x km 3500 MHz x km
1300 nm 500 MHz x km 500 MHz x km
Cladding Diameter 125 ± 1.0 µm 125 ± 1.0 µm
Primary Coating Diameter 245 ± 10 µm 245 ± 10 µm
Conductor Non-circularity < 5% < 5%
Cladding Concentricity Error < 3.0 µm < 6.0 µm
Cladding Non-circularity < 2% < 2%

Single-Mode Fiber
Specification Fiber Type E9...10/125 (single mode)
Fiber Category ITU-T G. 652
Attenuation 1300 nm 0.36 dB/km
1550 nm 0.22 dB/km
Dispersion 1285 - 1330 nm < 3.5 ps (nm x km)
1550 nm < 19 ps (nm x km)
Wave Length 1312 nm
Mode Field Diameter at 1310 nm 9.3 ± 0.5 µm
Cladding Diameter 125 ± 1.0 µm
Primary Coating Diameter 245 ± 10 µm
Cut-off Wave Length < 1250 nm
Cladding Concentricity Error ≤ 0.8 µm
Cladding Non-circularity < 1.0%

POF and HCS Fiber
Specification Fiber Type POF P980/1000 Fiber Type HCS K200/230
Conductor Diameter 980 µm 200 µm
Numerical Aperture 0.5 0.37
Typical Attenuation 650 nm 160 dB/km 10 dB/km
850 nm - 8 dB/km
Minimum Bandwidth 650 nm 10 MHz x 100 m 17 MHz x km
850 nm - 20 MHz x km
Wall Thickness 1000 µm 230 µm
Approvals
RoHS
Cable Construction Temperature Range
Conductor Type: Buffered Fiber
Type of Armoring: Glass Yarns
Strain Relief Elements: Glass Yarns
Outer Jacket Material: FR/LSOH
Outer Jacket Color: Black
Laying, min.: -5°C/+23°F
Laying, max: +50°C/+122°F
Operating, min.: -20°C/-4°F
Operating, max.: +70°C/+158°F
Application
These ® fiber-optic cables are available either as central bundle conductor cable or as stranded versions. They are suitable for fixed indoor and outdoor cabling of buildings and industry facilities. They are used in particular if the installation is to be done in one piece from the inside to the outside without additional use of couplings. With their black UV-resistant outer jacket and the non-metallic rodent protection, they are perfectly suited for outdoor use. The halogen-free outer jacket makes installation inhouse possible without any problems.
Properties
  • Not Available
Note
  • Not Available
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
