Helucom Fiber Optic Cable

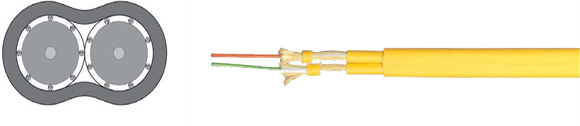

European Data, Network & BUS Cable: Fiber Optic Indoor Cables (Patch Cord)

Acc. to DIN VDE 0888 I-VH, I-V11Y, I-VHH, I-V11Y11Y

Hi-Tech Controls, Inc, European wires and cables

Fiber Optic Indoor Cables (Patch Cord), Hi-Tech Controls, European  , RoHS Approved, RoHS Compliant
European Part-No. Description Fibers Outer Ø in mm Max.
Tensile Force
Min. Stat. Bending Radius Caloric Load MJ/m Transverse Pressure N/cm (max.) Weight kg/km
No. Type
80783  I-VH 1 Multi-Mode G50/125 2.6 300 40.0 0.17 10 8.7
80782  I-VH 1 Multi-Mode G62.5/125 2.6 300 40.0 0.17 10 8.7
80784  I-VH 1 Single-Mode E9/125 2.6 300 40.0 0.17 10 8.7
80316  I-VH 2 Multi-Mode G50/125 2.6 x 5.6 400 40.0 0.34 10 17.5
80699  I-VH 2 Multi-Mode G62.5/125 2.6 x 5.6 400 40.0 0.34 10 17.5
80785  I-VH 2 Single-Mode E9/125 2.6 x 5.6 400 40.0 0.34 10 17.5
82408  I-V11Y 2 Multi-Mode G50/125 2.6 x 5.6 400 40.0 2.80 20 14.0
82410  I-V11Y 2 Multi-Mode G62.5/125 2.6 x 5.6 400 40.0 2.80 20 14.0
82411  I-V11Y 2 Single-Mode E9/125 2.6 x 5.6 400 40.0 2.80 20 14.0
80789  I-VHH 2 Multi-Mode G50/125 3.6 x 6.2 600 50.0 0.52 20 20.0
80790  I-VHH 2 Multi-Mode G62.5/125 3.6 x 6.2 600 50.0 0.52 20 20.0
80791  I-VHH 2 Single-Mode E9/125 3.6 x 6.2 600 50.0 0.52 20 20.0
82409  I-V11Y11Y 2 Multi-Mode G50/125 3.6 x 6.2 600 60.0 4.20 20 16.0
81900  I-V11Y11Y 2 Multi-Mode G62.5/125 3.6 x 6.2 600 60.0 4.20 20 16.0
82412  I-V11Y11Y 2 Single-Mode E9/125 3.6 x 6.2 600 60.0 4.20 20 16.0
Technical Data European
  • Corrosiveness acc. to EN 50267-2-3
  • Halogen-free acc. to 60754-2
  • Flame-resistance acc. to IEC 60332-1
  • Smoke Density acc. to IEC 61034
Fiber Specifications
PDF Printable PDF

Granded Index Fibers (Multi-Mode)
Specification Fiber Type G 50/125 Fiber Type G 62.5/125
Fiber Category OM2 Standard Fiber OM1 Standard Fiber
Conductor Diameter 50 ± 3 µm 62.5 ± 3 µm
Numerical Aperture 0.200 ± 0.015 0.275 ± 0.015
Typical Attenuation 850 nm 2.8 dB/km 3.0 dB/km
1300 nm 0.7 dB/km 1.0 dB/km
Minimum Bandwidth 850 nm 500 MHz x km 200 MHz x km
1300 nm 800 MHz x km 500 MHz x km
Cladding Diameter 125 ± 1.0 µm
Primary Coating Diameter 245 ± 10 µm
Conductor Non-circularity < 5%
Cladding Concentricity Error < 3.0 µm
Cladding Non-circularity < 2%

Specification Fiber Type G 50/125
Fiber Category OM3 Standard Fiber OM4 Standardfibre
Conductor Diameter 50 ± 3 µm 50 ± 3 µm
Numerical Aperture 0.200 ± 0.015 0.200 ± 0.015
Typical Attenuation 850 nm 2.5 dB/km 3.0 dB/km
1300 nm 0.5 dB/km 1.0 dB/km
Minimum Bandwidth 850 nm 1500 MHz x km 3500 MHz x km
1300 nm 500 MHz x km 500 MHz x km
Cladding Diameter 125 ± 1.0 µm 125 ± 1.0 µm
Primary Coating Diameter 245 ± 10 µm 245 ± 10 µm
Conductor Non-circularity < 5% < 5%
Cladding Concentricity Error < 3.0 µm < 6.0 µm
Cladding Non-circularity < 2% < 2%

Single-Mode Fiber
Specification Fiber Type E9...10/125 (single mode)
Fiber Category ITU-T G. 652
Attenuation 1300 nm 0.36 dB/km
1550 nm 0.22 dB/km
Dispersion 1285 - 1330 nm < 3.5 ps (nm x km)
1550 nm < 19 ps (nm x km)
Wave Length 1312 nm
Mode Field Diameter at 1310 nm 9.3 ± 0.5 µm
Cladding Diameter 125 ± 1.0 µm
Primary Coating Diameter 245 ± 10 µm
Cut-off Wave Length < 1250 nm
Cladding Concentricity Error ≤ 0.8 µm
Cladding Non-circularity < 1.0%

POF and HCS Fiber
Specification Fiber Type POF P980/1000 Fiber Type HCS K200/230
Conductor Diameter 980 µm 200 µm
Numerical Aperture 0.5 0.37
Typical Attenuation 650 nm 160 dB/km 10 dB/km
850 nm - 8 dB/km
Minimum Bandwidth 650 nm 10 MHz x 100 m 17 MHz x km
850 nm - 20 MHz x km
Wall Thickness 1000 µm 230 µm
Approvals
RoHS
Cable Construction Temperature Range European
Conductor Type: Tight Buffer
Strain Relief Elements: Aramide
Outer Jacket Material: FRNC
Outer Jacket Color: Yellow

Inner Cable Type:
  • I-VH: Simplex
  • I-V11Y, I-VHH, I-V11Y11Y: Duplex
Laying, min.: -0°C/+32°F
Laying, max: +50°C/+122°F
Operating, min.: -0°C/+32°F
Operating, max.: +60°C/+140°F
Application
These HELUCOM® one-fiber and two-fiber (duplex) cables are used for fixed indoor installation, such as in cable ducts. These cables are also used as ready-made cables (pigtails) that are spliced to fixed cables or as connection cables (jumper cable) as well as for switch frames. The small diameter and the high flexibility make these cables ideal for the application in switch frames as well as for the connection of terminals.
Properties
  • Not Available
Note
  • Not Available
Cable Accessories
  • Coming Soon!
