Data, Network & BUS Cable:
Aerial Fiber Optic Cable

Hi-Tech Controls, Inc, European wires and cables

  ADSS

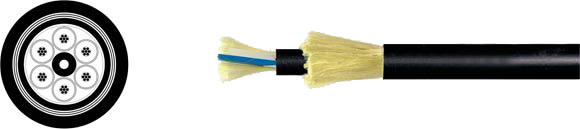

Aerial Fiber Optic Cable, Hi-Tech Controls, , RoHS Approved, RoHS Compliant
Part-No. Description Fibers No. of Fibers/ Cond. Outer Ø (mm) Max.
Tensile Force
Min. Stat. Bending Radius Span Width m Additional Load daN/m Weight kg/km
No. Type
82390  ADSS 9 12 Single-Mode E9/125 4 13.6 9 410.0 150 0.5 135.0
82391  ADSS 9 24 Single-Mode E9/125 4 13.6 9 410.0 150 0.5 137.0
82392  ADSS 9 36 Single-Mode E9/125 6 15.6 9 470.0 150 0.5 177.0
82393  ADSS 9 48 Single-Mode E9/125 8 15.6 9 470.0 150 0.5 178.0
82394  ADSS 9 60 Single-Mode E9/125 12 15.0 9 450.0 150 0.5 161.0
82395  ADSS 9 144 Single-Mode E9/125 12 20.8 9 630.0 150 0.5 316.0

82396  ADSS 16 12 Single-Mode E9/125 4 14.4 16 430.0 350 0.3 162.0
82397  ADSS 16 24 Single-Mode E9/125 4 14.4 16 430.0 350 0.3 165.0
82398  ADSS 16 36 Single-Mode E9/125 6 16.4 16 500.0 350 0.3 200.0
82399  ADSS 16 48 Single-Mode E9/125 8 16.4 16 500.0 350 0.3 201.0
82400  ADSS 16 60 Single-Mode E9/125 12 15.8 16 480.0 350 0.3 184.0
82401  ADSS 16 144 Single-Mode E9/125 12 21.6 16 650.0 350 0.3 333.0

82402  ADSS 35 12 Single-Mode E9/125 4 17.2 35 520.0 700 0.35 198.0
82403  ADSS 35 24 Single-Mode E9/125 4 17.2 35 520.0 700 0.35 200.0
82404  ADSS 35 36 Single-Mode E9/125 6 19.2 35 580.0 700 0.35 240.0
82405  ADSS 35 48 Single-Mode E9/125 8 19.2 35 580.0 700 0.35 241.0
82406  ADSS 35 60 Single-Mode E9/125 12 18.6 35 560.0 700 0.35 227.0
82407  ADSS 35 144 Single-Mode E9/125 12 24.4 35 730.0 700 0.35 381.0
Technical Data
  • Sag at +25°C/-13°F ADSS 9: 2.0m
    Sag at +25°C/-13°F ADSS 16: 4.5m
    Sag at +25°C/-13°F ADSS 35: 9.5m
  • Longitudinally water tight acc. to IEC 60794-1-2-F5
  • Cable, laterally water-tight
  • UV-resistant
Fiber Specifications
PDF Printable PDF

Granded Index Fibers (Multi-Mode)
Specification Fiber Type G 50/125 Fiber Type G 62.5/125
Fiber Category OM2 Standard Fiber OM1 Standard Fiber
Conductor Diameter 50 ± 3 µm 62.5 ± 3 µm
Numerical Aperture 0.200 ± 0.015 0.275 ± 0.015
Typical Attenuation 850 nm 2.8 dB/km 3.0 dB/km
1300 nm 0.7 dB/km 1.0 dB/km
Minimum Bandwidth 850 nm 500 MHz x km 200 MHz x km
1300 nm 800 MHz x km 500 MHz x km
Cladding Diameter 125 ± 1.0 µm
Primary Coating Diameter 245 ± 10 µm
Conductor Non-circularity < 5%
Cladding Concentricity Error < 3.0 µm
Cladding Non-circularity < 2%

Specification Fiber Type G 50/125
Fiber Category OM3 Standard Fiber OM4 Standardfibre
Conductor Diameter 50 ± 3 µm 50 ± 3 µm
Numerical Aperture 0.200 ± 0.015 0.200 ± 0.015
Typical Attenuation 850 nm 2.5 dB/km 3.0 dB/km
1300 nm 0.5 dB/km 1.0 dB/km
Minimum Bandwidth 850 nm 1500 MHz x km 3500 MHz x km
1300 nm 500 MHz x km 500 MHz x km
Cladding Diameter 125 ± 1.0 µm 125 ± 1.0 µm
Primary Coating Diameter 245 ± 10 µm 245 ± 10 µm
Conductor Non-circularity < 5% < 5%
Cladding Concentricity Error < 3.0 µm < 6.0 µm
Cladding Non-circularity < 2% < 2%

Single-Mode Fiber
Specification Fiber Type E9...10/125 (single mode)
Fiber Category ITU-T G. 652
Attenuation 1300 nm 0.36 dB/km
1550 nm 0.22 dB/km
Dispersion 1285 - 1330 nm < 3.5 ps (nm x km)
1550 nm < 19 ps (nm x km)
Wave Length 1312 nm
Mode Field Diameter at 1310 nm 9.3 ± 0.5 µm
Cladding Diameter 125 ± 1.0 µm
Primary Coating Diameter 245 ± 10 µm
Cut-off Wave Length < 1250 nm
Cladding Concentricity Error ≤ 0.8 µm
Cladding Non-circularity < 1.0%

POF and HCS Fiber
Specification Fiber Type POF P980/1000 Fiber Type HCS K200/230
Conductor Diameter 980 µm 200 µm
Numerical Aperture 0.5 0.37
Typical Attenuation 650 nm 160 dB/km 10 dB/km
850 nm - 8 dB/km
Minimum Bandwidth 650 nm 10 MHz x 100 m 17 MHz x km
850 nm - 20 MHz x km
Wall Thickness 1000 µm 230 µm
Approvals
RoHS
Cable Construction Temperature Range
Conductor Type: Loose Tube
GPR Support Element
Strain Relief Elements: Aramide
Inner Jacket Material: PE
Outer Jacket Material: PE
Outer Jacket Color: Black
Laying, min.: -10°C/+14°F
Laying, max: +60°C/+140°F
Operating, min.: -25°C/-13°F
Operating, max.: +70°C/+158°F
Application
These ® outdoor cables designed as aerial cables for freely suspended installations on posts and masts. The construction is waterproof in longitudinal direction thanks to the use of jelly-filled bundle conductors and swelling tape. The outer jacket is UV-resistant and at the same time provides protection against environmental influences, such as snow, ice, sun isolation and wind.
Properties
  • Not Available
Note
  • Not Available
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
