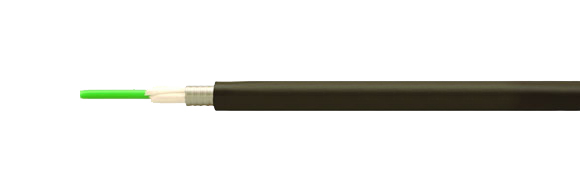

Data, Network & BUS Cable: Fiber Optic Outdoor Cable

Steel Armoured A-DQ(ZN)(SR)2Y

Sealcon, Inc, European & Domestic cable

Fiber Optic Outdoor Cable, Sealcon, , RoHS Approved, RoHS Compliant
Part-No. Description Fibers No. of Fibers/ Cond. Outer Ø (mm) Max.
Tensile Force
Min. Stat. Bending Radius Caloric Load MJ/m Transverse Pressure N/cm (max.) Weight kg/km
No. Type
802917 A-DQ(ZN)SR2Y 4 Multi-mode G50/125 4 9.5 1500 95.0 2.00 500 115.0
803925 A-DQ(ZN)SR2Y 4 Multi-mode G62.5/125 4 9.5 1500 95.0 2.00 500 115.0
803927 A-DQ(ZN)SR2Y 4 Single-mode E9/125 4 9.5 1500 95.0 2.00 500 105.0
802918 A-DQ(ZN)SR2Y 12 Multi-mode G50/125 12 9.5 1500 95.0 2.00 500 115.0
803926 A-DQ(ZN)SR2Y 12 Multi-mode G62.5/125 12 9.5 1500 95.0 2.00 500 115.0
803928 A-DQ(ZN)SR2Y 12 Single-mode E9/125 12 9.5 1500 95.0 2.00 500 115.0
Fiber Specifications
PDF Printable PDF

Granded Index Fibers (Multi-Mode)
Specification Fiber Type G 50/125 Fiber Type G 62.5/125
Fiber Category OM2 Standard Fiber OM1 Standard Fiber
Conductor Diameter 50 ± 3 µm 62.5 ± 3 µm
Numerical Aperture 0.200 ± 0.015 0.275 ± 0.015
Typical Attenuation 850 nm 2.8 dB/km 3.0 dB/km
1300 nm 0.7 dB/km 1.0 dB/km
Minimum Bandwidth 850 nm 500 MHz x km 200 MHz x km
1300 nm 800 MHz x km 500 MHz x km
Cladding Diameter 125 ± 1.0 µm
Primary Coating Diameter 245 ± 10 µm
Conductor Non-circularity < 5%
Cladding Concentricity Error < 3.0 µm
Cladding Non-circularity < 2%

Specification Fiber Type G 50/125
Fiber Category OM3 Standard Fiber
Conductor Diameter 50 ± 3 µm
Numerical Aperture 0.200 ± 0.015
Typical Attenuation 850 nm 2.5 dB/km
1300 nm 0.5 dB/km
Minimum Bandwidth 850 nm 1500 MHz x km
1300 nm 500 MHz x km
Cladding Diameter 125 ± 1.0 µm
Primary Coating Diameter 245 ± 10 µm
Conductor Non-circularity < 5%
Cladding Concentricity Error < 3.0 µm
Cladding Non-circularity < 2%

Single-Mode Fiber
Specification Fiber Type E9...10/125 (single mode)
Fiber Category ITU-T G. 652
Attenuation 1300 nm 0.36 dB/km
1550 nm 0.22 dB/km
Dispersion 1285 - 1330 nm < 3.5 ps (nm x km)
1550 nm < 19 ps (nm x km)
Wave Length 1312 nm
Mode Field Diameter at 1310 nm 9.3 ± 0.5 µm
Cladding Diameter 125 ± 1.0 µm
Primary Coating Diameter 245 ± 10 µm
Cut-off Wave Length < 1250 nm
Cladding Concentricity Error ≤ 0.8 µm
Cladding Non-circularity < 1.0%

POF and HCS Fiber
Specification Fiber Type POF P980/1000 Fiber Type HCS K200/230
Conductor Diameter 980 µm 200 µm
Numerical Aperture 0.5 0.37
Typical Attenuation 650 nm 160 dB/km 10 dB/km
850 nm - 8 dB/km
Minimum Bandwidth 650 nm 10 MHz x 100 m 17 MHz x km
850 nm - 20 MHz x km
Wall Thickness 1000 µm 230 µm
Approvals
RoHS
Cable Construction Temperature Range
Core Type: Loose Tube
Strain Relief Element: Glass Yarns
Type Of Armoring: Steel Rib
Outer Jacket Material: PE
Outer Jacket Color: Black
Laying, min.: --5°C/-23°F
Laying, max: +50°C/+122°F
Operating, min.: -20°C/-4°F
Operating, max.: +70°C/+158°F
Application
These ® fiber-optic cables are characterized by a compact construction with a swelling fleece. Above-average rodent protection is achieved with the metallic rodent protection (steel groove) and an outer jacket made of PE. This construction is particularly used in the area of telecommunication and long distance, but also in regular channels and tubes where rodent infestation is possible.
Properties
  • Not Available
Note
  • Not Available
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
