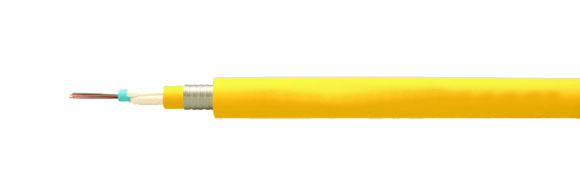

Data, Network & BUS Cable:
Fiber Optic Cable with Functional Integrity
Based on IEC 60794-1-2-F5
A/I-D(ZN)BH(SR)H IEC
Sealcon, Inc, European & Domestic cable
Part-No.
Description
Fibers
No.
of Fibers Per Core
Outer Ø (mm)
Max.
Tensile Force
Min.
Stat. Bending Radius
Caloric
Load MJ/m
Transverse
Pressure N/cm (max.)
Weight
kg/km
No.
Type
803917
A/I-D(ZN)BH(SR)H
4
Multi-Mode
G50/125
4
12.7
700
180.0
6.20
300
216.0
803919
A/I-D(ZN)BH(SR)H
4
Single-Mode
E9/125
4
12.7
700
180.0
6.20
300
216.0
803918
A/I-D(ZN)BH(SR)H
12
Multi-Mode
G50/125
12
12.7
700
180.0
6.20
300
216.0
803920
A/I-D(ZN)BH(SR)H
12
Single-Mode
E9/125
12
12.7
700
180.0
6.20
300
216.0
Corrosiveness acc. to EN 50267-2-3
Halogen-free acc. to 60754-2
Flame-resistance acc. to IEC 60332-1 and -3
Smoke Density acc. to IEC 61034
Longitudinally water tight acc. to
IEC 60794-1-2-F5
UV-resistant
Functional Integrity: IEC 60794 / IEC 60331-25
Fiber
Specifications
Granded
Index Fibers (Multi-Mode)
Specification
Fiber
Type G 50/125
Fiber
Type G 62.5/125
Fiber Category
OM2 Standard
Fiber
OM1 Standard
Fiber
Conductor Diameter
50 ± 3 µm
62.5 ± 3 µm
Numerical Aperture
0.200 ± 0.015
0.275 ± 0.015
Typical
Attenuation
850
nm
2.8 dB/km
3.0 dB/km
1300 nm
0.7 dB/km
1.0 dB/km
Minimum Bandwidth
850 nm
500 MHz x
km
200 MHz x
km
1300 nm
800 MHz x
km
500 MHz x
km
Cladding Diameter
125 ± 1.0 µm
Primary Coating
Diameter
245 ± 10 µm
Conductor Non-circularity
< 5%
Cladding Concentricity
Error
< 3.0 µm
Cladding Non-circularity
< 2%
Specification
Fiber
Type G 50/125
Fiber Category
OM3
Standard Fiber
OM4 Standardfibre
Conductor Diameter
50 ± 3 µm
50 ± 3 µm
Numerical Aperture
0.200 ± 0.015
0.200 ± 0.015
Typical Attenuation
850 nm
2.5
dB/km
3.0
dB/km
1300 nm
0.5
dB/km
1.0 dB/km
Minimum Bandwidth
850 nm
1500
MHz x km
3500 MHz x km
1300 nm
500
MHz x km
500 MHz x km
Cladding Diameter
125 ± 1.0 µm
125 ± 1.0 µm
Primary Coating
Diameter
245 ± 10 µm
245 ± 10 µm
Conductor Non-circularity
< 5%
< 5%
Cladding Concentricity
Error
< 3.0 µm
< 6.0 µm
Cladding Non-circularity
< 2%
< 2%
Single-Mode
Fiber
Specification
Fiber
Type E9...10/125 (single mode)
Fiber Category
ITU-T G.
652
Attenuation
1300
nm
0.36 dB/km
1550 nm
0.22 dB/km
Dispersion
1285 - 1330
nm
< 3.5
ps (nm x km)
1550 nm
< 19 ps
(nm x km)
Wave Length
1312 nm
Mode Field Diameter
at 1310 nm
9.3 ± 0.5 µm
Cladding Diameter
125 ± 1.0 µm
Primary Coating
Diameter
245 ± 10 µm
Cut-off Wave
Length
< 1250
nm
Cladding Concentricity
Error
≤ 0.8 µm
Cladding Non-circularity
< 1.0%
POF and HCS
Fiber
Specification
Fiber
Type POF P980/1000
Fiber
Type HCS K200/230
Conductor Diameter
980 µm
200 µm
Numerical Aperture
0.5
0.37
Typical Attenuation
650 nm
160 dB/km
10 dB/km
850 nm
-
8 dB/km
Minimum Bandwidth
650 nm
10 MHz x
100 m
17 MHz x
km
850 nm
-
20 MHz x
km
Wall Thickness
1000 µm
230 µm
Cable
Construction
Temperature
Range
CoreType:
Loose Tube
Strain Relief Elements:
Glass Yarn
Type of Armoring:
Steel Tape
Outer Jacket Material:
FR/LSOH
Outer Jacket Color:
Yellow
Laying,
min.:
-5°C/+23°F
Laying,
max:
+50°C/+122°F
Operating,
min.:
-20°C/-4°F
Operating,
max.:
+70°C/+158°F
With the series ® FS90 we have realized, based on a special construction and high quality raw materials, a functional integrity according to IEC 60331-25 within 90, minutes (up to 750°C). Together with the planed accessories the cables realize the full function of the communication in areas like tunnels or buildings for the defined period of time. On request we also can deliver cables with more than 12 fiber as stranded construction.
