flexible, oil-resistant, open installation (TC-ER), NFPA 79 Edition 2012
Sealcon, Inc, European & Domestic cable
Part-No.
No. Conductors x
cross-sec. mm2
Outer
Diameter
mm
Copper
Weight
kg/km
Weight
ca. kg/km
AWG
66820
4 X 1
8.4
39.0
103.0
18
66821
4 G 1.32
9.2
51.0
133.0
16
66822
4 G 20.8
10.0
80.0
170.0
14
66823
4 G 3.31
11.2
127.0
229.0
12
66824
4 G 6
15.2
230.0
393.0
10
66825
4 G 10
19.3
384.0
626.0
8
66826
4 G 13
22.4
614.0
885.0
6
66827
4 G 25
26.7
960.0
1301.0
4
66828
4 G 35
31.5
1344.0
1983.0
2
66829
4 X 1
9.8
52.0
133.0
18
66830
4 G 1.32
10.5
72.0
159.0
16
66831
4 G 2.08
11.7
115.0
222.0
14
66832
4 G 3.31
12.8
179.0
283.0
12
66833
4 G 6
16.9
256.0
460.0
10
66834
4 G 10
22.1
426.0
741.0
8
66835
4 G 16
26.2
657.0
1059.0
6
66836
4 G 25
30.8
1026.0
1497.0
4
66837
4 G 35
35.0
1412.0
2058.0
2
Technical
Data
TPE motor supply cable according to UL 1277
Temperature range
Flexing -40�C bis to +105�C (-40�F to +221�F)
Nominal voltage
TC 600 V
AWM 1000 V
TC Wind Turbine (WTTC) 1000V
Test voltage 4000 V
Minimum bending radius
7,5 cable ø
Coupling resistance (-C-type) Max. 250 Ohm/km
Approvals
Cable
Construction
Tinned copper conductor, fine wire stranded with AWG measures
Special PVC conductor insulation with transparent nylon skin
Black conductors with continuous white numbering
CGreen-yellow ground in the outer layer
Cores stranded in layers with optimal lay-lenghts
Special TPE outer jacket
Separator
Sheath color orange (RAL 2003)
C-Type Screening with braid of tinned copper wires, optimal coverage, approx. 85%
Application

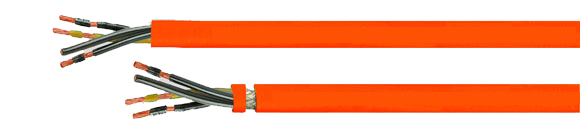

European TRAYCONTROL 670 HDP / 670-C-HDP are multi-conductor severe duty motor supply cables with Bus Drop, UL TC-ER and CSA CIC/TC approval. Superior oil performance for long cable life and permitted to be used in hazardous (classified) locations Class I Div 2 per NEC 336, 318 and 501. Special extruded jacket and fine copper stranding approved for exposed run, pipes and burial installation. Excellent flexibility and easier to pull than standard tray cables. Suitable for installation in dry, humid and damp environments, in the open unprotected installation from the cable
tray to machines.
Recommended Applications: Motor connections in industrial and automation environments, machine tool, automotive and renewable energies
/n
=
The product
is conformed
with
the EC
Low-Voltage
Directive
2006/95/EG.
Properties
Material self-extinguishing and flame retardant to UL-Standard in accordance CSA FT4
The materials used in manufacture are cadmium-free and contain no silicone and free from substances harmful to the wetting properties of lacquers
Tests UL:TC-ER, WTTC, MTW, NFPA 79 2007, UL 1277, UL AWM 105�C, OIL RES I & II, 75� C wet
Bus Drop Cable Class I Div 2 per NEC Art. 336, 318, 501 CSA: c (UL) CIC-TC FT4,
AWM I/II A/B FT4
