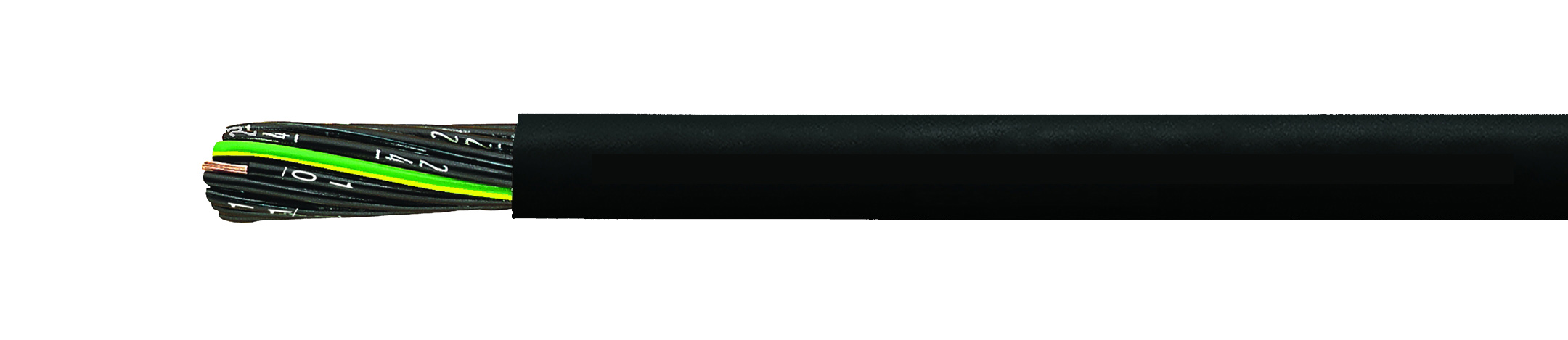

Control Cable: JZ-500-BLACK
Flexible, Meter Marking

Sealcon, Inc, European & Domestic cable

- JZ-500, Number coded, flexible, VDE

Part-No.		 Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm		 Copper weight
kg/km 		Weight
ca. kg/km 		AWG
10340 JZ-500-Black 2X0.5 5.5 9.6 40.0 20
10341 JZ-500-Black 3G0.5 5.8 14.4 46.0 20
10342 JZ-500-Black 4G0.5 6.2 19.0 56.0 20
10343 JZ-500-Black 5G 0.5 6.9 24.0 65.0 20
10344 JZ-500-Black 7G 0.5 7.5 33.6 80.0 20
10345 JZ-500-Black 12G0.5 9.8 58.0 135.0 20
10346 JZ-500-Black 18G0.5 11.8 86.0 196.0 20
10347 JZ-500-Black 25G 0.5 13.7 120.0 270.0 20
10348 JZ-500-Black 2X0.75 5.9 14.4 46.0 20
10349 JZ-500-Black 3G 0.75 6.2 21.6 54.0 20
10350 JZ-500-Black 4G 0.75 6.7 28.8 66.0 20
10351 JZ-500-Black 5G 0.75 7.5 36.0 80.0 20
10352 JZ-500-Black 7G 0.75 8.3 50.0 110.0 20
10353 JZ-500-Black 12G 0.75 10.8 86.0 179.0 20
10354 JZ-500-Black 18G 0.75 12.8 130.0 257.0 20
10355 JZ-500-Black 25G 0.75 15.1 180.0 365.0 20
10356 JZ-500-Black 2 x 1 6.2 19.2 60.0 20
10357 JZ-500-Black 3G1 6.5 29.0 72.0 20
10358 JZ-500-Black 4G1 7.2 38.4 86.0 20
10359 JZ-500-Black 5G1 7.9 48.0 104.0 20
10360 JZ-500-Black 7G1 8.7 67.0 141.0 20
10361 JZ-500-Black 12G1 11.4 115.0 230.0 20
10362 JZ-500-Black 18G1 13.7 173.0 343.0 20
10363 JZ-500-Black 25G1 16.2 240.0 485.0 20
10364 JZ-500-Black 2 x 1.5 7.0 29.0 70.0 20
10365 JZ-500-Black 3G 1.5 7.4 43.0 90.0 20
10366 JZ-500-Black 4G 1.5 8.2 58.0 109.0 20
10367 JZ-500-Black 5G 1.5 9.1 72.0 131.0 20
10368 JZ-500-Black 7G 1.5 9.8 101.0 184.0 20
10369 JZ-500-Black 12G 1.5 13.6 173.0 309.0 20
10370 JZ-500-Black 18G 1.5 15.6 259.0 440.0 20
10371 JZ-500-Black 25G 1.5 18.4 360.0 620.0 20
10372 JZ-500-Black 2 x 25.5 8.4 48.0 112.0 20
10373 JZ-500-Black 3G 2.5 8.9 72.0 148.0 20
10374 JZ-500-Black 4G 2.5 9.8 96.0 178.0 20
10375 JZ-500-Black 5G 2.5 10.9 120.0 221.0 20
10376 JZ-500-Black7G 2.5 12.0 168.0 306.0 20
10377 JZ-500-Black 12G 2.5 15.9 288.0 498.0 20
10378 JZ-500-Black 18G 2.5 19.0 432.0 764.0 20
10379 JZ-500-Black 25G 2.5 22.6 600.0 1044.0 20
10380 JZ-500-Black 4 G 4 11.6 154.0 295.0 20
10381 JZ-500-Black 5 G 4 12.9 192.0 361.0 20
10382 JZ-500-Black 4 G 6 13.1 230.0 424 20
10383 JZ-500-Black 5 G 6 14.5 288.0 525.0 20
10384 JZ-500-Black 4 G 10 17.0 384.0 701.0 20
10385 JZ-500-Black 4 G 16 20.9 614.0 1035.0 20
10386 JZ-500-Black 4 G 25 25.6 960.0 1582.0 20
10387 JZ-500-Black 4 G 35 30.0 1344.0 2105.0 20
Technical Data
  • Control cables, special PVC
  • Requirements adapted to DIN VDE
    0281, 0293, 0295
  • Temperature Range
    Flexing
    -15�C to +80�C (+23�F to +176�F)
    Fixed Installation
    -40�C to +80�C (-40�F to +176�F)
  • Nominal Voltage U0/U 300/500 V
  • Test Voltage 4000 V
  • Breakdown Voltage min. 8000 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Minimum Bending Radius
    Flexing 7.5x cable �
    Fixed installation 4x cable �
  • Radiation Resistance
    Up to 80x106 cJ/kg (up to 80 Mrad)
Approvals
RoHSCE
Cable Construction
  • Bare copper, fine wire conductors according to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
  • Core insulation of special PVC Z 7225
  • Black cores with continuous white numbering according to DIN VDE 0293 (also available with other conductor colors)
  • Green-yellow earth core in the outer layer (3 cores and above)
  • Cores stranded in layers with optimal lay-length
  • Outer sheath of special PVC, TM2 to DIN VDE 0281 part 1 and HD 21.1
  • color: black (RAL 9005)
  • with meter marking
Application
These cables are used for flexible use for medium mechanical stresses with free movement without tensile stress or forced movements in dry, moist and wet rooms and in open air. Must not be laid directly in soil or water. When screened for measurement, control and control lines etc. in mechanical and plant engineering, mahcine tools, production lines and conveyor belts.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG
Properties
  • Extensively oil resistant oil-/chemical resistance
  • For Chemical Resistance, see table Technical Information
  • PVC self-extinguishing and flame retardant according to DIN VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • G = with green-yellow ground conductor
    x = without green-yellow grounding (OZ)
  • Important for assemblers: We supply any "desired length" of stranded conductors without outer jacket, conductor insulation color acc. to RAL 9005 with number combination acc. to customers requirement.
  • Different dimensions are also available with red or blue conductors. Color coded version available starting from 35 mm�.
  • European-JB
  • For shielded version see type European F-CY-JZ
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm�.
  • Please note the clean room qualification when ordering.
Cable Accessories
  • Coming Soon!
