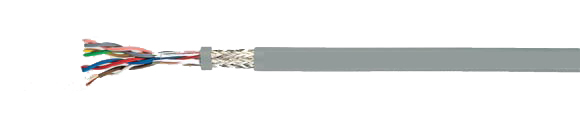

Data & Computer Cable: LifYCY

High Flexible, Paired, Shielded, EMI Preferred Type

Hi-Tech Controls, Inc, European & Domestic cable

Special PVC Connecting Cables, LifYCY, High Flexible, Copper Shielded Cable, Paired, EMI Preferred Type, RoHS Approved, RoHS CompliantHi-Tech Controls,
Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
15987 LIFYCY 2X2X0.20 5.9 24.0 60.0 -
15988 LIFYCY 3X2X0.20 6.1 35.0 70.0 -
15989 LIFYCY 4X2X0.20 6.6 45.0 80.0 -
15990 LIFYCY 5X2X0.20 7.9 54.0 90.0 -
15991 LIFYCY 6X2X0.20 8.6 56.0 100.0 -
15992 LIFYCY 7X2X0.20 8.9 68.0 120.0 -
15993 LIFYCY 8X2X0.20 9.4 72.0 130.0 -
15994 LIFYCY 10X2X0.20 9.9 108.0 150.0 -
15995 LIFYCY 12X2X0.20 10.9 125.0 180.0 -
15996 LIFYCY 16X2X0.20 12.5 144.0 210.0 -
15997 LIFYCY 18X2X0.20 13.1 155.0 230.0 -
15998 LIFYCY 20X2X0.20 13.9 216.0 250.0 -
15999 LIFYCY 24X2X0.20 13.2 228.0 330.0 -
16000 LIFYCY 32X2X0.20 16.6 269.0 400.0 -
Technical Data
  • Special PVC connecting cable, adapted to DIN VDE 0812, 0814
  • Temperature Range
    Flexing
    -5°C to +70°C (+23°F to +158°F)
    Fixed Installation
    -40°C to +70°C (-40°F to +158°F)
  • Nominal Voltage 350 V
  • Test Voltage 1200 V
  • Breakdown Voltage min. 2400 V
  • Insulation Resistance
    Min. 10 MOhm x km
  • Minimum Bending Radius
    Flexing 10x cable Ø
    Fixed Installation 5x cable Ø
  • Radiation Resistance
    Up to 80x106 cJ/kg (up to 80 Mrad)
  • Coupling Resistance
    Max. 250 Ohm/km
Approvals
RoHSCE VDE
Cable Construction
  • Bare copper, extra fine conductors (102x0.05 = 0.2 mm²)
  • Special PVC conductor insulation YI2, to DIN VDE 0207 part 4
  • Conductor identification to DIN 47100
  • Conductors twisted in pairs, pairs twisted in layers
  • Conductor wrapping with polyester tape
  • Tinned copper, shielded braiding, approx. 85% coverage
  • Special PVC outer jacket YM2, to DIN VDE 0207 part 5
  • Color: Gray
Application
These shielded cables are used as connecting cable for signal, measuring, control and speaking purposes for example in Intercom systems, weighing instruments, equipment for office works, computers and telecommunication equipment etc. The cable offers a flexible handling and installation. Due to pair-twisting, the electrical unbalances of the cable itself can be reduced and cross-talk effects are avoided.
The tinned copper shielded braiding serves as protection against outer high frequency influences (capacitance unbalance). The drain wire ensure an exact connection to the earth clamp.
The cables are suitable for fixed installation and flexible application, free-moving without tensile stress and without forced guiding operation in dry, damp and wet places for medium mechanical stress.
EMI = Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of the copper braiding on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • Extensively oil resistant
  • For chemical resistance, see table technical information
  • PVC self-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
Cable Accessories
  • Coming Soon!
