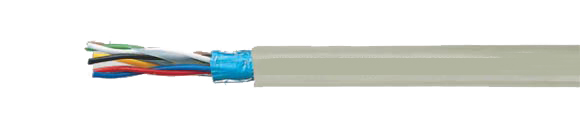

Data & Computer Cable: RD-Y(St)Yv / RD-Y(St)YY

Reinforced (Double) Outer Jacket, Instrumentation Cable, Maxi-Termi-Point®

Hi-Tech Controls, Inc, European wires and cables

Special PVC data transmission cables, RD-Y(St)Yv / RD-Y(St)YY, reinforced (double) outer jacket, instrumentation cable, Maxi-Termi-Point®, Hi-Tech Controls,
Part-No. Description & No. Conductors x cross-sec. mm2 Conductor Ø
ca. mm
Number of
Units
Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
20180 RD-Y(St)Yv 2X2X0.5 2.0 - 7.5 25.0 90.0 20
20160 RD-Y(St)YY 2X2X0.5 2.0 - 7.0 25.0 80.0 20
20181 RD-Y(St)Yv 4X2X0.5 2.0 1 9.5 45.0 140.0 20
20161 RD-Y(St)YY 4X2X0.5 2.0 1 9.0 45.0 125.0 20
20182 RD-Y(St)Yv 8X2X0.5 2.0 2 13.0 85.0 220.0 20
20162 RD-Y(St)YY 8X2X0.5 2.0 2 12.5 85.0 200.0 20
20183 RD-Y(St)Yv 12X2X0.5 2.0 3 14.0 125.0 275.0 20
20163 RD-Y(St)YY 12X2X0.5 2.0 3 13.0 125.0 255.0 20
20184 RD-Y(St)Yv 16X2X0.5 2.0 4 15.7 165.0 350.0 20
20164 RD-Y(St)YY 16X2X0.5 2.0 4 14.7 165.0 315.0 20
20185 RD-Y(St)Yv 24X2X0.5 2.0 6 17.3 245.0 470.0 20
20165 RD-Y(St)YY 24X2X0.5 2.0 6 16.3 245.0 370.0 20
20186 RD-Y(St)Yv 32X2X0.5 2.0 8 28.0 325.0 620.0 20
20166 RD-Y(St)YY 32X2X0.5 2.0 8 21.0 325.0 555.0 20
20187 RD-Y(St)Yv 48X2X0.5 2.0 12 24.0 485.0 850.0 20
20167 RD-Y(St)YY 48X2X0.5 2.0 12 23.0 485.0 170.0 20
20188 RD-Y(St)Yv 96X2X0.5 2.0 24 36.5 965.0 1450.0 20
20168 RD-Y(St)YY 96X2X0.5 2.0 24 35.0 965.0 1300.0 20
Technical Data
  • Special PVC data transmission cable adapted to DIN VDE 0815 and 0816
  • Conductor Resistance (loop)
    Max. 73.6 Ohm/km
  • Temperature Range
    Flexing
    -5°C to +50°C (+23°F to +122°F)
    Fixed Installation
    -40°C to +70°C (-40°F to +158°F)
  • Operating Top Level Voltage
    Max. 600 V (Not for purposes of high current and power installation)
  • Test Voltage
    Conductor/conductor 2000 V
    Conductor/shield 2000 V
  • Insulation Resistance
    Conductor/conductor min. 100 MOhm x km
    Conductor/shield min. 100 MOhm x km
  • Mutual Capacitance
    At 800 Hz max. 100 nF/km
    (this value may be exceeded by 20% with a make-up to 4 pairs)
  • Impedance
    At 1 kHz approx. 370 Ohm
    At 10 kHz approx. 130 Ohm
  • Capacity Unbalance at 800 Hz
    Max. 200 pF/100 m
    (20% of the values, but one value up to 400 pF is allowed)
  • Line Attenuation
    At 1 kHz approx. 1.2 dB/km
    At 10 kHz approx. 3.0 dB/km
  • Cross-Talk Attenuation
    At 10 kHz and cable length of 500 m min. 60 dB
  • Minimum Bending Radius
    Approx. 7.5x cable Ø
Approvals
RoHSCE VDE
Cable Construction
  • Bare copper stranded wires 0.5 mm² (7x0.3 mm)
  • PVC conductor insulation
  • Conductors color coded
  • Conductors twisted in pairs (approx. 20 pitch/m 50 mm) 4 pairs stranded to a unit
  • Units stranded in concentric layers
  • Electrostatic shield of plastic coated aluminum foil and drain-wire tinned, 0.5 mm² (7x0.3 mm)
  • PVC outer jacket
  • Color: Gray (RAL 7001)
  • Conductor colors:
    pair-no.1,  a-conductor=blue, b-conductor=red
    pair-no.2,  a-conductor=gray, b-conductor=yellow
    pair-no.3,  a-conductor=green, b-conductor=brown
    pair-no.4,  a-conductor=white, b-conductor=black
    (4 pairs = 1 unit)
Application
The data transmission cables RD-Y(St)Yv are used in measurement and control technology such as in control rooms of industrial plants and power stations. The pairs are twisted with short pitches and different lay-lengths which lead to good cross talk attenuation values in a unit. The cables serves for transmission of analog and digital signals up to frequencies of approx. 10 kHz. These cables offer considerable advantages by using the quick and economical connecting possibilities in Maxi-Termi-Point® technique. This solder less connecting technique is defined by a compression termination that employs a spring-clip for the connection of the cable to a square rigid post without pre-stripping. For this technique it is necessary to have an exact 7-conductor stranded conductor and a Semi-Rigid-PVC. Suitable for fixed installation only inside of buildings. With the reinforced PVC(-Yv) outer jacket these cables are suitable for fixed installation inside buildings and also in open air and underground.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • PVC self-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • The static shield protects the transmission circuits against outer electrical interferences
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
  • Copper weight including drain-wire
  • Maxi-Termi-Point® = registered trademark AMP
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
############ \
