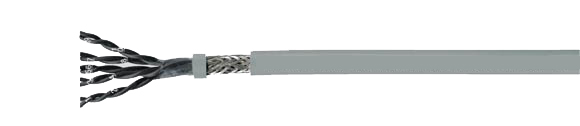

Data & Computer Cable: PAAR-CY-OZ

Flexible, Copper Shielded, EMI Preferred Type

Hi-Tech Controls, Inc, European wires and cables

Special PVC Data Cables, PAAR-CY-OZ, Flexible, Copper Shielded Cable, EMI Preferred Type, Hi-Tech Controls, , RoHS Approved, RoHS Compliant
Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
17023 PAAR-CY-OZ 2x2x1 9.5 82.0 135.0 17
17024 PAAR-CY-OZ 3x2x1 10.0 103.0 160.0 17
17025 PAAR-CY 4X2X1 11.0 132.0 197.0 17
17026 PAAR-CY 5X2X1 12.3 161.0 253.0 17
17027 PAAR-CY 6X2X1 13.4 188.0 295.0 17
17028 PAAR-CY 8X2X1 14.7 240.0 410.0 17
17029 PAAR-CY 10X2X1 16.4 282.0 518.0 17
17030 PAAR -CY 12X2X1 18.2 324.0 601.0 17
17031 PAAR-CY 16X2X1 19.0 412.0 990.0 17
17032 PAAR-CY 20X2X1 19.8 505.0 1400.0 17
17033 PAAR-CY 25X2X1 23.5 610.0 1600.0 17
17034 PAAR-CY 2X2X1.5 11.3 112.0 168.0 16
17035 PAAR-CY 3X2X1.5 12.2 139.0 221.0 16
17036 PAAR-CY 4X2X1.5 13.5 176.0 269.0 16
17037 PAAR-CY 5X2X1.5 14.5 212.0 314.0 16
17038 PAAR-CY 6X2X1.5 17.2 255.0 550.0 16
17039 PAAR-CY 8X2X1.5 18.2 322.0 650.0 16
17040 PAAR-CY 10X2X1.5 20.1 380.0 900.0 16
17041 PAAR-CY 12X2X1.5 21.8 442.0 950.0 16
17042 PAAR-CY 16X2X1.5 25.0 572.0 1100.0 16
17043 PAAR-CY 20X2X1.5 27.0 705.0 1700.0 16
17044 PAAR - CY 25X2X1.5 29.5 862.0 1900.0 16
Technical Data
  • Special PVC data cables, shielded, adapted to DIN VDE 0812, 0814, 0245
  • Temperature Range
    Flexing
    -5°C to +80°C (+23°F to +176°F)
    Fixed Installation
    -40°C to +80°C (-40°F to +176°F)
  • Nominal Voltage U0/U 300/500 V
  • Test Voltage
    Conductor/conductor 1200 V
    Conductor/shield 800 V
  • Breakdown Voltage min. 2400 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Mutual Capacitance according to
    different cross-sections
    0.5 mm2 to 1.5 mm²:
    conductor/conductor approx. 150 nF/km
    conductor/shield approx. 270 nF/km
  • Inductance approx. 0.67 mH/km
  • Coupling Resistance
    Max. 250 Ohm/km
  • Minimum Bending Radius
    Flexing 10x cable Ø
    Fixed Installation 5x cable Ø
  • Radiation Resistance
    Up to 80x106 cJ/kg (up to 80 Mrad)
Approvals
RoHSCE pct VDE
Cable Construction
  • Bare copper, fine wire conductors, bunch stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
  • Special PVC conductor insulation TI2, to DIN VDE 0281 part 1
  • Black conductors with continuous numbering in white according to DIN VDE 0293
  • Conductors laid up in pairs
  • Pairs stranded in layers with optimal lay-length
  • Foil wrap
  • Tinned copper shielded braiding,approx. 85% coverage
  • Special PVC outer jacket TM2, to DIN VDE 0281 part 1
  • Color: Gray (RAL 7001)
Application
PAAR-CY is ideal for use as a connecting cable for all areas involving measuring, control, regulation and signal transfer as well as for use in al fields of data and impulse transmission. Especially suited for all areas of high electromagnetic activity, e.g. disturbances through parallel circuits.
EMI = Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of the copper braiding on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • Extensively oil resistant
  • For chemical resistance, see table technical information
  • PVC self-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • x = without green-yellow grounding (OZ)
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
  • We deliver other dimensions and other colors of outer jackets on request
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
