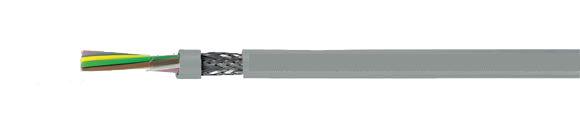

Data & Computer Cable: TRONIC-CY (LiY-CY)

Flexible, Copper Shielded, Color Coded to DIN 47100, EMI Preferred Type

Hi-Tech Controls, Inc, European & Domestic cable

Special PVC Data Cables, TRONIC-CY (LiY-CY), EMI Preferred Type, Flexible, Color Coded to DIN 47100, Shielded, Hi-Tech Controls, European  , RoHS Approved, RoHS Compliant
AWG Selection
26
26
24
24
22
22
20
20
18
18
17
17
16
16
Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
20139 TRONIC-CY 1X0.14   2.5 6.1 16.0 26
20001 TRONIC-CY 2X0.14 3.7 12.0 20.0 26
20002 TRONIC-CY 3X0.14 3.9 13.0 27.0 26
20003 TRONIC-CY 4X0.14 4.1 14.5 32.0 26
20004 TRONIC-CY 5X0.14 4.4 15.5 37.0 26
20005 TRONIC-CY 6X0.14 4.9 18.2 42.0 26
20006 TRONIC-CY 7X0.14 4.9 19.0 48.0 26
20007 TRONIC-CY 8X0.14 5.2 21.3 55.0 26
20008 TRONIC-CY 10X0.14 6.2 28.7 65.0 26
20009 TRONIC-CY 12X0.14 6.2 30.5 77.0 26
20010 TRONIC-CY 14X0.14 6.6 32.0 79.0 26
20011 TRONIC-CY 16X0.14 6.9 43.2 89.0 26
20012 TRONIC-CY 18X0.14 7.2 51.0 103.0 26
20013 TRONIC-CY 20X0.14 7.7 55.0 116.0 26
20014 TRONIC-CY 21X0.14 7.9 56.0 120.0 26
20015 TRONIC-CY 24X0.14 8.3 62.0 131.0 26
20091 TRONIC-CY 25X0.14 8.5 61.0 136.0 26
20016 TRONIC-CY 27X0.14 8.5 65.0 142.0 26
20017 TRONIC-CY 30X0.14 9.3 69.0 157.0 26
20018 TRONIC-CY 32X0.14 9.6 76.0 163.0 26
20019 TRONIC-CY 36X0.14 9.9 83.0 182.0 26
20020 TRONIC-CY 40X0.14 10.2 88.0 209.0 26
20021 TRONIC-CY 42X0.14 10.5 94.0 217.0 26
20022 TRONIC-CY 44X0.14 11.2 110.0 226.0 26
20023 TRONIC-CY 48X0.14 11.3 115.0 240.0 26
20024 TRONIC-CY 52X0.14 11.8 124.0 270.0 26
20025 TRONIC-CY 56X0.14 12.1 132.0 320.0 26
20026 TRONIC-CY 61X0.14 12.4 146.0 370.0 26
20027 TRONIC-CY 80X0.14 14.1 226.0 510.0 26
20028 TRONIC-CY 100X0.14 15.6 267.0 580.0 26
20084 TRONIC-CY 1X0.25   2.9 7.2 27.0 24
20029 TRONIC-CY 2X0.25 4.2 15.8 31.0 24
20030 TRONIC-CY 3X0.25 4.3 18.6 36.0 24
20031 TRONIC-CY 4X0.25 4.7 22.0 40.0 24
20032 TRONIC-CY 5X0.25 5.3 26.5 51.0 24
20083 TRONIC CY 6X0.25 5.7 32.4 58.0 24
20033 TRONIC-CY 7X0.25 5.7 35.0 64.0 24
20034 TRONIC-CY 8X0.25 6.3 42.1 82.0 24
20035 TRONIC-CY 10X0.25 7.2 49.9 85.0 24
20036 TRONIC-CY 12X0.25 7.3 58.0 90.0 24
20037 TRONIC-CY 14X0.25 7.9 62.0 144.0 24
20038 TRONIC-CY 16X0.25 8.3 67.0 110.0 24
20039 TRONIC-CY 18X0.25 9.1 78.0 142.0 24
20086 TRONIC-CY 19X0.25 9.1 79.0 146.0 24
20040 TRONIC-CY 20X0.25 9.4 88.0 152.0 24
20041 TRONIC-CY 21X0.25 9.4 91.0 150.0 24
20042 TRONIC-CY 24X0.25 10.0 96.0 163.0 24
20092 TRONIC-CY 25x0.25 10.1 99.0 169.0 24
20043 TRONIC-CY 27X0.25 10.1 122.0 176.0 24
20044 TRONIC-CY 30X0.25 11.1 132.0 189.0 24
20045 TRONIC-CY 32X0.25 11.5 138.0 204.0 24
20046 TRONIC-CY 36X0.25 11.9 146.0 219.0 24
20087 TRONIC-CY 37X0.25 11.9 152.0 230.0 24
20047 TRONIC-CY 40X0.25 12.4 157.0 247.0 24
20048 TRONIC-CY 42X0.25 12.8 160.0 269.0 24
20049 TRONIC-CY 44X0.25 13.6 164.0 292.0 24
20050 TRONIC-CY 48X0.25 13.7 164.0 317.0 24
20051 TRONIC-CY 52X0.25 14.1 175.0 330.0 24
20052 TRONIC-CY 56X0.25 14.5 189.0 343.0 24
20053 TRONIC-CY 61X0.25 15.1 204.0 365.0 24
20054 TRONIC-CY 80X0.25 17.1 387.0 480.0 24
20055 TRONIC-CY 100X0.25 19.1 505.0 605.0 24
20088 TRONIC-CY 1X0.34   3.2 13.5 24.0 22
20056 TRONIC-CY 2X0.34 5.0 18.0 30.0 22
20057 TRONIC-CY 3X0.34 5.2 22.0 37.0 22
20058 TRONIC-CY 4X0.34 5.6 28.0 48.0 22
20059 TRONIC-CY 5X0.34 6.0 31.0 54.0 22
20085 TRONIC-CY 6X0.34 6.7 45.0 61.0 22
20060 TRONIC-CY 7X0.34 6.7 51.0 67.0 22
20061 TRONIC-CY 8X0.34 7.2 54.0 81.0 22
20062 TRONIC-CY 10X0.34 8.4 65.0 103.0 22
20063 TRONIC-CY 12X0.34 8.5 70.0 110.0 22
20064 TRONIC-CY 14X0.34 9.0 81.0 153.0 22
20065 TRONIC-CY 16X0.34 9.6 88.0 159.0 22
20066 TRONIC-CY 18X0.34 10.1 103.0 172.0 22
20089 TRONIC-CY 19X0.34 10.1 106.0 181.0 22
20067 TRONIC-CY 20X0.34 10.7 112.0 191.0 22
20068 TRONIC-CY 21X0.34 10.7 116.0 199.0 22
20069 TRONIC-CY 24X0.34 11.3 129.0 229.0 22
20093 TRONIC-CY 25X0.34 11.5 120.0 241.0 22
20070 TRONIC-CY 27X0.34 11.5 138.0 258.0 22
20071 TRONIC-CY 30X0.34 12.6 158.0 290.0 22
20072 TRONIC-CY 32X0.34 13.0 163.0 305.0 22
20073 TRONIC-CY 36X0.34 13.7 178.0 330.0 22
20090 TRONIC-CY 37X0.34 13.7 192.0 348.0 22
20074 TRONIC-CY 40X0.34 14.2 198.0 364.0 22
20075 TRONIC-CY 42X0.34 14.8 203.0 389.0 22
20076 TRONIC-CY 44X0.34 15.4 214.0 414.0 22
20077 TRONIC-CY 48X0.34 15.6 227.0 420.0 22
20078 TRONIC-CY 52X0.34 16.2 242.0 450.0 22
20079 TRONIC-CY 56X0.34 16.6 267.0 480.0 22
20080 TRONIC-CY 61X0.34 17.1 295.0 520.0 22
20081 TRONIC-CY 80X0.34 19.4 524.0 580.0 22
20082 TRONIC-CY 100X0.34 21.7 620.0 694.0 22
16001 TRONIC-CY 1X0.5   3.6 15.0 40.0 20
16002 TRONIC-CY 2X0.5 5.5 29.0 45.0 20
16003 TRONIC-CY 3X0.5 5.7 39.0 55.0 20
16004 TRONIC-CY 4X0.5 6.3 46.0 61.0 20
16005 TRONIC-CY 5X0.5 6.8 52.0 76.0 20
16006 TRONIC-CY 6X0.5 7.3 66.0 89.0 20
16007 TRONIC-CY 7X0.5 7.3 68.0 98.0 20
16008 TRONIC-CY 8X0.5 8.0 80.0 117.0 20
16009 TRONIC-CY 10X0.5 9.4 93.0 135.0 20
16010 TRONIC-CY 12X0.5 9.6 117.0 157.0 20
16011 TRONIC-CY 14X0.5 10.1 122.0 190.0 20
16012 TRONIC-CY 16X0.5 10.6 129.0 210.0 20
16013 TRONIC-CY 18X0.5 10.7 152.0 217.0 20
16526 TRONIC-CY 19X0.5 11.2 156.0 246.0 20
16014 TRONIC-CY 20X0.5 11.7 173.0 275.0 20
16015 TRONIC-CY 24X0.5 12.6 236.0 337.0 20
16016 TRONIC-CY 25X0.5 12.7 250.0 351.0 20
16527 TRONIC-CY 27X0.5 12.7 265.0 373.0 20
16017 TRONIC-CY 30X0.5 14.1 297.0 396.0 20
16018 TRONIC-CY 32X0.5 14.6 301.0 431.0 20
16164 TRONIC-CY 34X0.5 15.3 312.0 440.0 20
16019 TRONIC-CY 36X0.5 15.3 320.0 445.0 20
16528 TRONIC-CY 37X0.5 15.3 325.0 458.0 20
16020 TRONIC-CY 40X0.5 15.8 345.0 470.0 20
16021 TRONIC-CY 50X0.5 18.1 407.0 570.0 20
16022 TRONIC-CY 61X0.5 19.1 580.0 650.0 20
16023 TRONIC-CY 80X0.5 21.9 690.0 780.0 20
16024 TRONIC-CY 100X0.5 24.3 814.0 990.0 20
16025 TRONIC-CY 1X0.75  3.8 19.0 41.0 18
16026 TRONIC-CY 2X0.75 5.8 38.0 59.0 18
16027 TRONIC-CY 3X0.75 6.3 50.0 66.0 18
16028 TRONIC-CY 4X0.75 6.8 57.0 77.0 18
16029 TRONIC-CY 5X0.75 7.3 70.0 93.0 18
16030 TRONIC-CY 6X0.75 8.1 87.0 113.0 18
16031 TRONIC-CY 7X0.75 8.2 96.0 130.0 18
16032 TRONIC-CY 8X0.75 9.0 110.0 145.0 18
16033 TRONIC-CY 10X0.75 10.3 140.0 180.0 18
16034 TRONIC-CY 12X0.75 10.5 151.0 202.0 18
16035 TRONIC-CY 14X0.75 11.3 167.0 225.0 18
16036 TRONIC-CY 16X0.75 11.8 183.0 275.0 18
16037 TRONIC-CY 18X0.75 12.6 207.0 292.0 18
16529 TRONIC-CY 19X0.75 12.6 221.0 322.0 18
16038 TRONIC-CY 20X0.75 13.4 238.0 362.0 18
16039 TRONIC-CY 24X0.75 14.1 270.0 435.0 18
16040 TRONIC-CY 25X0.75 14.3 278.0 415.0 18
16041 TRONIC-CY 27X0.75 14.3 287.0 467.0 18
16042 TRONIC-CY 30X0.75 15.8 315.0 486.0 18
16043 TRONIC-CY 32X0.75 16.3 330.0 530.0 18
16163 TRONIC-CY 34X0.75 17.1 350.0 570.0 18
16044 TRONIC-CY 36X0.75 17.1 370.0 600.0 18
16530 TRONIC-CY 37X0.75 17.9 386.0 640.0 18
16045 TRONIC-CY 40X0.75 17.9 395.0 680.0 18
16120 TRONIC-CY 42X0.75 18.4 408.0 714.0 18
16047 TRONIC-CY 61X0.75 21.5 555.0 900.0 18
16048 TRONIC-CY 80X0.75 24.6 715.0 1200.0 18
16049 TRONIC-CY 100X0.75 27.2 910.0 1440.0 18
16475 TRONIC-CY 2X1   6.4 46.0 65.0 17
16476 TRONIC-CY 3X1 6.7 56.0 80.0 17
16477 TRONIC-CY 4X1 7.2 69.0 98.0 17
16478 TRONIC-CY 5X1 8.0 89.0 127.0 17
16479 TRONIC-CY 6X1 8.6 105.0 144.0 17
16480 TRONIC-CY 7X1 8.6 111.0 158.0 17
16481 TRONIC-CY 8X1 9.4 130.0 197.0 17
16482 TRONIC-CY 10X1 11.2 140.0 232.0 17
16483 TRONIC-CY 12X1 11.4 168.0 260.0 17
16484 TRONIC-CY 14X1 12.0 198.0 302.0 17
16485 TRONIC-CY 16X1 12.8 218.0 346.0 17
16486 TRONIC-CY 19X1 13.6 268.0 412.0 17
16487 TRONIC-CY 24X1 15.2 320.0 493.0 17
16488 TRONIC-CY 27X1 15.4 360.0 562.0 17
16489 TRONIC-CY 37X1 18.3 485.0 790.0 17
16500 TRONIC-CY 2X1.5   7.3 63.0 88.0 16
16501 TRONIC-CY 3X1.5 7.6 76.0 100.0 16
16502 TRONIC-CY 4X1.5 8.3 98.0 126.0 16
16503 TRONIC-CY 5X1.5 9.2 116.0 160.0 16
16504 TRONIC-CY 6X1.5 9.9 140.0 192.0 16
16505 TRONIC-CY 7X1.5 9.9 152.0 208.0 16
16506 TRONIC-CY 8X1.5 10.8 172.0 244.0 16
16507 TRONIC-CY 10X1.5 13.0 193.0 315.0 16
16508 TRONIC-CY 12X1.5 13.0 254.0 338.0 16
16509 TRONIC-CY 14X1.5 13.9 272.0 383.0 16
16510 TRONIC-CY 16X1.5 14.9 285.0 424.0 16
16511 TRONIC-CY 19X1.5 15.6 387.0 506.0 16
16512 TRONIC-CY 24X1.5 17.7 448.0 690.0 16
16513 TRONIC-CY 27X1.5 17.9 506.0 781.0 16
16514 TRONIC-CY 37X1.5 21.2 682.0 941.0 16
Technical Data
  • Special PVC data shielded cables, adapted to DIN VDE 0245, 0812
  • Temperature Range
    Flexing
    -5°C to +80°C (+23°F to +176°F)
    Fixed Installation
    -40°C to +80°C (-40°F to +176°F)
  • Nominal Voltage
    0.14 mm² = 350 V
    0.25 mm² = 500 V
  • Test Voltage
    Conductor/conductor 1200 V
    Conductor/shield 800 V
  • Breakdown Voltage min. 2400 V
  • Insulation Resistance
    Min. 200 MOhm x km
  • Capacitance (approx.-value) at 800 Hz
    Conductor/conductor at 0.14 mm² = 120 pF/m
    Conductor/conductor 0.25 mm² = 150 pF/m
    Conductor/shield at 0.14 mm² = 240 pF/m
    Conductor/shield 0.25 mm² = 270 pF/m
  • Load (A) According to different
    cross-sections, see table
    Technical Information
  • Inductance approx. 0.65 mH/km
  • Impedance approx. 78 Ohm
  • Coupling Resistance max. 250 Ohm/km
  • Minimum Bending Radius
    Flexing 10x cable Ø
    Fixed Installation 5x cable Ø
  • Radiation Resistance
    Up to 80x106 cJ/kg (up to 80 Mrad)
Approvals
RoHSCE PCT VDE
Cable Construction
  • Bare copper, fine wire conductors for 0.5 mm² to DIN VDE 0295 cl. 5 and IEC 60228 cl. 5
  • Conductor make-up for
    0.14 mm² = 18x0.1 mm
    0.25 mm² = 14x0.15 mm
    0.34 mm² = 7x0.25 mm
  • Special PVC conductor insulation TI2, to DIN VDE 0281 part 1
  • Conductors stranded in layers with optimal lay-length
  • Color coded to DIN 47100, but without color repetition
  • Conductor wrapping with foil
  • Drain-wire, tinned
  • Tinned, copper braided shield, approx. 85% coverage
  • Special PVC outer jacket TM2, to DIN VDE 0281 part 1
  • Color: Gray (RAL 7001)
Application
These shielded cables are used for flexible use with free movement without tensile stress or forced movements in dry, moist and wet rooms but not suitable for open air, wherever the construction requirements call for a minimum outer diameter, TRONIC is the suitable cable to use. This applies especially to such areas as tool making and machine industries as well as electronic, computer, measurement and control sectors.
The extremely small outer diameter make suitable for miniature plugs etc.
EMI = Electromagnetic Interference
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • Extensively oil resistant
  • For chemical resistance, see table technical information
  • PVC self-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • Also available in paired version (e.g. PAAR-TRONIC-CY 16x2x0.14mm²)
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
  • For 1 conductor cable shield of helically wound
  • Shielded type: TRONIC (LiYY)
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
quote
Items For Quote


quote
box
Sealcon is the Exclusive Importer of HUMMEL products. We offer over 6,000 different Types and Sizes of RoHS Compliant Liquid Tight Strain Relief Fittings, Cord Grips, Cable Glands, Circular Connectors, Conduit System, Industrial Enclosures and Other Related Cable Management Products which are rated the best in the industry.
7374 S. Eagle Street
Centennial, CO 80112-4221 USA
Toll Free: 800-677-8942 / 303-680-5159 FAX: 303-680-5344
Valid XHTML 1.0 Transitional
To Top of Page Top of Page

Copyright © 2018 Hi-Tech Controls Inc. All Rights Reserved
|Domestic & International Cables|Enclosures |Liquid Tight Strain Relief Fittings & Accessories|
|Circular Connectors|Conduit System|Pneumatics|Cable Index|Enclosure Index|Search|
|Media|Site Map|Company Overview|Contact|Privacy Policy|Copyright Notice|
