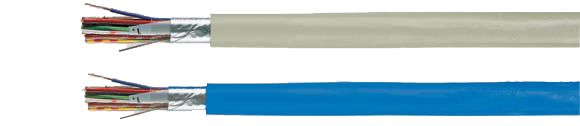

Data & Computer Cable: JE-Y(St)Y

Bd Si Industry-Electronic Cable According to DIN VDE 0815

Hi-Tech Controls, Inc, European wires and cables

JE-Y(St)Y Bd Si Industry-Electronic Cable according to DIN VDE 0815, Data cable, Hi-Tech Controls,
Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
48500 JE-Y (ST) Y 1X2X0.8 gray  5.2 20.0 43.0 -
48501 JE-Y (ST) Y 2x2x0.8 gray 5.8 25.0 60.0 -
48502 JE-Y(ST)Y 4X2X0.8 gray 7.7 45.0 95.0 -
48503 JE-Y(ST)Y 8X2X0.8 gray 10.5 85.0 157.0 -
48504 JE-Y(ST)Y 12X2X0.8 gray 11.5 126.0 224.0 -
48505 JE-Y(ST)Y 16X2X0.8 gray 12.4 166.0 290.0 -
48506 JE-Y(ST)Y 20X2X0.8 gray 14.3 206.0 350.0 -
48507 JE-Y(ST)Y 32X2X0.8 gray 18.0 327.0 545.0 -
48508 JE-Y(ST)Y40X2X0.8 gray 19.5 407.0 660.0 -
48509 JE-Y(ST)Y 80X2X0.8 gray 28.1 809.0 1160.0 -
48519 JE-Y(ST)Y 1X2X0.8 blue   5.2 20.0 43.0 -
48520 JE-Y(ST)Y 2x2x0.8 blue 5.8 25.0 60.0 -
48521 JE-Y(ST)Y 4X2X0.8 blue 7.7 45.0 95.0 -
48522 JE-Y(ST)Y 8X2X0.8 blue 10.5 85.0 157.0 -
48523 JE-Y(ST)Y 12X2X0.8 blue 11.5 126.0 224.0 -
48524 JE-Y(ST)Y 16X2X0.8 blue 12.4 166.0 290.0 -
48525 JE-Y(ST)Y 20X2X0.8 blue 14.3 206.0 350.0 -
48526 JE-Y(ST)Y 32X2X0.8 blue 18.0 327.0 545.0 -
48527 JE-Y(ST)Y 40X2X0.8 blue 20.3 407.0 660.0 -
48528 JE-Y(ST)Y 80X2X0.8 blue 28.1 809.0 1160.0 -
Technical Data
  • Special PVC conductor insulation to DIN VDE 0815/DIN 57815
  • Conductor Resistance at 20°C/68°F
    36.6 Ohm/km
  • Temperature Range
    Flexing
    -5°C to +50°C (+23°C to +122°C)
    Fixed Installation
    -30°C to +70°C (-22°C to +158°C)
  • Nominal Voltage 225 V
    (Not for purposes of high current and power installation)
  • Test Voltage
    Conductor/conductor 500 V
    Conductor/shield 2000 V
  • Insulation Resistance
    Min. 100 MOhm x km
  • Mutual Capacitance max. 100 pF/m
    (The value can exceed of 20% by cables up to 4 pairs)
  • Capacitance Unbalance
    Max. 200 pF/100 m
  • Inductance approx. 0.70 mH/km
  • Attenuation at 800 Hz
    Approx. 1.1 dB/km
  • Radiation Resistance
    Up to 80x106 cJ/kg (up to 80 Mrad)
  • Minimum Bending Radius
    Stationary approx. 6x cable Ø
  • Caloric Load Values
    See table Technical Information
Approvals
RoHSCE VDE
Cable Construction
  • Solid plain copper conductor wire 0.8 mm Ø
  • Special PVC conductor insulation YI3, to DIN VDE 0207 part 4
  • Color coded to DIN VDE 0815
  • Conductors stranded in pairs with optimal lay-length
  • 4 pairs stranded to a unit
  • Units stranded in layer
  • Polyester foil wrap
  • PVC coated aluminum foil shield
  • Copper drain-wire, bare
  • Special PVC outer jacket YM1, to DIN VDE 0207 part 5
  • Color: Gray (RAL 7032) or Blue (RAL 5015)
Application
This cable is especially suitable for transmission of signals and measurements in the fields of electronics and for data transmission in computers. Suitable for flexing and fixed installations in dry and moist environments in and under plaster as well as in the open for fixed installation on outer walls of buildings. Also available with blue outer jacket for intrinsic safe installations. These cables are not allowed for purposes of high current and power installation.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • PVC self-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • Also available in a halogen-free version.
    (see also content "Halogen-free Security Cables and Wires")
Cable Accessories
  • Coming Soon!
