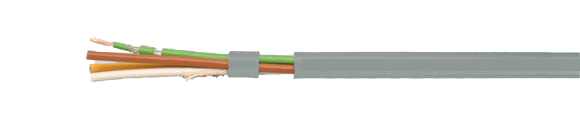

Data & Computer Cable: TRONIC 1-CY

Each Conductor Individually Shielded, EMI Preferred Type

Hi-Tech Controls, Inc, European wires and cables

TRONIC 1-CY, each conductor individually shielded, EMI preferred type, Hi-Tech Controls, , RoHS Approved, RoHS Compliant
Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
49501 TRONIC 1-CY 3X0.25 6.5 18.0 40.0 24
49502 TRONIC 1-CY 4X0.25 7.2 24.0 45.0 24
49503 TRONIC 1-CY 5X0.25 8.0 30.0 56.0 24
49504 TRONIC 1-CY 7X0.25 8.8 42.0 70.0 24
49505 TRONIC 1-CY 8X0.25 10.0 48.0 87.0 24
49506 TRONIC 1-CY 10X0.25 11.3 60.0 90.0 24
49507 TRONIC 1-CY 12X0.25 12.0 72.0 95.0 24
49508 TRONIC 1-CY 16X0.25 13.1 96.0 115.0 24
49509 TRONIC 1-CY 24X0.25 16.0 144.0 170.0 24
49510 TRONIC 1-CY 32X0.25 18.5 192.0 210.0 24
49511 TRONIC 1-CY 48X0.25 23.5 288.0 320.0 24
49512 TRONIC 1-CY 3X0.5 7.3 28.8 71.0 20
49513 TRONIC 1-CY 4X0.5 8.2 38.5 81.0 20
49514 TRONIC 1-CY 5X0.5 9.2 48.0 95.0 20
49515 TRONIC 1-CY 7X0.5 10.0 67.0 115.0 20
49516 TRONIC 1-CY 8X0.5 11.0 77.0 145.0 20
49517 TRONIC 1-CY 10X0.5 13.2 96.0 169.0 20
49518 TRONIC 1-CY 12X0.5 14.0 114.6 185.0 20
49519 TRONIC 1-CY 16X0.5 15.5 154.0 225.0 20
49520 TRONIC 1-CY 32X0.5 21.5 308.0 440.0 20
Technical Data
  • Special PVC conductor insulation, adapted to DIN VDE 0812
  • Temperature Range
    Flexing
    -5°C to +80°C (+23°F to +176°F)
    Fixed Installation
    -40°C to +80°C (-40°F to +176°F)
  • Nominal Voltage
    0.25 mm² 250 V
    0.50 mm² 350 V
  • Test Voltage (conductor/shield)
    0.25 mm² 800 V
    0.50 mm² 1200 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Minimum Bending Radius
    Flexing 10x cable Ø
    Fixed Installation 5x cable Ø
  • Radiation Resistance
    Up to 80x106 cJ/kg (up to 80 Mrad)
Approvals
RoHSCE VDE
Cable Construction
  • Bare copper, fine wire conductors, to DIN VDE 0295 cl. 5, BS 6360 cl. 5 (for 0.5 mm²) 0.25 mm² to DIN VDE 0812
  • Strand make-up
    0.25 mm² 14x0.15 mm
    0.50 mm² 16x0.20 mm
  • Special PVC conductor insulation YI2, to DIN VDE 0207 part 4
  • Color coded to DIN 47100
  • Each conductor individually copper spirally shielded, approx. 85% coverage
  • Conductors stranded in layers with optimal lay-length
  • Special PVC outer jacket YM2, to DIN VDE 0207 part 5
  • Color: Gray (RAL 7001)
Application
The individually shielded, flexible cable is ideal for use in data and impulse transfer in computers, communication systems and external units and offer interference-free data flow for all measuring and command functions. This cable type is widely used in the machine and steel producing industry as well as for traffic signals and data processing areas.
EMI = Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of the copper braiding on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • Extensively oil resistant
  • For chemical resistance, see table technical information
  • PVC self-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
