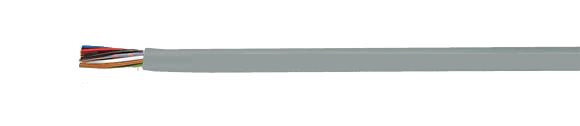

Data & Computer Cable: TRONIC (LiYY)

Flexible, Color Coded to DIN 47100

Hi-Tech Controls, Inc, European wires and cables

Hi-Tech Controls, Special PVC Data Cables, European   TRONIC (LiYY), Flexible, Color Coded to DIN 47100
AWG Selection
26
26
24
24
22
22
20
20
18
18
17
17
16
16
Part-No. Description & No. Conductors Xcross-sec. mm2 Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
18001 TRONIC 2X0.14   3.3 2.7 13.0 26
18002 TRONIC 3X0.14 3.5 4.0 16.0 26
18003 TRONIC 4X0.14 3.7 5.4 19.0 26
18004 TRONIC 5X0.14 4.0 6.7 22.0 26
18005 TRONIC 6X0.14 4.3 8.1 25.0 26
18006 TRONIC 7X0.14 4.3 9.4 28.0 26
18007 TRONIC 8X0.14 5.1 10.7 35.0 26
18008 TRONIC 10X0.14 5.6 13.4 41.0 26
18009 TRONIC 12X0.14 5.7 16.1 48.0 26
18010 TRONIC 14X0.14 6.0 18.8 53.0 26
18011 TRONIC 16X0.14 6.5 21.5 59.0 26
18012 TRONIC 18X0.14 6.8 24.2 65.0 26
18013 TRONIC 20X0.14 7.1 26.9 70.0 26
18014 TRONIC 21X0.14 7.1 28.2 77.0 26
18015 TRONIC 24X0.14 7.5 32.3 87.0 26
18117 TRONIC 25X0,14 7.7 33.6 91.0 26
18016 TRONIC 27X0.14 7.7 36.3 97.0 26
18017 TRONIC 30X0.14 8.5 40.3 108.0 26
18018 TRONIC 32X0.14 8.8 43.0 114.0 26
18019 TRONIC 36X0.14 9.3 48.4 126.0 26
18020 TRONIC 40X0.14 9.6 54.0 139.0 26
18021 TRONIC 42X0.14 9.9 56.0 146.0 26
18022 TRONIC 44X0.14 10.4 59.0 153.0 26
18023 TRONIC 48X0.14 10.5 65.0 164.0 26
18024 TRONIC 52X0.14 11.0 70.0 173.0 26
18025 TRONIC 56X0.14 11.3 75.0 187.0 26
18026 TRONIC 61X0.14 11.6 82.0 204.0 26
18027 TRONIC 80X0.14 13.0 108.0 280.0 26
18028 TRONIC 100X0.14 14.7 135.0 370.0 26
18029 TRONIC 2X0.25   3.8 4.8 18.0 24
18030 TRONIC 3X0.25 3.9 7.2 22.0 24
18031 TRONIC 4X0.25 4.3 9.6 26.0 24
18032 TRONIC 5X0.25 4.7 12.0 30.0 24
18033 TRONIC 6X0.25 5.3 14.4 36.0 24
18034 TRONIC 7X0.25 5.3 16.8 42.0 24
18035 TRONIC 8X0.25 5.7 19.2 49.0 24
18036 TRONIC 10X0.25 6.6 24.0 57.0 24
18037 TRONIC 12X0.25 6.8 28.8 66.0 24
18038 TRONIC 14X0.25 7.2 33.6 75.0 24
18039 TRONIC 16X0.25 7.6 38.4 84.0 24
18040 TRONIC 18X0.25 8.1 43.2 72.0 24
18114 TRONIC 19X0.25 8.1 46.0 84.0 24
18041 TRONIC 20X0.25 8.6 48.0 101.0 24
18042 TRONIC 21X0.25 8.6 50.0 107.0 24
18043 TRONIC 24X0.25 9.4 60.0 120.0 24
18118 TRONIC 25X0.25 9.5 61.0 132.0 24
18044 TRONIC 27X0.25 9.5 65.0 140.0 24
18045 TRONIC 30X0.25 10.3 72.0 156.0 24
18046 TRONIC 32X0.25 10.9 77.0 164.0 24
18047 TRONIC 36X0.25 11.3 86.0 182.0 24
18115 TRONIC 37X0.25 11.3 89.0 190.0 24
18048 TRONIC 40X0.25 11.6 96.0 200.0 24
18049 TRONIC 42X0.25 12.0 101.0 211.0 24
18050 TRONIC 44X0.25 12.6 106.0 225.0 24
18051 TRONIC 48X0.25 12.7 115.0 245.0 24
18052 TRONIC 52X0.25 13.3 125.0 263.0 24
18053 TRONIC 56X0.25 13.9 134.0 280.0 24
18054 TRONIC 61X0.25 14.3 146.0 305.0 24
18055 TRONIC 80X0.25 16.5 192.0 450.0 24
18056 TRONIC 100X0.25 18.2 240.0 590.0 24
18057 TRONIC 2X0.34   4.2 6.5 22.0 22
18058 TRONIC 3X0.34 4.4 9.8 30.0 22
18059 TRONIC 4X0.34 4.8 13.1 43.0 22
18060 TRONIC 5X0.34 5.4 16.3 54.0 22
18061 TRONIC 6X0.34 5.9 19.6 58.0 22
18062 TRONIC 7X0.34 5.9 22.8 61.0 22
18063 TRONIC 8X0.34 7.0 26.1 73.0 22
18064 TRONIC 10X0.34 7.6 32.6 82.0 22
18065 TRONIC 12X0.34 7.7 39.2 102.0 22
18066 TRONIC 14XO.34 8.4 45.7 108.0 22
18067 TRONIC 16X0.34 8.8 52.0 126.0 22
18068 TRONIC 18X0.34 9.3 59.0 143.0 22
18069 TRONIC 20X0.34 9.9 65.0 160.0 22
18070 TRONIC 21X0.34 9.9 69.0 166.0 22
18071 TRONIC 24X0.34 10.5 78.0 186.0 22
18096 TRONIC 25X0.34 10.7 82.0 192.0 22
18072 TRONIC 27X0.34 10.7 88.0 206.0 22
18073 TRONIC 30X0.34 11.8 98.0 226.0 22
18074 TRONIC 32X0.34 11.8 104.0 245.0 22
18075 TRONIC 36X0.34 12.9 118.0 285.0 22
18116 TRONIC 37X0.34 12.9 121.0 292.0 22
18076 TRONIC 40X0.34 13.3 131.0 318.0 22
18077 TRONIC 42X0.34 14.0 137.0 330.0 22
18078 TRONIC 44X0.34 14.0 144.0 370.0 22
18079 TRONIC 48X0.34 14.7 157.0 405.0 22
18080 TRONIC 52X0.34 15.4 170.0 430.0 22
18081 TRONIC 53X0.34 15.4 183.0 440.0 22
18082 TRONIC 61X0.34 16.3 199.0 610.0 22
18083 TRONIC 80X0.34 18.8 264.0 880.0 22
18084 TRONIC 100X0.34 21.0 327.0 1050.0 22
18085 TRONIC 2X0.5   4.6 9.6 40.0 20
18086 TRONIC 3X0.5 4.8 14.4 46.0 20
18087 TRONIC 4X0.5 5.4 19.2 55.0 20
18088 TRONIC 5X0.5 5.9 24.0 64.0 20
18089 TRONIC 6X0.5 6.4 28.8 73.0 20
18090 TRONIC 7X0.5 6.4 33.6 81.0 20
18091 TRONIC 8X0.5 7.2 38.4 97.0 20
18092 TRONIC 10X0.5 8.4 48.0 116.0 20
18093 TRONIC 12X0.5 8.4 58.0 135.0 20
18103 TRONIC 16X0.5 10.0 77.0 168.0 20
18101 TRONIC 20X0.5 11.2 96.0 213.0 20
18094 TRONIC 24X0.5 11.8 116.0 241.0 20
18102 TRONIC 30X0.5 13.2 144.0 303.0 20
18095 TRONIC 40X0.5 15.2 192.0 391.0 20
18104 TRONIC 2X0.75   5.2 14.4 47.0 18
18097 TRONIC 3X0.75 5.4 21.6 54.0 18
18098 TRONIC 4X0.75 5.9 29.0 66.0 18
18099 TRONIC 5X0.75 6.7 36.0 80.0 18
18100 TRONIC 7X0.75 7.3 50.0 110.0 18
18105 TRONIC 8X0.75 8.6 58.0 125.0 18
18106 TRONIC 10X0.75 9.6 72.0 148.0 18
18107 TRONIC 12X0.75 9.7 86.0 176.0 18
18108 TRONIC 16X0.75 11.1 115.0 220.0 18
18109 TRONIC 20X0.75 12.4 144.0 276.0 18
18110 TRONIC 2X1.0   5.5 19.2 56.0 17
18111 TRONIC 3X1.0 5.8 29.0 71.0 17
18112 TRONIC 2X1.5 6.2 29.0 75.0 16
18113 TRONIC 3X1.5   6.7 43.0 90.0 16
Technical Data
  • Special PVC data cables, adapted to DIN VDE 0245, 0812
  • Temperature Range
    Flexing
    -5°C to +80°C (+23°F to +176°F)
    Fixed Installation
    -40°C to +80°C (-40°F to +176°F)
  • Nominal Voltage
    (Not for purposes of high current and power installation)
    0.14 mm² = 350 V
    0.25 mm² = 500 V
  • Test Voltage
    Up to 0.25 mm² 1200 V
    From 0.34 mm² 2000 V
  • Breakdown Voltage
    Up to 0.25 mm² 2400 V
    From 0.34 mm² 4000 V
  • Insulation Resistance
    Min. 20 MOhm Xkm
  • Capacitance (approx. value) at 800 Hz
    0.14 mm² 120 pF/m
    0.25 mm² 150 pF/m
  • Inductance approx. 0.65 mH/km
  • Impedance approx. 78 Ohm
  • Minimum Bending Radius
    Flexing 7.5Xcable Ø
    Fixed Installation 4Xcable Ø
  • Radiation Resistance
    Up to 80x106 cJ/kg (up to 80 Mrad)
Approvals
RoHSCE PCT VDE
Cable Construction
  • Bare copper, fine wire conductors, bunch stranded to DIN VDE 0295 cl. 5 and IEC 60228 cl. 5
  • Special PVC conductor insulation TI2, to DIN VDE 0281 part 1
  • Conductor make-up for
    0.14 mm² = 18x0.1 mm
    0.25 mm² = 14x0.15 mm
    0.34 mm² = 7x0.25 mm
  • Color coded to DIN 47100, but without color repetition
  • Conductors stranded in layers with optimal lay-length
  • Special PVC outer jacket TM2, to DIN VDE 0281 part 1
  • Color: Gray (RAL 7001)
Application
These cables are used for flexible use with free movement without tensile stress or forced movements in dry, moist and wet rooms but not suitable for open air, wherever the construction requirements call for a minimum outer diameter, TRONIC is the suitable cable to use. This applies especially to such areas as tool making and machine industries as well as electronic, computer, measurement and control sectors.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • Extremely oil resistant
  • For chemical resistance - see table technical information
  • PVC self-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
  • European-TRONIC is also available in paired version (e.g. European-PAAR-TRONIC 20x2x0.14 mm²)
  • Shielded type: TRONIC-CY (LiY-CY)
Cable Accessories
  • Coming Soon!
