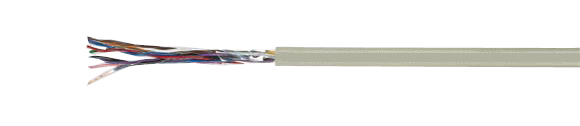

Data & Computer Cable: PAAR-TRONIC

Flexible, Unshielded, Color Coded to DIN 47100

Hi-Tech Controls, Inc, European wires and cables

Special PVC Data Cables, PAAR-TRONIC, Flexible Shielded, Color Coded to DIN 47100, Hi-Tech Controls, , RoHS Approved, RoHS Compliant
AWG Selection
26
26
24
24
Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
19001 PAAR-TRONIC 1x2x0.14  3.5 2.7 20.0 26
19002 PAAR-TRONIC 2X2X0.14 5.1 5.4 25.0 26
19003 PAAR-TRONIC 3X2X0.14 5.2 8.0 31.0 26
19004 PAAR-TRONIC 4X2X0.14 5.6 10.7 38.0 26
19005 PAAR-TRONIC 5X2X0.14 6.6 13.4 45.0 26
19006 PAAR-TRONIC 6X2X0.14 6.9 16.1 50.0 26
19007 PAAR-TRONIC 7X2X0.14 6.9 18.8 57.0 26
19008 PAAR-TRONIC 8X2X0.14 7.5 21.5 64.0 26
19009 PAAR-TRONIC 10X2X0.14 8.6 26.9 78.0 26
19010 PAAR-TRONIC 11X2X0.14 8.7 29.5 86.0 26
19011 PAAR-TRONIC 12X2X0.14 8.9 32.3 94.0 26
19012 PAAR-TRONIC 14X2X0.14 9.6 37.6 105.0 26
19013 PAAR-TRONIC 15X2X0.14 9.8 40.3 108.0 26
19014 PAAR-TRONIC 16X2X0.14 10.1 43.0 110.0 26
19015 PAAR-TRONIC 18X2X0.14 10.4 48.4 119.0 26
19016 PAAR-TRONIC 2OX2X0.14 10.8 54.0 130.0 26
19017 PAAR-TRONIC 22X2X0.14 11.6 59.0 150.0 26
19018 PAAR-TRONIC 24X2X0.14 12.4 65.0 170.0 26
19019 PAAR-TRONIC 25X2X0.14 12.5 67.0 180.0 26
19020 PAAR-TRONIC 26X2X0.14 12.5 70.0 184.0 26
19021 PAAR-TRONIC 27X2X0.14 12.7 73.0 188.0 26
19022 PAAR-TRONIC 28X2X0.14 12.8 75.0 192.0 26
19023 PAAR-TRONIC 30X2X0.14 13.1 81.0 200.0 26
19024 PAAR-TRONIC 32X2X0.14 13.5 86.0 224.0 26
19025 PAAR-TRONIC 34X2X0.14 14.0 91.0 247.0 26
19026 PAAR-TRONIC 36X2X0.14 14.2 97.0 260.0 26
19027 PAAR-TRONIC 38X2X0.14 14.3 102.0 272.0 26
19028 PAAR-TRONIC 40X2X0.14 15.0 108.0 294.0 26
19029 PAAR-TRONIC 44X2X0.14 15.9 118.0 334.0 26
19030 PAAR-TRONIC 45X2X0.14 15.9 121.0 342.0 26
19031 PAAR-TRONIC 50X2X0.14 16.5 134.0 387.0 26
19032 PAAR-TRONIC 52X2X0.14 16.9 140.0 403.0 26
19033 PAAR-TRONIC 55X2X0.14 17.5 148.0 427.0 26
19034 PAAR-TRONIC 1X2X0.25  4.0 5.0 32.0 24
19035 PAAR-TRONIC 2X2X0.25 6.0 10.0 37.0 24
19036 PAAR-TRONIC 3X2X0.25 6.3 15.0 47.0 24
19037 PAAR-TRONIC 4X2X0.25 6.8 20.0 58.0 24
19038 PAAR-TRONIC 5X2X0.25 7.8 25.0 70.0 24
19039 PAAR-TRONIC 6X2X0.25 8.3 30.0 80.0 24
19040 PAAR-TRONIC 7X2X0.25 8.3 35.0 89.0 24
19041 PAAR-TRONIC 8X2X0.25 9.3 40.0 99.0 24
19042 PAAR-TRONIC 10X2X0.25 10.5 50.0 114.0 24
19043 PAAR-TRONIC 11X2X0.25 10.6 55.0 126.0 24
19044 PAAR-TRONIC 12X2X0.25 10.8 60.0 137.0 24
19045 PAAR-TRONIC 14X2X0.25 11.6 70.0 161.0 24
19046 PAAR-TRONIC 15X2X0.25 12.0 75.0 174.0 24
19047 PAAR-TRONIC 16X2X0.25 12.5 80.0 187.0 24
19048 PAAR-TRONIC 18X2X0.25 12.8 90.0 212.0 24
19049 PAAR-TRONIC 20X2X0.25 13.3 100.0 234.0 24
19050 PAAR-TRONIC 22X2X0.25 14.0 110.0 250.0 24
19051 PAAR-TRONIC 24X2X0.25 15.0 120.0 280.0 24
19052 PAAR-TRONIC 25X2X0.25 15.3 125.0 300.0 24
19053 PAAR-TRONIC 26X2X0.25 15.3 130.0 320.0 24
19054 PAAR-TRONIC 27X2X0.25 15.5 135.0 330.0 24
19055 PAAR-TRONIC 28X2X0.25 15.7 140.0 345.0 24
19056 PAAR-TRONIC 30X2X0.25 16.1 150.0 370.0 24
19057 PAAR-TRONIC 32X2X0.25 16.5 160.0 410.0 24
19058 PAAR-TRONIC 34X2X0.25 17.2 170.0 425.0 24
19059 PAAR-TRONIC 36X2X0.25 17.3 180.0 440.0 24
19060 PAAR-TRONIC 38X2X0.25 17.6 190.0 480.0 24
19061 PAAR-TRONIC 40X2X0.25 18.3 200.0 530.0 24
19062 PAAR-TRONIC 44X2X0.25 19.7 220.0 580.0 24
19063 PAAR-TRONIC 45X2X0.25 19.7 225.0 600.0 24
19064 PAAR-TRONIC 50X2X0.25 20.4 250.0 650.0 24
19065 PAAR-TRONIC 52X2X0.25 20.8 260.0 670.0 24
19066 PAAR-TRONIC 55X2X0.25 21.5 275.0 790.0 24
19067 PAAR-TRONIC 1x2x0.34 4.4 6.5 36.0 22
19068 PAAR-TRONIC 2x2x0.34 6.9 13.1 42.0 22
19069 PAAR-TRONIC 3x2x0.34 7.0 19.6 50.0 22
19070 PAAR-TRONIC 4x2x0.34 7.8 26.1 61.0 22
19071 PAAR-TRONIC 1x2x0.5 4.6 9.6 42.0 20
19072 PAAR-TRONIC 2x2x0.5 7.6 19.2 51.0 20
19073 PAAR-TRONIC 3x2x0.5 7.7 28.8 62.0 20
19074 PAAR-TRONIC 4x2x0.5 8.6 38.4 73.0 20
19075 PAAR-TRONIC 1x2x0.75 5.2 14.4 47.0 18
19076 PAAR-TRONIC 2x2x0.75 8.5 28.8 59.0 18
19077 PAAR-TRONIC 3x2x0.75 8.6 43.2 74.0 18
19078 PAAR-TRONIC 4x2x0.75 9.6 57.6 93.0 18
Technical Data
  • Special PVC data cables, adapted to DIN VDE 0812, 0814
  • Temperature Range
    Flexing
    -5°C to +80°C (+23°F to +176°F)
    Fixed Installation
    -30°C to +80°C (-22°F to +176°F)
  • Nominal Voltage 250 V
  • Test Voltage 1200 V
  • Breakdown Voltage min. 2400 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Capacitance (approx.-value) at 800 Hz
    Conductor/conductor 0.14 mm² = 120 pF/m
    Conductor/conductor 0.25 mm² = 150 pF/m
  • Load 0.14 mm² = 1.5 A
    0.25 mm² = 2.5 A
  • Inductance approx. 0.65 mH/km
  • Impedance approx. 78 Ohm
  • K1-coupling approx. 300 pF/100 m
  • Minimum Bending Radius
    Flexing 7.5x cable Ø
    Fixed Installation 4x cable Ø
  • Radiation Resistance
    Up to 80x106 cJ/kg (up to 80 Mrad)
Approvals
RoHSCE pct VDE
Cable Construction
  • Bare copper, fine wire conductors, bunch stranded to DIN VDE 0295 cl. 5 and IEC 60228 cl. 5
  • Special PVC conductor insulation YI2, to DIN VDE 0207 part 4
  • Color coded to DIN 47100
  • Conductors stranded in pairs with optimal lay-length
  • Pairs stranded in layers with optimal lay-length
  • Conductor wrapping with foil
  • Special PVC outer jacket YM2, to DIN VDE 0207 part 5
  • Jacket color: Gray (RAL 7032)
Application
These data control cables are used for flexible use with free movement without tensile stress or forced movements in dry, moist and wet rooms but not suitable for open air.
PAAR-TRONIC is the perfect cable for use in areas where a small diameter is essential to complete wiring. E.g. as a control and signal cable in measuring instruments, computers, signal transfer etc. This cable is suitable only for low load application.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • Extremely oil resistant
  • For chemical resistance - see table technical information
  • PVC self-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
  • Shielded type: PAAR-TRONIC-CY
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
