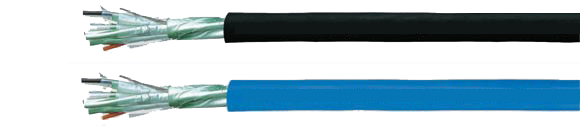

Data & Computer Cable: RE-2Y(St)Yv PiMF

Instrumentation Cable, Pairs Shielded, Reinforced Outer Jacket

Hi-Tech Controls, Inc, European wires and cables

RE-2Y(St)Yv PiMF, Instrumentation cable, pairs shielded, reinforced outer jacket, Hi-Tech Controls,
Part-No. Description & No. Conductors x cross-sec. mm2, Color Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
20115 RE-2Y(St)Yv PIMF 2X2X0.5 black   12.0 35.0 128.0 20
20116 RE-2Y(St)Yv PIMF 4X2X0.5 black 13.2 60.0 170.0 20
21535 RE-2Y(St)Yv PIMF 6X2X0.5 black 14.0 82.0 215.0 20
20117 RE-2Y(St)Yv PIMF 8X2X0.5 black 14.9 121.0 246.0 20
20118 RE-2Y(St)Yv PIMF 10X2X0.5 black 16.7 136.0 261.0 20
20119 RE-2Y(St)Yv PIMF 12X2X0.5 black 17.6 161.0 351.0 20
20120 RE-2Y(St)Yv PIMF 16X2X0.5 black 19.8 212.0 430.0 20
20121 RE-2Y(St)Yv PIMF 20X2X0.5 black 21.5 262.0 496.0 20
20122 RE-2Y(St)Yv PIMF 24X2X0.5 black 23.6 313.0 604.0 20
20123 RE-2Y(St)Yv PIMF 36X2X0.5 black 27.0 465.0 850.0 20
20124 RE-2Y(St)Yv PIMF 48X2X0.5 black 32.2 616.0 1115.0 20
20133 RE-2Y(St)Yv PIMF 2X2X1.3 black 12.7 68.0 184.0 -
20134 RE-2Y(St)Yv PIMF 4X2X1.3 black 15.2 124.0 269.0 -
21536 RE-2Y(St)Yv PIMF 6X2X1.3 black 16.7 178.0 370.0 -
20135 RE-2Y(St)Yv PIMF 8X2X1.3 black 19.1 239.0 442.0 -
20136 RE-2Y(St)Yv PIMF 12X2X1.3 black 21.4 353.0 593.0 -
20137 RE-2Y(St)Yv PIMF 16X2X1.3 black 24.7 468.0 789.0 -
20138 RE-2Y(St)Yv PIMF 24X2X1.3 black 29.4 697.0 1104.0 -
21537 RE-2Y(St)Yv PIMF 2X2X0.5 blue   12.0 35.0 128.0 20
21538 RE-2Y(St)Yv PIMF 4X2X0.5 blue 13.2 60.0 170.0 20
21539 RE-2Y(St)Yv PIMF 6X2X0.5 blue 14.0 82.0 215.0 20
21540 RE-2Y(St)Yv PIMF 8X2X0.5 blue 14.9 121.0 246.0 20
21541 RE-2Y(St)Yv PIMF 10X2X0.5 blue 16.7 136.0 261.0 20
21542 RE-2Y(St)Yv PIMF 12X2X0.5 blue 17.6 161.0 351.0 20
21543 RE-2Y(St)Yv PIMF 16X2X0.5 blue 19.8 212.0 430.0 20
21544 RE-2Y(St)Yv PIMF 20X2X0.5 blue 21.5 262.0 496.0 20
21545 RE-2Y(St)Yv PIMF 24X2X0.5 blue 23.6 313.0 604.0 20
21546 RE-2Y(St)Yv PIMF 36X2X0.5 blue 27.0 465.0 850.0 20
21547 RE-2Y(St)Yv PIMF 48X2X0.5 blue 32.3 616.0 1115.0 20
21548 RE-2Y(St)Yv PIMF 2X2X1.3 blue 12.7 68.0 184.0 -
21549 RE-2Y(St)Yv PIMF 4X2X1.3 blue 15.2 124.0 269.0 -
21550 RE-2Y(St)Yv PIMF 6X2X1.3 blue 16.7 178.0 370.0 -
21551 RE-2Y(St)Yv PIMF 8X2X1.3 blue 19.1 239.0 442.0 -
21552 RE-2Y(St)Yv PIMF 12X2X1.3 blue 21.4 353.0 593.0 -
21553 RE-2Y(St)Yv PIMF 16X2X1.3 blue 24.7 468.0 789.0 -
21554 RE-2Y(St)Yv PIMF 24X2X1.3 blue 29.4 697.0 1104.0 -
Technical Data
  • Special conductor insulation of PE
  • Conductor Resistance
    0.5 mm²: max. 39.2 Ohm/km
    1.3 mm²: max. 14.2 Ohm/km
  • Temperature Range
    Flexing
    -5°C to +50°C (+23°F to +122°F)
    Fixed Installation
    -40°C to +70°C (-40°F to +158°F)
  • Nominal Voltage max. 300 V
  • Test Voltage
    Conductor/conductor 2000 V
    Conductor/shield 1000 V
  • Insulation Resistance
    Min. 5 GOhm x km
  • Mutual Capacitance
    (Nominal value at 800 Hz)
    Conductor/conductor 0.5 mm²: 75 nF/km
    Conductor/conductor 1.3 mm²: 100 nF/km
  • Inductance max. 0.75 mH/km
  • Cross-Talk Attenuation
    Min. 1.02 dB/km at 60 kHz
  • Minimum Bending Radius
    Approx. 7.5x cable Ø
Approvals
RoHSCE PCT
Cable Construction
  • Bare copper stranded wires
    0.5 mm² (7x0.3 mm)
    1.3 mm² (7x0.49 mm)
  • Conductor insulation of PE
  • Conductors colors with numbering
    a-conductor black
    b-conductor white
    with number print 1/1, 2/2, etc.
  • Conductors twisted in pairs with optimum pitch
  • PiMF (pair in metal foil):
    foil taping, drain-wire
  • Copper bare 0.6 mm Ø, plastic coated aluminum foil and plastic foil
  • PiMFe stranded in layer,
    1 communication conductor 0.5 mm²,
  • PE-insulated orange (communication conductor for multi conductor version)
  • Electrostatic shield (St) of plastics-coated metal foil and tinned drain-wire 0.5 mm² (7x0.3 mm)
  • PVC outer jacket, reinforced: Black (RAL 9005) or Blue (RAL 5015)
  • wall-thickness to DIN VDE 0816, part 1, table 7, col. 1
Application
Instrumentation cables are used in data processing and process control. The individual shielding of the pairs guarantee high cross-talk attenuation. The electrostatic shield protects the shielded pairs against outer electrostatic interference fields. Low level of line attenuations and low mutual capacitances enable log transmission distances and fast pulse acceleration. Instrumentation cables are suitable for fixed installations in damp locations, in open spaces and for underground laying.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • PVC jacket self-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting property of lacquers
Note
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
  • Copper weight including communication conductor and drain-wire
Cable Accessories
  • Coming Soon!
