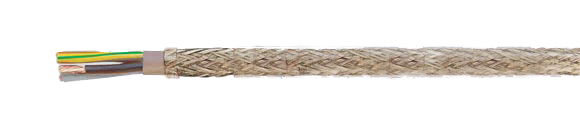

Data & Computer Cable: Y-CY-JB

Flexible, Copper Shielded, Transparent, EMI Preferred Type

Hi-Tech Controls, Inc, European wires and cables

AWG Selection
20
20
18
18
17
17
16
16
14
14
12
12
10
10
8
8
6
6
4 4 2 2 1 1 2/0 2/0 3/0 3/0 4/0 4/0 300 kcmil 300 kcmil 350 kcmil 350 kcmil
Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
16121 Y-CY-OB 2X0.5   7.1 41.0 67.0 20
16122 Y-CY-JB 3G0.5 7.4 45.0 83.0 20
16123 Y-CY-JB 4G0.5 8.0 54.0 94.0 20
16124 Y-CY-JB 5G0.5 8.5 66.0 108.0 20
16125 Y-CY-0B 2X0.75   7.7 46.0 87.0 18
16126 Y-CY-JB 3G0.75 8.0 57.0 98.0 18
16127 Y-CY-JB 4G0.75 8.5 63.0 113.0 18
16128 Y-CY-JB 5G0.75 9.3 76.0 130.0 18
16129 Y-CY-OB 2X1   8.0 54.0 97.0 17
16130 Y-CY-JB 3G1 8.3 64.0 103.0 17
16131 Y-CY-JB 4G1 9.0 76.0 146.0 17
16132 Y-CY-JB 5G1 9.7 89.0 169.0 17
16133 Y-CY-OB 2X1.5   8.6 64.0 130.0 16
16134 Y-CY-JB 3G1.5 9.2 82.0 152.0 16
16135 Y-CY-JB 4G1.5 9.8 99.0 168.0 16
16136 Y-CY-JB 5G1.5 10.8 123.0 202.0 16
16137 Y-CY-OB 2X2.5   11.3 110.0 180.0 14
16138 Y-CY-JB 3G2.5 11.8 148.0 216.0 14
16139 Y-CY-JB 4G2.5 12.7 169.0 267.0 14
16140 Y-CY-JB 5G2.5 14.1 220.0 347.0 14
16141 Y-CY-OB 2X4   13.4 124.0 302.0 12
16142 Y-CY-JB 3G4 14.2 178.0 340.0 12
16143 Y-CY-JB 4G4 15.3 234.0 410.0 12
16144 Y-CY-JB 5G4 16.8 284.0 502.0 12
16145 Y-CY-OB 2X6   14.7 176.0 350.0 10
16146 Y-CY-JB 3G6 15.4 245.0 450.0 10
16147 Y-CY-JB 4G6 16.8 316.0 559.0 10
16148 Y-CY-JB 5G6 18.6 442.0 702.0 10
16149 Y-CY-OB 2X10   18.0 260.0 500.0 8
16150 Y-CY-JB 3G10 19.1 367.0 750.0 8
16151 Y-CY-JB 4G10 21.1 21.1 1020.0 8
16152 Y-CY-JB 5G10 23.3 604.0 1115.0 8
16153 Y-CY-JB 4G16   25.3 807.0 1380.0 6
16154 Y-CY-JB 5G16 28.2 940.0 1553.0 6
16469 Y-CY-JB 4G25   31.2 1169.0 1890.0 4
16155 Y-CY-JB 5G25 34.5 1420.0 2270.0 4
16470 Y-CY-JB 4G35   33.8 1680.0 2390.0 2
16156 Y-CY-JB 5G35 37.5 2020.0 2885.0 2
16471 Y-CY-JB 4G50   40.2 2370.0 3315.0 1
16119 Y-CY-JB 5G50 44.8 2880.0 4150.0 1
16472 Y-CY-JB 4G70   45.9 3257.0 4600.0 2/0
16473 Y-CY-JB 4G95   51.3 4060.0 6060.0 3/0
16474 Y-CY-JB 4G120   56.5 5231.0 7315.0 4/0
16247 Y-CY-JB 4G150   64.6 7760.0 9340.0 300 kcmil
16319 Y-CY-JB 4G185   67.4 8104.0 11120.0 350 kcmil
Technical Data
  • Special PVC control cables, adapted to E DIN VDE 0281 part 13
  • Conductor Resistance
    To DIN VDE 0295
  • Temperature Range
    Flexing
    -5°C to +80°C (+23°F to +176°F)
    Fixed Installation
    -40°C to +80°C (-40°F to +176°F)
  • Nominal Voltage
    U0/U 300/500 V to 1.5 mm²
    U0/U 450/750 V at 2.5 mm²
  • Test Voltage 4000 V
  • Breakdown Voltage min. 8000 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Mutual Capacitance according to
    different cross-sections
    0.5 mm² to 2.5 mm²:
    Conductor/conductor approx. 150 nF/km
    Conductor/shield approx. 270 nF/km
  • Coupling Resistance
    Max. 250 Ohm/km
  • Minimum Bending Radius
    Flexing 10x cable Ø
    Fixed Installation 5x cable Ø
  • Radiation Resistance
    Up to 80x106 cJ/kg (up to 80 Mrad)
Approvals
RoHSCE VDE pct
Cable Construction
  • Bare copper, fine wire conductors bunch stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
  • Conductor insulation of special PVC Z 7225
  • Conductor color coded to JB/OB color code
  • Green-yellow grounding in the outer layer (3 conductors and above)
  • Conductors stranded in layers with optimal lay-length
  • Special PVC inner jacket
  • Tinned copper, braided shield, approx. 85% coverage
  • Transparent special PVC outer jacket
Application
For use as a data and control cable in machinery, computer systems etc. as well as a signal cable for electronics. The high level of shielding ensures a high degree of interference protection. The shielding density assures disturbance-free transmission of all signals and impulses. The PVC inner jacket of those cables raise the mechanical stress. The applied transparent PVC outer jacket accentuates the optical view of the tinned copper braid. These cables are suitable for flexible use for medium mechanical stresses with free movement. The dense shielding assures disturbance-free transmission of all signals and impulses.
EMI = Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of the cooper braiding on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • Extensively oil resistant
  • For Chemical Resistance, see table Technical Information
  • PVC self-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • G = with green-yellow grounding
    x = without green-yellow grounding (OB)
  • by 5 conductors with VDE Reg. No. 7032
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
  • Unshielded type: JB-500, JB-750
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
