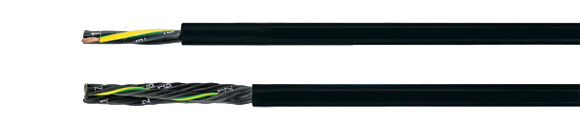

Control Cable: MULTISPEED®500-PUR

Safety Against High Bending in Drag Chain Systems, Low Torsion, Halogen-Free

Hi-Tech Controls, Inc, European & Domestic cable

Hi-Tech Controls,  - MULTISPEED 500-PUR, Highly Flexible, Safety Against High Bending in Drag Chain Systems, Low Torsion, halogen free, Special Cables for Drag Chains, Control Cable for Drag Chain, Control Cable
AWG Selection
20
20
18
18
17
17
16
16
14
14
Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
24119 MULTISPEED-500-PUR 2X0.5  4.3 9.6 41.0 20
24120 MULTISPEED-500-PUR 3G0.5 4.6 14.4 48.0 20
24121 MULTISPEED-500-PUR 4G0.5 5.0 19.0 62.0 20
24122 MULTISPEED-500-PUR 5G0.5 5.4 24.0 70.0 20
24123 MULTISPEED-500-PUR 7G0.5 8.9 33.6 88.0 20
24124 MULTISPEED-500-PUR 12G0.5 9.7 58.0 131.0 20
24125 MULTISPEED-500-PUR 18G0.5 11.8 86.0 204.0 20
24126 MULTISPEED-500-PUR 25G0.5 13.9 120.0 266.0 20
24127 MULTISPEED-500-PUR 3G0.75  5.2 21.6 51.0 18
24128 MULTISPEED-500-PUR 4G0.75 5.6 29.0 68.0 18
24129 MULTISPEED-500-PUR 5G0.75 6.3 36.0 73.0 18
24130 MULTISPEED-500-PUR 7G0.75 10.3 50.0 92.0 18
24131 MULTISPEED-500-PUR 12G0.75 11.0 86.0 170.0 18
24132 MULTISPEED-500-PUR 18G0.75 13.9 130.0 257.0 18
24133 MULTISPEED-500-PUR 25G0.75 15.9 180.0 280.0 18
24134 MULTISPEED-500-PUR 36G0.75 19.6 260.0 411.0 18
24135 MULTISPEED-500-PUR 42G0.75 21.5 302.0 608.0 18
24136 MULTISPEED-500-PUR 3G1  5.4 29.0 59.0 17
24137 MULTISPEED-500-PUR 4G1 5.9 38.0 71.0 17
24138 MULTISPEED-500-PUR 5G1 6.7 48.0 84.0 17
24139 MULTISPEED-500-PUR 7G1 11.1 67.0 111.0 17
24140 MULTISPEED-500-PUR 12G1 12.0 115.0 200.0 17
24141 MULTISPEED-500-PUR 18G1 14.8 173.0 286.0 17
24142 MULTISPEED-500-PUR 25G1 17.2 240.0 370.0 17
24143 MULTISPEED-500-PUR 3G1.5  6.4 43.0 81.0 16
24144 MULTISPEED-500-PUR 4G1.5 7.0 58.0 102.0 16
24145 MULTISPEED-500-PUR 5G1.5 7.8 72.0 121.0 16
24146 MULTISPEED-500-PUR 7G1.5 13.0 101.0 164.0 16
24147 MULTISPEED-500-PUR 12G1.5 14.2 173.0 293.0 16
24148 MULTISPEED-500-PUR 18G1.5 17.5 259.0 450.0 16
24149 MULTISPEED-500-PUR 25G1.5 20.1 360.0 631.0 16
24150 MULTISPEED-500-PUR 4G2.5  8.8 86.0 173.0 14
24151 MULTISPEED-500-PUR 5G2.5 9.8 120.0 220.0 14
24152 MULTISPEED-500-PUR 7G2.5 16.1 168.0 290.0 14
24153 MULTISPEED-500-PUR 12G2.5 17.8 288.0 504.0 14
24154 MULTISPEED-500-PUR 18G2.5 21.8 432.0 719.0 14
24155 MULTISPEED-500-PUR 25G2.5 24.4 600.0 940.0 14
Technical Data
  • Special drag chain cables for high mechanical stress in adapted to DIN VDE 0281 part 13, DIN VDE 0282 part 10
  • Temperature Range
    Flexing
    -30°C to +80°C (-22°F to +176°F)
    Fixed Installation
    -50°C to +80°C (-58°F to +176°F)
  • Nominal Voltage U0/U 300/500 V
  • Test Voltage 3000 V
  • Insulation Resistance
    Min. 100 MOhm x km
  • Minimum Bending Radius
    Flexing 7.5x cable Ø
    Fixed Installation 4x cable Ø
  • Radiation Resistance
    Up to 100x106 cJ/kg (up to 100 Mrad)
Approvals
RoHSCE RoHS
Cable Construction
  • Bare copper, fine wire conductors with short pitch length
  • Special TPE conductor insulation
  • Black conductors with continuous white numbering
  • Green-yellow grounding (3 conductors and above)
  • Stranding:
    < 7 conductors: conductors stranded in a layer with optimal lay-length around a filler as per construction
    > 7 conductors: conductors stranded with optimal lay-length to bunch-construction with low torsion strength, optimal selected short lay-length around a filler
  • Special-PVC outer jacket, especially resistant against fatigue strength, extruded as filler with pressure
  • Jacket color: Black (RAL 9005)
Application

For permanent application in drag chains for long distances, high and low speed of movements. These cables are installed in dry, moist and wet rooms and in open air with free movement without tensile stress or forced movements. These robust and abrasion resistant special control cables are installed there, where the problems appear for the application in permanent stresses e.g. in energy drag chains, industry robotics, production lines, automatic control systems and permanent movable machinery parts for multi-shift operation. These cables are installed everywhere, where high requirements for the flexibility, abrasion, oxygen and chemical resistance are necessary.
For applications which go beyond standard solutions, we recommend for our specially developed inquiry sheet for energy guiding systems.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.

Properties
  • PUR-jacket flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • Low adhesion
  • Halogen-Free
  • Oil-resistant
  • Better chemical resistance
  • UV and ozone resistance
  • Higher economical solution
  • Reduced Ø, results low weight of moving materials
  • High property of alternating bending strength
  • High resistant to mechanical strain
  • Long life durability due to low friction-resistance
  • High tensile strength, abrasion and impact resistant at low temperatures
  • Tear resistance and high stability
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • G = with green-yellow grounding
    x = without green-yellow earth conductor (OZ)
  • Shielded type: MULTISPEED® 500-C-PUR
Cable Accessories
  • Coming Soon!
