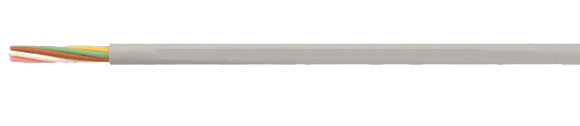

Control Cable: NANOFLEX® HC TRONIC

Flexible, Color Code to DIN 47100, Meter Marking

Hi-Tech Controls, Inc, European & Domestic cable

Nanoflex HC Tronic, Nanoflex, Hygenic Cable, 27164, 27165, 27166, 27167, 27168, 27169, 27170, 27171, 27172, 27173, 27174, 27175, 27176, 27177, 27178, 27179, 27180, 27181, 27182, 27183, 27184, 27185, 27186, 27187, 27188, 27189, 27190, 27191, 27192, 27193, 27194, 27195, 27196, 27197, 27198, 27199, 27200, 27201, 27202, 27203, 27204, 27205, 27206, 27207, 27208, 27209, 27210, 27211, 27212, 27213, 27214, 27215, 27216, 27217, 27218, 27219, 27220, 27221, 27222, 27223, 27224, 27225, 27226, 27227, 27228, 27229, 27230, 27231, 27232, 27233, 27234, Hi-Tech Controls, Hi Tech Controls,
Part-No. Description & No. Conductors x
cross-sec. mm2
Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
27164 NANOFLEX® HC TRONIC 2X0.14 3.3

3.0

13.0
27165 NANOFLEX® HC TRONIC 3X0.14 3.5 4.0 16.0
27166 NANOFLEX® HC TRONIC 4X0.14 3.7 5.0 19.0
27167 NANOFLEX® HC TRONIC 5X0.14 4.0 7.0 22.0
27168 NANOFLEX® HC TRONIC 6X0.14 4.3 8.0 25.0
27169 NANOFLEX® HC TRONIC 7X0.14 4.3 9.0 28.0
27170 NANOFLEX® HC TRONIC 8X0.14 5.1 11.0 35.0
27171 NANOFLEX® HC TRONIC 10X0.14 5.6 13.0 41.0
27172 NANOFLEX® HC TRONIC 12X0.14 5.7 16.0 48.0
27173 NANOFLEX® HC TRONIC 14X0.14 6.0 19.0 53.0
27174 NANOFLEX® HC TRONIC 16X0.14 6.5 22.0 59.0
27175 NANOFLEX® HC TRONIC 18X0.14 6.8 24.0 65.0
27176 NANOFLEX® HC TRONIC 20X0.14 7.1 27.0 70.0
27177 NANOFLEX® HC TRONIC 21X0.14 7.1 28.0 77.0
27178 NANOFLEX® HC TRONIC 24X0.14 7.5 32.0 87.0
27179 NANOFLEX® HC TRONIC 25X0.14 7.7 34.0 91.0
27180 NANOFLEX® HC TRONIC 2X0.25 3.8 5.0 18.0
27181 NANOFLEX® HC TRONIC 3X0.25 3.9 7.0 22.0
27182 NANOFLEX® HC TRONIC 4X0.25 4.3 10.0 26.0
27183 NANOFLEX® HC TRONIC 5X0.25 4.7 12.0 30.0
27184 NANOFLEX® HC TRONIC 6X0.25 5.3 14.0 36.0
27185 NANOFLEX® HC TRONIC 7X0.25 5.3 17.0 42.0
27186 NANOFLEX® HC TRONIC 8X0.25 5.7 19.0 49.0
27187 NANOFLEX® HC TRONIC 10X0.25 6.6 24.0 57.0
27188 NANOFLEX® HC TRONIC 12X0.25 6.8 29.0 66.0
27189 NANOFLEX® HC TRONIC 14X0.25 7.2 34.0 75.0
27190 NANOFLEX® HC TRONIC 16X0.25 7.6 38.0 84.0
27191 NANOFLEX® HC TRONIC 18X0.25 8.1 43.0 72.0
27192 NANOFLEX® HC TRONIC 19X0.25 8.1 46.0 84.0
27193 NANOFLEX® HC TRONIC 20X0.25 8.6 48.0 101.0
27194 NANOFLEX® HC TRONIC 21X0.25 8.6 50.0 107.0
27195 NANOFLEX® HC TRONIC 24X0.25 9.4 60.0 120.0
27196 NANOFLEX® HC TRONIC 25X0.25 9.5 61.0 132.0
27197 NANOFLEX® HC TRONIC 2X0.34 4.2 7.0 22.0
27198 NANOFLEX® HC TRONIC 3X0.34 4.4 10.0 30.0
27199 NANOFLEX® HC TRONIC 4X0.34 4.8 13.0 43.0
27200 NANOFLEX® HC TRONIC 5X0.34 5.4 16.0 54.0
27201 NANOFLEX® HC TRONIC 6X0.34 5.9 20.0 58.0
27202 NANOFLEX® HC TRONIC 7X0.34 5.9 23.0 61.0
27203 NANOFLEX® HC TRONIC 8X0.34 7.0 26.0 73.0
27204 NANOFLEX® HC TRONIC 10X0.34 7.6 33.0 82.0
27205 NANOFLEX® HC TRONIC 12X0.34 7.7 39.0 102.0
27206 NANOFLEX® HC TRONIC 14X0.34 8.4 46.0 108.0
27207 NANOFLEX® HC TRONIC 16X0.34 8.8 52.0 126.0
27208 NANOFLEX® HC TRONIC 18X0.34 9.3 59.0 143.0
27209 NANOFLEX® HC TRONIC 20X0.34 9.9 65.0 160.0
27210 NANOFLEX® HC TRONIC 21X0.34 9.9 69.0 166.0
27211 NANOFLEX® HC TRONIC 24X0.34 10.5 78.0 186.0
27212 NANOFLEX® HC TRONIC 25X0.34 10.7 82.0 192.0
27213 NANOFLEX® HC TRONIC 2X0.5 4.6 10.0 40.0
27214 NANOFLEX® HC TRONIC 3X0.5 4.8 14.0 46.0
27215 NANOFLEX® HC TRONIC 4X0.5 5.4 19.0 55.0
27216 NANOFLEX® HC TRONIC 5X0.5 5.9 24.0 64.0
27217 NANOFLEX® HC TRONIC 6X0.5 6.4 29.0 73.0
27218 NANOFLEX® HC TRONIC 7X0.5 6.4 34.0 81.0
27219 NANOFLEX® HC TRONIC 8X0.5 7.2 38.0 97.0
27220 NANOFLEX® HC TRONIC 10X0.5 8.4 48.0 116.0
27221 NANOFLEX® HC TRONIC 12X0.5 8.4 58.0 135.0
27222 NANOFLEX® HC TRONIC 16X0.5 10.0 77.0 168.0
27223 NANOFLEX® HC TRONIC 20X0.5 11.2 96.0 213.0
27224 NANOFLEX® HC TRONIC 24X0.5 11.8 116.0 241.0
27225 NANOFLEX® HC TRONIC 2X0.75 5.2

14.0

47.0
27226 NANOFLEX® HC TRONIC 3X0.75 5.4 22.0 54.0
27227 NANOFLEX® HC TRONIC 4X0.75 5.9 29.0 66.0
27228 NANOFLEX® HC TRONIC 5X0.75 6.7 36.0 80.0
27229 NANOFLEX® HC TRONIC 7X0.75 7.3 50.0 110.0
27230 NANOFLEX® HC TRONIC 8X0.75 8.6 58.0 125.0
27231 NANOFLEX® HC TRONIC 10X0.75 9.6 72.0

148.0

27232 NANOFLEX® HC TRONIC 12X0.75 9.7 86.0 176.0
27233 NANOFLEX® HC TRONIC 16X0.75 11.6 115.0 220.0
27234 NANOFLEX® HC TRONIC 20X0.75 12.4 144.0 276.0
Technical Data
  • Special polyurethane data cable according to DIN VDE 0245, 0812
  • Temperature Range
    Flexing
    -5°C to +80°C (+23°F to +176°F)
    Fixed Installation
    -40°C to +80°C (-40°F to +176°F)
  • Peak Operating Voltage
    (not for purposes of high current and power installation)
    0.14 mm2 = 350 V
    > = 0.25 mm2 = 500 V
  • Test Voltage
    To 0.25 mm2 1200 V
    From 0.34 mm2 2000 V
  • Breakdown Voltage
    To 0.25 mm2 2400 V
    From 0.34 mm2 4000 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Operating Capacity
    (approx. value) at 800 Hz
    0.14 mm2 120 pF/m
    > = 0.25 mm2 150 pF/m
  • Inductance approx. 0.65 mH/km
  • Impedance approx. 78 Ohm
  • Minimum Bending Radius
    Flexing 7.5x cable Ø
    Fixed Installation 4x cable Ø
  • Radiation Resistance
    Up to 100x106 cJ/kX (up to 100 Mrad)
Approvals
RoHSCE RoHS
Cable Construction
  • Bare copper, fine wire stranded according to DIN VDE 0295 cl. 5 or 0245 or IEC 60228
  • Wire make-up for:
    0.14 mm2 18x0.1 mm
    0.25 mm2 14x0.15 mm
    0.34 mm2 7x0.25 mm
  • Special PVC conductor insulation T12 according to DIN VDE 0281 Part 1
  • Core identification in accordance with DIN 47100, but without color repetition
  • Conductors stranded in layers with optimal lay-lengths
  • Outer jacket made of special full polyurethane TMPU according to DIN EN 50363-10-2
  • Jacket color - Light Gray (RAL 7035)
  • With meter marking
Application

Special PUR cable for the food and beverage industry. Outer jacket with antimicrobial properties increases process reliability in all applications in which food and beverages are processed, unpacked and unsealed, e.g. processing of dairy products, meat, fish, production of convenience foods, brewery and beverage industry.
CE Approval = The product is conformed with the EX Low-Voltage Directive 2006/95/EX

Properties
  • Resistant to UV-Radiation, oxygen, ozone, hydrolysis and microbes
  • Self-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (conforms to DIN VDE 0472 part 804 test method B)
  • The materials used in manufacture are free of silicone, cadmium and substances that impair paint wetting
  • Good cleaning properties
  • Resistant to all standard detergents
Note
  • Shielded type: NANOFLEX® HC TRONIC-C
  • Hygenic Cable
Cable Accessories
  • Coming Soon!
