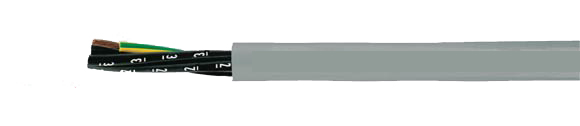

Control Cable: JZ-500 PUR

Tear and Coolant Resistant

Hi-Tech Controls, Inc, European & Domestic cable

Hi-Tech Controls, , European   JZ-500 PUR, Tear and Coolant Resistant, PUR Control Cable, PUR Cable for Humid Areas, Number Coded, Control Cable
AWG Selection
20
20
18
18
17
17
16
16
14
14
12 12 10 10 8 8 6 6
Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
23314 OZ-500 PUR 2X0.5  4.9 9.6 45.0 20
23315 JZ-500 PUR 3G0.5 5.2 14.4 55.0 20
23316 OZ-500 PUR 3X0.5 5.2 14.4 55.0 20
23317 JZ-500 PUR 4G0.5 5.6 19.0 65.0 20
23318 OZ-500 PUR 4X0.5 5.6 19.0 65.0 20
23319 JZ-500 PUR 5G0.5 6.3 24.0 75.0 20
23320 OZ-500 PUR 5X0.5 6.3 24.0 75.0 20
23322 OZ-500 PUR 7X0.5 6.9 33.6 90.0 20
23321 JZ-500 PUR 7G0.5 6.9 33.6 90.0 20
23323 JZ-500 PUR 10G0.5 8.3 48.0 120.0 20
23324 JZ-500 PUR 12G0.5 8.8 58.0 135.0 20
23325 JZ-500 PUR 18G0.5 11.0 86.0 205.0 20
23326 JZ-500 PUR 25G0.5 12.9 120.0 270.0 20
23327 JZ-500 PUR 34G0.5 14.9 163.0 380.0 20
23328 JZ-500 PUR 42G0.5 16.1 202.0 415.0 20
23329 OZ-500 PUR 2X0.75  5.3 14.4 44.0 18
23330 JZ-500 PUR 3G0.75 5.6 21.6 53.0 18
23331 OZ-500 PUR 3X0.75 5.6 21.6 53.0 18
23332 JZ-500 PUR 4G0.75 6.3 29.0 64.0 18
23333 OZ-500 PUR 4X0.75 6.3 29.0 64.0 18
23334 JZ-500 PUR 5G0.75 6.9 36.0 76.0 18
23335 OZ-500 PUR 5X0.75 6.9 36.0 76.0 18
23336 JZ-500 PUR 7G0.75 7.5 50.0 96.0 18
23337 OZ-500 PUR 7X0.75 7.5 50.0 96.0 18
23338 JZ-500 PUR 10G0.75 9.2 72.0 140.0 18
23339 JZ-500 PUR 12G0.75 9.8 86.0 170.0 18
23340 JZ-500 PUR 18G0.75 12.2 130.0 260.0 18
23341 JZ-500 PUR 25G0.75 14.3 180.0 282.0 18
23342 JZ-500 PUR 34G0.75 16.7 245.0 475.0 18
23343 JZ-500 PUR 42G0.75 18.0 302.0 600.0 18
23344 OZ-500 PUR 2X1  5.6 19.0 53.0 17
23345 JZ-500 PUR 3G1 5.9 29.0 63.0 17
23346 OZ-500 PUR 3X1 5.9 29.0 63.0 17
23347 JZ-500 PUR 4G1 6.6 38.0 75.0 17
23348 OZ-500 PUR 4X1 6.6 38.0 75.0 17
23349 JZ-500 PUR 5G1 7.3 48.0 89.0 17
23350 OZ-500 PUR 5X1 7.3 48.0 89.0 17
23351 JZ-500 PUR 7G1 8.1 67.0 115.0 17
23352 OZ-500 PUR 7X1 8.1 67.0 115.0 17
23353 JZ-500 PUR 10G1 9.8 96.0 166.0 17
23354 JZ-500 PUR 12G1 10.4 115.0 201.0 17
23355 JZ-500 PUR 18G1 12.9 173.0 289.0 17
23356 JZ-500 PUR 25G1 15.4 240.0 380.0 17
23357 JZ-500 PUR 34G1 17.9 326.0 645.0 17
23358 JZ-500 PUR 42G1 19.4 403.0 730.0 17
23359 JZ-500 PUR 50G1 21.2 480.0 890.0 17
23360 OZ-500 PUR 2X1.5  6.4 29.0 68.0 16
23361 JZ-500 PUR 3G1.5 6.8 43.0 87.0 16
23362 OZ-500 PUR 3X1.5 6.8 43.0 87.0 16
23363 JZ-500 PUR 4G1.5 7.4 58.0 106.0 16
23364 OZ-500 PUR 4X1.5 7.4 58.0 106.0 16
23365 JZ-500 PUR 5G1.5 8.3 72.0 131.0 16
23366 OZ-500 PUR 5X1.5 8.3 72.0 131.0 16
23367 JZ-500 PUR 7G1.5 9.2 101.0 173.0 16
23368 OZ-500 PUR 7X1.5 9.2 101.0 173.0 16
23369 JZ-500 PUR 12G1.5 12.0 173.0 293.0 16
23370 JZ-500 PUR 18G1.5 14.6 259.0 454.0 16
23371 JZ-500 PUR 25G1.5 17.4 360.0 641.0 16
23372 JZ-500 PUR 30G1.5 18.6 410.0 800.0 16
23373 OZ-500 PUR 2X2.5  7.8 48.0 110.0 14
23374 JZ-500 PUR 3G2.5 8.3 72.0 146.0 14
23375 JZ-500 PUR 4G2.5 9.2 96.0 183.0 14
23376 JZ-500 PUR 5G2.5 10.1 120.0 222.0 14
23377 JZ-500 PUR 7G2.5 11.2 168.0 293.0 14
23378 JZ-500 PUR 12G2.5 14.8 288.0 512.0 14
23379 JZ-500 PUR 4G4  11.0 154.0 291.0 12
23380 JZ-500 PUR 5G4 12.3 192.0 355.0 12
23381 JZ-500 PUR 7G4 13.6 269.0 503.0 12
23382 JZ-500 PUR 4G6  13.0 230.0 468.0 10
23383 JZ-500 PUR 5G6 14.5 288.0 570.0 10
23384 JZ-500 PUR 7G6 16.2 403.0 808.0 10
23385 JZ-500 PUR 4G10  16.4 384.0 720.0 8
23386 JZ-500 PUR 5G10 18.3 480.0 894.0 8
23387 JZ-500 PUR 7G10 20.2 672.0 1295.0 8
23388 JZ-500 PUR 4G16  20.0 614.0 1063.0 6
Technical Data
  • Special PUR cables adapted to DIN VDE 0245, 0281
  • Temperature Range
    Flexing
    -5°C to +80°C (+23°F to +176°F)
    Fixed Installation
    -40°C to +80°C (-40°F to +176°F)
  • Nominal Voltage U0/U 300/500 V
  • Test Voltage 4000 V
  • Breakdown Voltage min. 8000 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Minimum Bending Radius
    Flexing 7.5x cable Ø
    Fixed Installation 4x cable Ø
  • Radiation Resistance
    Up to 100x106 cJ/kg (up to 100 Mrad)
Approvals
RoHSCE RoHS
Cable Construction
  • Bare copper, fine wire conductors bunch stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
  • Special PVC conductor insulation TI2, according to DIN VDE 0281 part 1
  • Black conductors with continuous white numbering according to DIN VDE 0293
  • Green-yellow grounding in the outer layer (3 conductors and above)
  • Conductors stranded in layers with optimal lay-length
  • Special full-polyurethane outer jacket TMPU, to DIN VDE 0282 part 10, appendix A
  • Jacket color: Gray (RAL 7001)
  • Jacket also available in other colors
Application

JZ-500 PUR is an extremely robust control cable with high abrasion and tear resistant properties. Due to its high resistance against coolant emulsions, it is especially suited for use in the machine, tool making and plant industries as well as the steel industry for difficult and problem areas. The high flexibility of this cable makes it quick and easy to install. Suitable for outdoor installation.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.

Properties
  • Resistant to UV-Radiation, oxygen, ozone and hydrolysis, microbes, self-extinguishing and flame retardant according to DIN VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • G = with green-yellow grounding
    x = without green-yellow grounding (OZ)
  • Shielded type: JZ-500-FC-PUR
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
