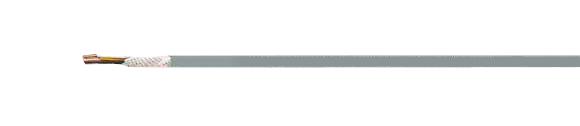

Control Cable: SUPERTRONIC®-PURÖ

Special Cable for Drag Chains / Track Cable

Sealcon, Inc, European & Domestic cable

Sealcon,  - SUPERTRONIC-PUR�, Special Cable for Drag Chain, Control Cable for Drag Chain, Control Cable
Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
49583 SUPERTRONIC-PURÖ 2X0.14 3.5 2.8 22.0 26
49584 SUPERTRONIC-PURÖ 3X0.14 3.7 4.1 24.0 26
49585 SUPERTRONIC-PURÖ 4X0.14 3.9 5.6 29.0 26
49586 SUPERTRONIC-PURÖ 5X0.14 4.2 7.0 33.0 26
49587 SUPERTRONIC-PURÖ 7X0.14 4.9 9.8 47.0 26
49588 SUPERTRONIC-PURÖ 10X0.14 6.2 14.0 59.0 26
49589 SUPERTRONIC-PURÖ 12X0.14 6.4 16.8 67.0 26
49590 SUPERTRONIC-PURÖ 14X0.14 6.6 19.6 74.0 26
49591 SUPERTRONIC-PURÖ 18X0.14 7.3 25.2 86.0 26
49592 SUPERTRONIC-PURÖ 24X0.14 8.5 33.6 115.0 26
49593 SUPERTRONIC-PURÖ 25X0.14 8.6 35.0 120.0 26
49594 SUPERTRONIC-PURÖ 2X0.25 4.1 5.0 27.0 24
49595 SUPERTRONIC-PURÖ 3X0.25 4.3 7.5 33.0 24
49596 SUPERTRONIC-PURÖ 4X0.25 4.8 10.0 40.0 24
49597 SUPERTRONIC-PURÖ 5X0.25 5.2 12.5 48.0 24
49598 SUPERTRONIC-PURÖ 7X0.25 6.2 17.5 60.0 24
49599 SUPERTRONIC-PURÖ 10X0.25 7.4 25.0 79.0 24
49600 SUPERTRONIC-PURÖ 12X0.25 7.6 30.1 91.0 24
49601 SUPERTRONIC-PURÖ 14X0.25 7.9 35.0 102.0 24
49602 SUPERTRONIC-PURÖ 18X0.25 8.9 45.0 125.0 24
49603 SUPERTRONIC-PURÖ 24X0.25 10.0 60.0 163.0 24
49604 SUPERTRONIC-PURÖ 25X0.25 10.6 62.5 170.0 24
49605 SUPERTRONIC-PURÖ 2X0.34 4.5 6.8 32.0 22
49606 SUPERTRONIC-PURÖ 3X0.34 4.9 10.2 40.0 22
49607 SUPERTRONIC-PURÖ 4X0.34 5.3 13.6 55.0 22
49608 SUPERTRONIC-PURÖ 5X0.34 5.8 17.0 60.0 22
49609 SUPERTRONIC-PURÖ 7X0.34 6.9 23.8 80.0 22
49610 SUPERTRONIC-PURÖ 10X0.34 8.4 34.0 112.0 22
49611 SUPERTRONIC-PURÖ 12X0.34 8.6 40.8 127.0 22
49612 SUPERTRONIC-PURÖ 14X0.34 9.0 47.6 142.0 22
49613 SUPERTRONIC-PURÖ 18X0.34 10.1 61.2 175.0 22
49614 SUPERTRONIC-PURÖ 24X0.34 12.0 81.5 229.0 22
49615 SUPERTRONIC-PURÖ 25X0.34 12.2 85.0 238.0 22
Technical Data
  • Special PUR drag chain cables adapted to DIN VDE 0281 part 13
  • Very high flexiblity due to special construction
  • Temperature Range
    Flexing
    -5°C to +70°C (+23°F to +158°F)
    Fixed Installation
    -40°C to +70°C (40°F to +158°F)
  • Nominal Voltage 350 V
  • Test Voltage 1500 V
  • Breakdown voltage min. 3000 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Minimum Bending Radius
    Flexing 5x cable Ø
    Fixed Installation 3x cable Ø
  • Radiation Resistance
    Up to 100x106 cJ/kg (up to 100 Mrad)
Approvals
RoHSCE RoHS PCT
Cable Construction
  • Bare copper, extra fine wire conductors to DIN VDE 0295 cl. 6, col. 4 and 5, cl. 6 and IEC 60228 cl. 6
  • Oil resistant PVC conductor insulation TI2, in adapted to DIN VDE 0281 part 1, for better sliding abilities
  • Conductors are stranded in layers with short lay length
  • Conductors color coded to DIN 47100
  • Conductor wrapping with textile tape
  • Special full-polyurethane outer jacket TMPU to DIN VDE 0282 part 10, appendix A
  • Outer jacket: Grey (RAL 7001), surface mat
Application

Perfect for use with cable trays. This highly flexible and shielded PUR control cable is ideal for use wherever frequent high flexing motion is required, e.g. in robotics or all moving parts. The long working life of this cable makes it both efficient and economic.
For applications which go beyond standard solutions (for example for composting appliances or high shelf conveyors with extremely high processing speeds etc.) we recommend for our specially developed inquiry sheet for energy guiding systems.
Before installation in cable trays, please read the instructions. For further technical details, see selection table for drag chain cables.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.

Properties
  • Features
    Highly flexible at low temperatures, high abrasion resistance, break and cut resistant, tear resistant, flame retardant
  • Resistant to UV-radiation, oxygen, ozone, hydrolysis, oil
  • Conditional resistance to microbes, hydraulic liquidity, alkalis, lye
  • The PUR outer jacket is extremely robust with high tear, abrasion and oil resistance
  • Adhesion-free
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
Cable Accessories
  • Coming Soon!
