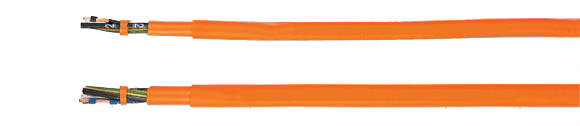

Control Cable: PUR-ORANGE

PVC Inner Jacket, Flexible, High Abrasion, Coolant Resistant

Hi-Tech Controls, Inc, European wires and cables

Hi-Tech Controls, , European   PUR-Orange, PUR Cable for Humid Areas, Number Coded or Color Coded, PVC-Inner Jacket, Flexible, Abrasion and Coolant Resistant, Control Cable
AWG Selection
18
18
17
17
16
16
14
14
12
12
10
10
8
8
6
6

18
18
17
17
16
16
14
14
12
12
10
10
8
8
6
6
4
4
4
2
Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
22001  PUR-OZ 2X0.75 ORANGE  6.4 14.4 50.0 18
22002 PUR-JZ 3G0.75 ORANGE 6.8 21.6 70.0 18
22003 PUR-JZ 4G0.75 ORANGE 7.3 28.8 80.0 18
22004 PUR-JZ 5G0.75 ORANGE 8.2 36.0 100.0 18
22005 PUR-JZ 7G0.75 ORANGE 9.2 50.0 140.0 18
22006 PUR-OZ 2 X 1 ORANGE  7.2 19.2 63.0 17
22007 PUR-JZ 3G1 ORANGE 7.6 29.0 76.0 17
22008 PUR-JZ 4G1 ORANGE 8.0 38.0 95.0 17
22009 PUR-JZ 5G1 ORANGE 8.8 48.0 120.0 17
22010 PUR-JZ 7G1 ORANGE 10.0 67.0 170.0 17
22015 PUR-OZ 2X1.5 ORANGE  7.8 29.0 80.0 16
22016 PUR-JZ 3G1.5 ORANGE 8.3 43.0 105.0 16
22017 PUR-JZ 4G1.5 ORANGE 9.0 58.0 135.0 16
22018 PUR-JZ 5G1.5 ORANGE 9.7 72.0 158.0 16
22019 PUR-JZ 7G1.5 ORANGE 11.2 101.0 221.0 16
22025 PUR-OZ 2X2.5 ORANGE  9.2 48.0 150.0 14
22026 PUR-JZ 3G2.5 ORANGE 9.6 72.0 173.0 14
22027 PUR-JZ 4G2.5 ORANGE 11.0 96.0 203.0 14
22028 PUR-JZ 5G2.5 ORANGE 12.0 120.0 253.0 14
22029 PUR-JZ 7G2.5 ORANGE 13.7 168.0 356.0 14
22033 PUR-JZ 3G4 ORANGE  11.8 115.0 250.0 12
22034 PUR-JZ 4G4 ORANGE 13.2 154.0 300.0 12
22035 PUR-JZ 5G4 ORANGE 14.8 192.0 370.0 12
22036 PUR-JZ 7G4 ORANGE 16.4 269.0 500.0 12
22037 PUR-JZ 4G6 ORANGE  15.4 230.0 480.0 10
22038 PUR-JZ 5G6 ORANGE 17.0 288.0 583.0 10
22039 PUR-JZ 7G6 ORANGE 20.8 403.0 780.0 10
22040 PUR-JZ 4G10 ORANGE  20.8 384.0 740.0 8
22041 PUR-JZ 5G10 ORANGE 22.6 480.0 920.0 8
22042 PUR-JZ 4G16 ORANGE  23.0 614.0 1100.0 6
22043 PUR-JZ 5G16 ORANGE 27.4 768.0 1400.0 6
22250  PUR-OB 2X0.75 ORANGE  6.4 14.4 50.0 18
22251 PUR-JB 3G0.75 ORANGE 6.8 21.6 70.0 18
22252 PUR-JB 4G0.75 ORANGE 7.3 28.8 80.0 18
22253 PUR-JB 5G0.75 ORANGE 8.2 36.0 100.0 18
22254 PUR-OB 2X1 ORANGE  7.2 19.2 63.0 17
22255 PUR-JB 3G1 ORANGE 7.6 29.0 76.0 17
22256 PUR-JB 4G1 ORANGE 8.0 38.0 95.0 17
22257 PUR-JB 5G1 ORANGE 8.8 48.0 120.0 17
22258 PUR-OB 2X1.5 ORANGE  7.8 29.0 80.0 16
22259 PUR-JB 3G1.5 ORANGE 8.3 43.0 105.0 16
22260 PUR-JB 4G1.5 ORANGE 9.0 58.0 135.0 16
22261 PUR-JB 5G1.5 ORANGE 9.7 72.0 158.0 16
22262 PUR-OB 2X2.5 ORANGE  9.2 48.0 150.0 14
22263 PUR-JB 3G2.5 ORANGE 9.6 72.0 173.0 14
22264 PUR-JB 4G2.5 ORANGE 11.0 96.0 203.0 14
22265 PUR-JB 5G2.5 ORANGE 12.0 120.0 253.0 14
22266 PUR-JB 4G4 ORANGE  13.2 154.0 300.0 12
22267 PUR-JB 5G4 ORANGE 14.8 192.0 370.0 12
22268 PUR-JB 4G6 ORANGE  15.4 230.0 480.0 10
22269 PUR-JB 5G6 ORANGE 17.0 288.0 583.0 10
22270 PUR-JB 4G10 ORANGE  20.8 384.0 740.0 8
22271 PUR-JB 5G10 ORANGE 22.6 480.0 920.0 8
22272 PUR-JB 4G16 ORANGE  23.0 614.0 1100.0 6
22273 PUR-JB 5G16 ORANGE 27.4 768.0 1400.0 6
22044 PUR-JB 4G25 ORANGE  30.0 960.0 1600.0 4
22045 PUR-JB 5G25 ORANGE 32.2 1200.0 2000.0 4
22046 PUR-JB 4G35 ORANGE  33.0 1344.0 2100.0 2
Technical Data
  • Special PVC/PUR cable adapted to DIN VDE 0281, 0282
  • Temperature Range
    Flexing
    -5°C to +80°C (+23°F to +176°F)
    Fixed Installation
    -40°C to +80°C (-40°F to +176°F)
  • Nominal Voltage U0/U 300/500 V
  • Test Voltage 3000 V
  • Breakdown Voltage min. 6000 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Minimum Bending Radius
    Flexing 7.5x cable Ø
    Fixed Installation 4x cable Ø
  • Radiation Resistance
    Up to 100x106 cJ/kg (up to 100 Mrad)
Approvals
RoHSCE RoHS PCT
Cable Construction
  • Bare copper, fine wire conductors bunch stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
  • Special PVC conductor insulation TI2, to DIN VDE 0281 part 1
  • Conductors color identification: conductors with number or color coded to DIN VDE 0293-308
  • For 2-conductors cable without green-yellow grounding, conductor colors brown, blue black
    • conductors with continuous white figure imprint with green-yellow grounding (up to 7 conductors) or
    • conductors color coded with green-yellow grounding (up to 5 conductors)
  • Conductors stranded in layers with optimal lay-length
  • PVC inner jacket guarantees easy cable stripping
  • PUR outer jacket TMPU, to DIN VDE 0282 part 10, appendix A
  • Color: Orange (RAL 2003)
Application

Robust control cable with an outstanding resistance to oil and abrasion. Suitable for use in tool making and machine industries, steel works, on building sites and in the oil and coal industries. The cable can also be used for portable tools. etc. To be recommended if the cable comes into contact with chemical agents.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.

Properties
  • High flexibility at low temperature
  • High abrasion resistance
  • Resistant to: Oils and fats, Non-alcoholic fuels and kerosene, Atmospheric influences, UV-radiation, Oxygen and ozone, Microbes and rotting, Sea and waste water, Vibrations
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • G = with green-yellow grounding
    X = without green-yellow grounding (OZ/OB)
  • AWG sizes are approximate equivalent sizes. The actual cross-section is in mm2.
Cable Accessories
  • Coming Soon!
