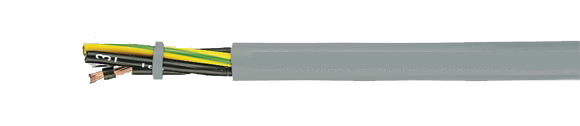

Control Cable: PURÖ-JZ

Tear and Coolant Resistant, Increased Oil Resistant

Hi-Tech Controls, Inc, European & Domestic cable

PUR÷-JZ tear and coolant resistant, increased oil resistant< Hi-Tech Controls,
Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
22100 PURÖ-OZ 2X0.5  4.9 9.6 45.0 20
22101 PURÖ-JZ 3G0.5 5.2 14.4 55.0 20
22102 PURÖ-JZ 4G0.5 5.6 19.0 65.0 20
22103 PURÖ-JZ 5G0.5 6.3 24.0 75.0 20
22104 PURÖ-JZ 7G0.5 6.9 33.6 90.0 20
22105 PURÖ-JZ 8G0.5 7.4 38.0 105.0 20
22106 PURÖ-JZ 10G0.5 8.3 48.0 120.0 20
22107 PURÖ-JZ 12G0.5 8.8 58.0 135.0 20
22108 PURÖ-JZ 14G0.5 9.7 67.0 170.0 20
22109 PURÖ-JZ 18G0.5 11.0 86.0 205.0 20
22110 PURÖ-JZ 21G0.5 11.5 96.0 225.0 20
22111 PURÖ-JZ 25G0.5 12.9 120.0 270.0 20
22112 PURÖ-JZ 30G0.5 13.8 144.0 315.0 20
22113 PURÖ-JZ 34G0.5 14.9 163.0 380.0 20
22114 PURÖ-JZ 42G0.5 16.1 202.0 415.0 20
22115 PURÖ-JZ 50G0.5 17.9 240.0 550.0 20
22116 PURÖ-OZ 2X0.75   5.3 14.4 44.0 18
22117 PURÖ-JZ 3G0.75 5.6 21.6 53.0 18
22118 PURÖ-JZ 4G0.75 6.3 29.0 64.0 18
22119 PURÖ-JZ 5G0.75 6.9 36.0 76.0 18
22120 PURÖ-JZ 7G0.75 7.5 50.0 96.0 18
22121 PURÖ-JZ 8G0.75 8.2 58.0 111.0 18
22122 PURÖ-JZ 10G0.75 9.2 72.0 140.0 18
22123 PURÖ-JZ 12G0.75 9.8 86.0 170.0 18
22124 PURÖ-JZ 14G0.75 10.6 101.0 202.0 18
22125 PURÖ-JZ 18G0.75 12.2 130.0 260.0 18
22126 PURÖ-JZ 21G0.75 12.7 151.0 269.0 18
22127 PURÖ-JZ 25G0.75 14.3 180.0 282.0 18
22128 PURÖ-JZ 30G0.75 15.3 216.0 400.0 18
22129 PURÖ-JZ 34G0.75 16.7 245.0 475.0 18
22130 PURÖ-JZ 42G0.75 18.0 302.0 600.0 18
22131 PURÖ-JZ 50G0.75 19.8 360.0 720.0 18
22132 PURÖ-OZ 2X1   5.6 19.0 53.0 17
22133 PURÖ-JZ 3G1 5.9 29.0 63.0 17
22134 PURÖ-JZ 4G1 6.6 38.0 75.0 17
22135 PURÖ-JZ 5G1 7.3 48.0 89.0 17
22136 PURÖ-JZ 7G1 8.1 67.0 115.0 17
22137 PURÖ-JZ 8G1 8.7 77.0 131.0 17
22138 PURÖ-JZ 10G1 9.8 96.0 166.0 17
22139 PURÖ-JZ 12G1 10.4 115.0 201.0 17
22140 PURÖ-JZ 14G1 11.4 134.0 230.0 17
22141 PURÖ-JZ 18G1 12.9 173.0 289.0 17
22142 PURÖ-JZ 21G1 13.7 196.0 306.0 17
22143 PURÖ-JZ 25G1 15.4 240.0 380.0 17
22144 PURÖ-JZ 32G1 17.1 308.0 620.0 17
22145 PURÖ-JZ 34G1 17.9 326.0 645.0 17
22146 PURÖ-JZ 42G1 19.4 403.0 730.0 17
22147 PURÖ-JZ 50G1 21.2 480.0 890.0 17
22148 PURÖ-OZ 2X1.5  6.4 29.0 68.0 16
22149 PURÖ-JZ 3G1.5 6.8 43.0 87.0 16
22150 PURÖ-JZ 4G1.5 7.4 58.0 106.0 16
22151 PURÖ-JZ 5G1.5 8.3 72.0 131.0 16
22152 PURÖ-JZ 7G1.5 9.2 101.0 173.0 16
22153 PURÖ-JZ 8G1.5 9.9 115.0 199.0 16
22154 PURÖ-JZ 10G1.5 10.9 144.0 245.0 16
22155 PURÖ-JZ 12G1.5 12.0 173.0 293.0 16
22156 PURÖ-JZ 14G1.5 13.0 202.0 347.0 16
22157 PURÖ-JZ 18G1.5 14.6 259.0 454.0 16
22158 PURÖ-JZ 21G1.5 15.5 302.0 534.0 16
22159 PURÖ-JZ 25G1.5 17.4 360.0 641.0 16
22160 PURÖ-JZ 30G1.5 18.6 410.0 800.0 16
22161 PURÖ-JZ 34G1.5 20.2 490.0 945.0 16
22162 PURÖ-JZ 42G1.5 21.8 605.0 1100.0 16
22163 PURÖ-JZ 50G1.5 24.2 720.0 1250.0 16
22164 PURÖ-OZ 2X2.5   7.8 48.0 110.0 14
22165 PURÖ-JZ 3G2.5 8.3 72.0 146.0 14
22166 PURÖ-JZ 4G2.5 9.2 96.0 183.0 14
22167 PURÖ-JZ 5G2.5 10.1 120.0 222.0 14
22168 PURÖ-JZ 7G2.5 11.2 168.0 293.0 14
22169 PURÖ-JZ 12G2.5 14.8 288.0 512.0 14
22170 PURÖ-JZ 18G2.5 18.2 432.0 740.0 14
22171 PURÖ-JZ 25G2.5 21.6 600.0 940.0 14
22172 PURÖ-OZ 2X4   9.3 77.0 147.0 12
22173 PURÖ-JZ 3G4 9.8 115.0 228.0 12
22174 PURÖ-JZ 4G4 11.0 154.0 291.0 12
22175 PURÖ-JZ 5G4 12.3 192.0 355.0 12
22176 PURÖ-JZ 7G4 13.6 269.0 503.0 12
22177 PURÖ-JZ 3G6   11.9 173.0 362.0 10
22178 PURÖ-JZ 4G6 13.0 230.0 468.0 10
22179 PURÖ-JZ 5G6 14.5 288.0 570.0 10
22180 PURÖ-JZ 7G6 16.2 403.0 808.0 10
22181 PURÖ-JZ 3G10   14.1 288.0 555.0 8
22182 PURÖ-JZ 4G10 16.4 384.0 720.0 8
22183 PURÖ-JZ 5G10 18.3 480.0 894.0 8
22184 PURÖ-JZ 7G10 20.2 672.0 1295.0 8
22185 PURÖ-JZ 4G16   20.0 614.0 1063.0 6
22186 PURÖ-JZ 5G16 22.6 768.0 1400.0 6
22187 PURÖ-JZ 7G16 24.8 1075.0 1800.0 6
22188 PURÖ-JZ 4G25   24.9 960.0 1590.0 4
22189 PURÖ-JZ 4G35   28.4 1344.0 2200.0 2
22190 PURÖ-JZ 4G50   34.2 1920.0 2400.0 1
22191 PURÖ-JZ 4G70   40.3 2688.0 4400.0 2/0
22192 PURÖ-JZ 4G95   45.8 3648.0 6000.0 3/0
Technical Data
  • Special PUR cables adapted to DIN VDE 0245, 0281
  • Temperature Range
    Flexing
    -5°C to +80°C (+23°F to +176°F)
    Fixed Installation
    -40°C to +80°C (-40°F to +176°F)
  • Nominal Voltage U0/U 300/500 V
  • Test Voltage 4000 V
  • Breakdown Voltage
    Min. 8000 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Minimum Bending Radius
    Flexing 7.5 x cable Ø
    Fixed Installation 4 x cable Ø
  • Radiation Resistance
    up to 100x106 cJ/kg (up to 100 Mrad)
Approvals
RoHSCE VDE PCT
Cable Construction
  • Bare copper conductor, fine wire conductors bunch stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
  • Oil-resistant PVC conductor insulation T12 adapted to DIN VDE 0281 part 1, for better sliding abilities
  • Black conductors with continuous white numbering according to DIN VDE 0293
  • Green-yellow grounding in the outer layer (3 conductors and above)
  • Conductors stranded in layers with optimal lay-length
  • Special full polyurethane outer jacket TMPU acc. to DIN VDE 0282 part 10, appendix A
  • Jacket color: Gray (RAL 7001)
  • Also available in other jacket colors
Application

PURÖ-JZ is an extremely robust control cable with high abrasion and tear resistant properties. With a high-grade oil-resistant PVC conductor insulation. Due to its high resistance to mineral oils and especially to coolant emulsions, it is especially suited for use in machine, tool making and plant industry as well as in the steel industry for difficult and problem areas. The high flexibility makes it quick and easy to install. Suitable for outdoor installation.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.

Properties
  • Resistant to UV-radiation, oxygen, ozone, hydrolyses, microbes
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • G = with green-yellow grounding
    x = without green-yellow grounding (OZ)
  • AWG sizes are approximate equivalent sizes. The actual cross-section is in mm2.
  • Shielded Type: F-C-PUR÷-JZ, Y÷-C-PUR÷-JZ
Cable Accessories
  • Coming Soon!
