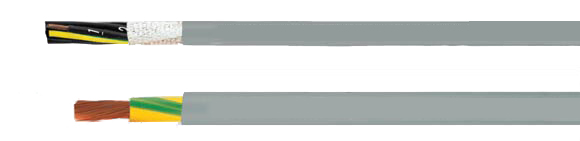

Control Cable: PURÖ-JZ-HF

Highly Flexible, Cable for Drag Chains / Track Cable, Abrasion and Coolant Resistant

Hi-Tech Controls, Inc, European & Domestic cable

Hi-Tech Controls,  - Pur�-JZ-HF, High Flexible, Cable for Drag Chain, Control Cable for Drag Chain, Abrasion and Coolant Resistant, Control Cable
Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
15520 PURÖ-OZ-HF 2X0.5 highly flexible  5.4 9.6 45.0 20
15521 PURÖ-JZ-HF 3G0.5 highly flexible 5.9 14.4 56.0 20
15522 PURÖ-JZ-HF 4G0.5 highly flexible 6.3 19.1 69.0 20
15523 PURÖ-JZ-HF 5G0.5 highly flexible 6.9 24.0 92.0 20
15524 PURÖ-JZ-HF 7G0.5 highly flexible 7.8 33.6 126.0 20
15525 PURÖ-JZ-HF 8G0.5 highly flexible 8.6 38.0 136.0 20
15526 PURÖ-JZ-HF 10G0.5 highly flexible 9.6 48.0

158.0

20
15527 PURÖ-JZ-HF 12G0.5 highly flexible 10.3 58.0 176.0 20
15528 PURÖ-JZ-HF 14G0.5 highly flexible 10.3 67.0 212.0 20
15529 PURÖ-JZ-HF 18G0.5 highly flexible 11.5 86.4 283.0 20
15530 PURÖ-JZ-HF 21G0.5 highly flexible 12.6 96.0 310.0 20
15531 PURÖ-JZ-HF 25G0.5 highly flexible 13.6 120.0 330.0 20
15532 PURÖ-JZ-HF 30G0.5 highly flexible 14.2 144.0 390.0 20
15533 PURÖ-JZ-HF 34G0.5 highly flexible 15.1 163.0 420.0 20
15534 PURÖ-JZ-HF 42G0.5 highly flexible 16.2 202.0 500.0 20
15535 PURÖ-JZ-HF 50G0.5 highly flexible 18.0 240.0 580.0 20
15538 PURÖ-OZ-HF 2X0.75 highly flexible  5.9 14.4 57.0 18
15539 PURÖ-JZ-HF 3G0.75 highly flexible 6.2 21.6 72.0 18
15540 PURÖ-JZ-HF 4G0.75 highly flexible 6.7 29.0 97.0 18
15541 PURÖ-JZ-HF 5G0.75 highly flexible 7.3 36.0 119.0 18
15542 PURÖ-JZ-HF 7G0.75 highly flexible 8.7 50.0 165.0 18
15543 PURÖ-JZ-HF 8G0.75 highly flexible 9.5 58.0 189.0 18
15544 PURÖ-JZ-HF 10G0.75 highly flexible 10.5 72.0 214.0 18
15545 PURÖ-JZ-HF 12G0.75 highly flexible 11.0 86.0 247.0 18
15546 PURÖ-JZ-HF 14G0.75 highly flexible 11.4 101.0 283.0 18
15547 PURÖ-JZ-HF 18G0.75 highly flexible 12.6 130.0 356.0 18
15548 PURÖ-JZ-HF 21G0.75 highly flexible 14.0 151.0 502.0 18
15549 PURÖ-JZ-HF 25G0.75 highly flexible 15.2 180.0 698.0 18
15550 PURÖ-JZ-HF 30G0.75 highly flexible 15.7 216.0 720.0 18
15551 PURÖ-JZ-HF 34G0.75 highly flexible 17.1 245.0 770.0 18
15552 PURÖ-JZ-HF 42G0.75 highly flexible 18.5 302.0 840.0 18
15553 PURÖ-JZ-HF 50G0.75 highly flexible 20.0 360.0 990.0 18
15556 PURÖ-OZ-HF 2X1 highly flexible  6.6 19.2 64.0 17
15557 PURÖ-JZ-HF 3G1 highly flexible 7.0 29.0 83.0 17
15558 PURÖ-JZ-HF 4G1 highly flexible 7.6 38.5 113.0 17
15559 PURÖ-JZ-HF 5G1 highly flexible 8.2 48.0 137.0 17
15560 PURÖ-JZ-HF 7 G 1 highly flexible 9.6 67.0 191.0 17
15561 PURÖ-JZ-HF 8G1 highly flexible 10.5 77.0 218.0 17
15562 PURÖ-JZ-HF 10G1 highly flexible 11.6 96.0 251.0 17
15563 PURÖ-JZ-HF 12G1 highly flexible 12.0 115.0 294.0 17
15564 PURÖ-JZ-HF 14G1 highly flexible 13.0 134.0 337.0 17
15565 PURÖ-JZ-HF 18G1 highly flexible 14.5 173.0 420.0 17
15566 PURÖ-JZ-HF 21G1 highly flexible 16.0 196.0 504.0 17
15567 PURÖ-JZ-HF 25G1 highly flexible 17.6 240.0 600.0 17
15568 PURÖ-JZ-HF 32G1 highly flexible 18.8 308.0 732.0 17
15569 PURÖ-JZ-HF 34G1 highly flexible 19.7 326.0 776.0 17
15570 PURÖ-JZ-HF 41G1 highly flexible 24.9 394.0 925.0 17
15571 PURÖ-JZ-HF 42G1 highly flexible 21.1 403.0 949.0 17
15572 PURÖ-JZ-HF 50G1 highly flexible 23.4 480.0 1092.0 17
15573 PURÖ-JZ-HF 65G1 highly flexible 30.9 624.0 1400.0 17
15575 PURÖ-OZ-HF 2X1.5 highly flexible  7.1 29.0 90.0 16
15576 PURÖ-JZ-HF 3G1.5 highly flexible 7.5 43.0 117.0 16
15577 PURÖ-JZ-HF 4G1.5 highly flexible 8.2 58.0

147.0

16
15578 PURÖ-JZ-HF 5G1.5 highly flexible 9.0 72.0 181.0 16
15579 PURÖ-JZ-HF 7G1.5 highly flexible 10.8 101.0 274.0 16
15580 PURÖ-JZ-HF 8G1.5 highly flexible 11.6 115.0 313.0 16
15581 PURÖ-JZ-HF 10G1.5 highly flexible 13.4 144.0 344.0 16
15582 PURÖ-JZ-HF 12G1.5 highly flexible 13.4 173.0 391.0 16
15583 PURÖ-JZ-HF 14G1.5 highly flexible 14.3 202.0 457.0 16
15584 PURÖ-JZ-HF 18G1.5 highly flexible 16.0 259.0 589.0 16
15585 PURÖ-JZ-HF 21G1.5 highly flexible 17.5 302.0 680.0 16
15586 PURÖ-JZ-HF 25G1.5 highly flexible 19.5 360.0 801.0 16
15587 PURÖ-JZ-HF 30G1.5 highly flexible 20.0 410.0 938.0 16
15588 PURÖ-JZ-HF 34G1.5 highly flexible 22.0 490.0 1048.0 16
15589 PURÖ-JZ-HF 42G1.5 highly flexible 23.8 605.0 1290.0 16
15590 PURÖ-JZ-HF 50G1.5 highly flexible 29.1 720.0 1520.0 16
15591 PURÖ-JZ-HF 61G1.5 highly flexible 32.4 889.0 1850.0 16
15592 PURÖ-JZ-HF 65G1.5 highly flexible 33.6 940.0 1970.0 16
15620 PURÖ-OZ-HF 2X2.5 highly flexible  8.6 48.0 128.0 14
15621 PURÖ-JZ-HF 3G2.5 highly flexible 9.3 72.0 160.0 14
15622 PURÖ-JZ-HF 4G2.5 highly flexible 10.3 96.0 200.0 14
15623 PURÖ-JZ-HF 5G2.5 highly flexible 11.5 120.0 268.0 14
15624 PURÖ-JZ-HF 7G2.5 highly flexible 13.4 168.0 357.0 14
15625 PURÖ-JZ-HF 12G2.5 highly flexible 17.0 288.0 571.0 14
15626 PURÖ-JZ-HF 14G2.5 highly flexible 18.5 336.0 612.0 14
15627 PURÖ-JZ-HF 18G2.5 highly flexible 20.0 432.0 800.0 14
15628 PURÖ-JZ-HF 25G2.5 highly flexible 24.4 600.0 1100.0 14
15630 PURÖ-OZ-HF 2X4 highly flexible  10.4 77.0 190.0 12
15631 PURÖ-JZ-HF 3G4 highly flexible 11.2 115.0 250.0 12
15632 PURÖ-JZ-HF 4G4 highly flexible 12.5 154.0 320.0 12
15633 PURÖ-JZ-HF 5G4 highly flexible 13.8 192.0 400.0 12
15634 PURÖ-JZ-HF 7G4 highly flexible 15.6 269.0 550.0 12
15653 PURÖ-J-HF 1G6 highly flexible  6.9 58.0 81.0 10
15636 PURÖ-JZ-HF 3G6 highly flexible 13.0 173.0 350.0 10
15637 PURÖ-JZ-HF 4G6 highly flexible 14.7 230.0 500.0 10
15638 PURÖ-JZ-HF 5G6 highly flexible 16.0 288.0 580.0 10
15639 PURÖ-JZ-HF 7G6 highly flexible 17.5 403.0 800.0 10
15654 PURÖ-J-HF 1G10 highly flexible  8.4 96.0 152.0 8
15641 PURÖ-JZ-HF 3G10 highly flexible 17.4 288.0 660.0 8
15642 PURÖ-JZ-HF 4G10 highly flexible 19.0 384.0 750.0 8
15643 PURÖ-JZ-HF 5X10 highly flexible 21.3 480.0 990.0 8
15644 PURÖ-JZ-HF 7G10 highly flexible 23.6 672.0 1300.0 8
15655 PURÖ-J-HF 1G16 highly flexible  9.6 154.0 215.0 6
15645 PURÖ-JZ-HF 4G16 highly flexible 23.2 614.0 1200.0 6
15646 PURÖ-JZ-HF 5G16 highly flexible 25.6 768.0 1500.0 6
15647 PURÖ-JZ-HF 7G16 highly flexible 33.0 1075.0 1900.0 6
15656 PURÖ-J-HF 1G25 highly flexible  11.1 240.0 320.0 4
15648 PURÖ-JZ-HF 4G25 highly flexible 34.0 960.0 1700.0 4
15649 PURÖ-JZ-HF 4G35 highly flexible  37.0 1344.0 2300.0 2
15650 PURÖ-JZ-HF 4G50 highly flexible  44.0 1920.0 2500.0 1
15651 PURÖ-JZ-HF 4G70 highly flexible  53.0 2688.0 4600.0 2/0
15652 PURÖ-JZ-HF 4G95 highly flexible  59.0 3648.0 6400.0 3/0
Technical Data
  • Special polyurethane control cable adapted to DIN VDE 0245, 0281, 0282
  • Temperature Range
    Flexing
    -5°C to +80°C (+23°F to 176°F)
    Fixed Installation
    -40°C to +80°C (-40°F to 176°F)
  • Nominal Voltage U0/U 300/500 V
  • Test Voltage 4000 V
  • Breakdown Voltage min. 8000 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Minimum Bending Radius
    Flexing 7.5x cable Ø
    Fixed Installation 4x cable Ø
  • Radiation Resistance
    Up to 100x106 cJ/kg (up to 100 Mrad)
Approvals
RoHSCE VDE PCT
Cable Construction
  • Bare copper, extra fine wire conductors bunch stranded to DIN VDE 0295 cl. 6, BS 6360 cl. 6 and IEC 60228 cl. 6
  • Oil resistant PVC conductor insulation TI2, in adapted to DIN VDE 0281 part 1, for better sliding abilities
  • Black conductors with continuous white numbering to DIN VDE 0293
  • Green-yellow grounding in the outer layer (3 conductors and above)
  • Conductors stranded in layers with optimal selected lay length
  • Conductor wrapping with fleece
  • Special full-polyurethane outer jacket TMPU, to DIN VDE 0282 part 10, appendix A
  • Color: Grey (RAL 7001)
Application

PURö-JZ-HF is an extremely robust cable noted for its good tear and abrasion resistance. Due to its good performance with mineral oils and especially in connection with coolants, this cable is well-suited for use in the machinery, tool making and steel industries in critical areas. Its high abrasion resistance and good flexing ability make it quick and easy to install and, with its low bending radius, ideal for use with cable trays.
For applications which go beyond standard solutions (for example for composting appliances or high shelf conveyors with extremely high processing speeds etc.) we recommend for our specially developed inquiry sheet for energy guiding systems.
Before installation in cable trays, please read the instructions. For further technical details, see selection table for drag chain cables.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.

Properties
  • Suitable for outdoor installation, laying in ground and resistant to UV-radiation, oxygen, ozone and hydrolysis, conditionally resistant to microbes
  • Low adhesion
  • Flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • G = with green-yellow grounding
    x = without green-yellow earth conductor (OZ)
  • Cross-linked types also available on request
  • Shielded type: PURÖ-JZ-HF-YCP
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
