PDF Printable PDF

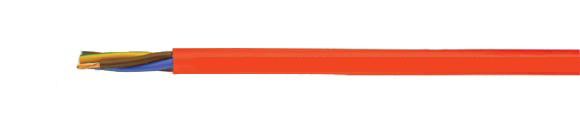

Control Cable: PUR-750

Halogen-Free

Hi-Tech Controls, Inc, European wires and cables

Hi-Tech Controls, , European   PUR-750, Halogen-Free Cable, Color Coded, ((N)05 QQ-F / (N)07 QQ-F), Control Cable

Part-No.
Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
49700 PUR-750 2X0.75, orange   6.3 15.0 44.0 18
49701 PUR-750 3G0.75, orange 6.8 22.0 55.0 18
49702 PUR-750 4G0.75, orange 7.4 29.0 70.0 18
49703 PUR-750 5G0.75, orange 8.3 36.0 91.0 18
49704 PUR-750 7G0.75, orange 9.7 50.0 130.0 18
49705 PUR-750 12G0.75, orange 12.1 86.0 192.0 18
49706 PUR-750 18G0.75, orange 14.2 130.0 290.0 18
49707 PUR-750 25G0.75, orange 17.6 180.0 405.0 18
49708 PUR-750 2X1, orange   6.8 20.0 50.0 17
49709 PUR-750 3G1, orange 7.2 29.0 65.0 17
49710 PUR-750 4G1, orange 7.8 38.0 87.0 17
49711 PUR-750 5G1, orange 8.7 48.0 106.0 17
49712 PUR-750 6G1, orange 9.5 58.0 135.0 17
49713 PUR-750 7G1, orange 10.2 67.0 160.0 17
49714 PUR-750 8G1, orange 11.2 77.0 185.0 17
49715 PUR-750 10G1, orange 12.6 96.0 210.0 17
49716 PUR-750 12G1, orange 12.8 115.0 240.0 17
49717 PUR-750 16G1, orange 14.3 154.0 310.0 17
49718 PUR-750 18G1, orange 15.3 173.0 353.0 17
49719 PUR-750 20G1, orange 16.2 192.0 390.0 17
49720 PUR-750 25G1, orange 18.8 240.0 495.0 17
49721 PUR-750 2X1.5, orange   8.2 29.0 70.0 16
49722 PUR-750 3G1.5, orange 8.7 43.0 95.0 16
49723 PUR-750 4G1.5, orange 9.7 58.0 120.0 16
49724 PUR-750 5G1.5, orange 10.6 72.0 164.0 16
49725 PUR-750 7G1.5, orange 12.8 101.0 210.0 16
49726 PUR-750 10G1.5, orange 15.5 150.0 290.0 16
49727 PUR-750 12G1.5, orange 15.8 172.0 340.0 16
49728 PUR-750 16G1.5, orange 17.9 230.0 440.0 16
49729 PUR-750 18G1.5, orange 19.0 259.0 508.0 16
49730 PUR-750 20G1.5, orange 20.0 300.0 560.0 16
49731 PUR-750 25G1.5, orange 23.5 360.0 722.0 16
49732 PUR-750 2X2.5, orange   9.8 48.0 110.0 14
49733 PUR-750 3G2.5, orange 10.5 72.0 150.0 14
49734 PUR-750 4G2.5, orange 11.6 96.0 180.0 14
49735 PUR-750 5GX2.5, orange 13.0 120.0 240.0 14
49736 PUR-750 7G2.5, orange 15.5 168.0 340.0 14
49737 PUR-750 12G2.5, orange 19.3 288.0 520.0 14
49738 PUR-750 16G2.5, orange 21.6 394.0 680.0 14
49739 PUR-750 18G2.5, orange 23.0 432.0 778.0 14
49740 PUR-750 20G2.5, orange 24.4 480.0 860.0 14
49741 PUR-750 25G2.5, orange 28.5 600.0 1083.0 14
49742 PUR-750 3G4, orange   12.2 115.0 220.0 12
49743 PUR-750 4G4, orange 13.4 154.0 280.0 12
49744 PUR-750 5G4, orange 15.1 192.0 350.0 12
49745 PUR-750 7G4, orange 18.2 269.0 470.0 12
49746 PUR-750 4G6, orange   15.8 230.0 400.0 10
49747 PUR-750 5G6, orange 17.5 288.0 500.0 10
49748 PUR-750 7G6, orange 21.0 403.0 700.0 10
49749 PUR-750 4G10, orange   20.6 384.0 640.0 8
49750 PUR-750 5G10, orange 22.7 480.0 800.0 8
49751 PUR-750 7G10, orange 26.6 672.0 1180.0 8
49752 PUR-750 4G16, orange   23.6 614.0 920.0 6
49753 PUR-750 5G16, orange 26.2 768.0 1180.0 6
49754 PUR-750 4G25, orange   29.4 960.0 1400.0 4
49755 PUR-750 5G25, orange 32.7 1200.0 1740.0 4
49756 PUR-750 4G35, orange   33.1 1344.0 1870.0 2
49757 PUR-750 5G35, orange 36.8 1680.0 2320.0 2
49758 PUR-750 4G50, orange   38.4 1920.0 2700.0 1
49759 PUR-750 5G50, orange 43.0 2400.0 3300.0 1
49760 PUR-750 4G70, orange   44.0 2688.0 3700.0 2/0
49761 PUR-750 5G70, orange 49.5 3660.0 4900.0 2/0
49918 PUR-750 4G95, orange   51.2 3648.0 4850.0 3/0
49762 PUR-750 5G95, orange 57.5 4560.0 6000.0 3/0
49763 PUR-750 4G120, orange   55.0 4610.0 6005.0 4/0
Technical Data
  • Special PUR cable adapted to DIN VDE 0282 part 10
  • Temperature Range
    Flexing
    -40°C to +80°C (-40°F to +176°F)
    (up to +100°C/+212°F for short periods)
  • Nominal Voltage
    U0/U 300/500 V up to 1 mm²
    U0/U 450/750 V as of 1.5 mm²
  • Test Voltage
    2000 V up to 1 mm²
    2500 V as of 1,5 mm²
  • Insulation Resistance
    Min. 20 MOhm x km
  • Tensile Strength 20 N/mm² (Cu)
  • Minimum Bending Radius
    Flexing 10x cable Ø
    Fixed Installation 5x cable Ø
  • Radiation Resistance
    Up to 100x106 cJ/kg (up to 100 Mrad)
Approvals
RoHSCE RoHS
Cable Construction
  • Bare copper, fine wire conductors, bunch stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
  • PUR conductor insulation
  • Color coded to DIN VDE 0293-308 and as of 6 conductors number coded
  • For two conductors: brown, blue
  • Green-yellow grounding in the outer layer (3 conductors and above)
  • Conductors stranded in layers with optimal lay length
  • PUR outer jacket halogen-free
  • Jacket color: orange (RAL 2004)
Application

Especially suited for installation in all areas demanding good performance under extreme conditions. These cable types have been successfully in use in areas such as steel works, heating and air-conditioning systems, in machinery and industrial plant equipment and on building sites etc.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.

Properties
  • High flexibility at low temperatures
  • Useable for foodstuffs
  • High abrasion resistance
  • Resistant to: Oils and fats, non-alcoholic fuels and kerosene, atmospheric influences, UV-radiation, oxygen and ozone, microbes and rotting, sea and waste water, vibrations
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • G = with green-yellow grounding
    X = without green-yellow earth conductor (OZ)
  • AWG sizes are approximate equivalent sizes. The actual cross-section is in mm2.
Cable Accessories
  • Coming Soon!
