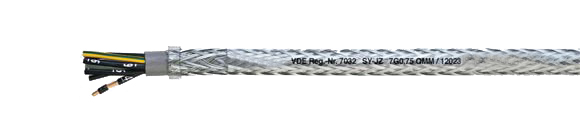

Control Cable: SY-JZ
Flexible, Number Coded, With Steel Wire Braiding

Sealcon, Inc, European & Domestic cable

Sealcon, - SY-JZ, Number Code, Flexible with Steel Wire Braiding, RoHS Compliant, Control Cable
AWG Selection
20
 20
18
 18
17
 17
16
 16
14
 14
12
 12
10
 10
8
 8
6
 6
4
 4
2
 2
1
 1
2/0
 2/0
3/0
 3/0
4/0
 4/0
300 kcmil
 300
Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm		 Copper weight
kg/km 		Weight
ca. kg/km 		AWG
12001 SY - JZ 2x0.5  7.3 9.6 80.0 20
12002 SY - JZ 3G0.5 7.6 14.4 92.0 20
12003 SY - JZ 4G0.5 8.2 19.2 102.0 20
12004 SY - JZ 5G0.5 8.9 24.0 119.0 20
12005 SY - JZ 7G0.5 9.5 33.6 157.0 20
12006 SY - JZ 10G0.5 11.1 48.0 205.0 20
12007 SY - JZ 12G0.5 11.8 58.0 218.0 20
12008 SY - JZ 14G0.5 12.5 67.0 242.0 20
12009 SY - JZ 18G0.5 13.6 86.0 340.0 20
12010 SY - JZ 21G0.5 14.3 101.0 370.0 20
12114 SY - JZ 25G0.5 15.7 120.0 406.0 20
12012 SY - JZ 30G0.5 17.9 144.0 439.0 20
12013 SY - JZ 35G0.5 17.9 168.0 500.0 20
12014 SY - JZ 40G0.5 18.4 192.0 565.0 20
12015 SY - JZ 42G0.5 19.1 202.0 593.0 20
12016 SY - JZ 50G0.5 20.9 240.0 690.0 20
12017 SY - JZ 61G0.5 22.5 293.0 843.0 20
12018 SY - JZ 80Gx0.5 25.4 384.0 1050.0 20
12011 SY - JZ 100G0.5 28.6 480.0 1240.0 20
12019 SY - JZ 2x0.75  7.9 14.4 98.0 18
12020 SY - JZ 3G0.75 8.2 21.6 103.0 18
12021 SY - JZ 4G0.75 8.7 28.8 122.0 18
12022 SY - JZ 5G0.75 9.5 36.0 142.0 18
12112 SY - JZ 6G0.75 10.1 43.2 180.0 18
12023 SY - JZ 7G0.75 10.3 50.0 185.0 18
12188 SY - JZ 8G0.75 10.8 57.6 201.0 18
12024 SY - JZ 9G0.75 11.8 65.0 249.0 18
12113 SY - JZ 10G0.75 11.8 72.0 252.0 18
12025 SY - JZ 12G0.75 12.8 86.0 292.0 18
12026 SY - JZ 15G0.75 14.2 108.0 335.0 18
12027 SY - JZ 18G0.75 15.0 130.0 388.0 18
12028 SY - JZ 21Gx0.75 15.5 151.0 474.0 18
12029 SY - JZ 25G0.75 17.3 180.0 503.0 18
12030 SY - JZ 32G0.75 19.1 230.0 644.0 18
12031 SY - JZ 34G0.75 19.9 245.0 663.0 18
12032 SY - JZ 41G0.75 21.2 296.0 741.0 18
12033 SY - JZ 50G0.75 23.2 360.0 925.0 18
12034 SY - JZ 61G0.75 252 439.0 1082.0 18
12035 SY - JZ 2x1  8.2 19.2 112.0 17
12036 SY - JZ 3G1 8.5 28.8 132.0 17
12037 SY - JZ 4G1 9.2 38.4 143.0 17
12038 SY - JZ 5G1 9.9 48.0 166.0 17
12039 SY - JZ 6G1 10.5 58.0 22.0 17
12040 SY - JZ 7G1 10.7 67.0 227.0 17
12041 SY - JZ 8G1 11.3 77.0 227.0 17
12042 SY - JZ 9G1 12.6 86.0 295.0 17
12043 SY - JZ 12G1 13.4 115.0 340.0 17
12044 SY - JZ 14G1 14.2 134.0 420.0 17
12045 SY - JZ 18G1 15.7 173.0 500.0 17
12046 SY - JZ 20G1 16.3 192.0 532.0 17
12047 SY - JZ 25G1 18.4 240.0 664.0 17
12048 SY - JZ 34G1 20.9 326.0 845.0 17
12049 SY - JZ 36G1 20.9 346.0 857.0 17
12050 SY - JZ 41G1 22.2 394.0 993.0 17
12051 SY - JZ 50G1 24.4 480.0 1112.0 17
12052 SY - JZ 56G1 25.5 538.0 1225.0 17
12053 SY - JZ 61G1 26.3 586.0 1306.0 17
12054 SY - JZ 65G1 26.9 624.0 1504.0 17
12055 SY - JZ 80G1 30.0 768.0 1750.0 17
12056 SY - JZ 100G1 34.6 960.0 1950.0 17
12057 SY - JZ 2x1.5  8.9 29.0 129.0 16
12058 SY - JZ 3G1.5 9.3 43.0 149.0 16
12059 SY - JZ 4G1.5 9.9 58.0 185.0 16
12060 SY - JZ 5G1.5 10.8 72.0 205.0 16
12109 SY - JZ 6G1.5 11.6 87.0 255.0 16
12061 SY - JZ 7G1.5 12.5 101.0 285.0 16
12062 SY - JZ 8G1.5 13.6 115.0 340.0 16
12063 SY - JZ 9G1.5 14.3 130.0 347.0 16
12064 SY - JZ 10G1.5 14.9 144.0 418.0 16
12065 SY - JZ 11G1.5 15.1 158.0 430.0 16
12066 SY - JZ 12G1.5 15.1 173.0 444.0 16
12067 SY - JZ 14G1.5 15.7 202.0 533.0 16
12068 SY - JZ 18G1.5 17.3 259.0 593.0 16
12069 SY - JZ 25G1.5 20.9 360.0 781.0 16
12070 SY - JZ 32G1.5
 22.6 461.0 1015.0 16
12071 SY - JZ 34G1.5
 22.9 490.0 1124.0 16
12072 SY - JZ 42G1.5
 24.6 605.0 1401.0 16
12073 SY - JZ 50G1.5
 27.1 720.0 1583.0 16
12074 SY - JZ 61G1.5
 29.8 878.0 1810.0 16
12075 SY - JZ 80G1.5
 33.2 1152.0 2316.0 16
12076 SY - JZ 100G1.5
 36.4 1440.0 2900.0 16
12077 SY - JZ 2x2.5
 10.4 48.0 185.0 14
12078 SY - JZ 3G2.5
 11.0 72.0 248.0 14
12079 SY - JZ 4G2.5
 11.9 96.0 290.0 14
12080 SY - JZ 5G2.5
 12.8 120.0 347.0 14
12081 SY - JZ 7G2.5
 15.2 168.0 420.0 14
12082 SY - JZ 12x2.5 18.2 288.0 660.0 14
12083 SY - JZ 14G2.5
 18.9 336.0 750.0 14
12084 SY - JZ 18G2.5
 21.5 432.0 893.0 14
12085 SY - JZ 20G2.5
 22.6 480.0 1169.0 14
12086 SY - JZ 25G2.5
 25.5 600.0 1458.0 14
12087 SY - JZ 30G2.5
 26.7 720.0 1686.0 14
12088 SY - JZ 34G2.5
 28.7 816.0 1869.0 14
12089 SY - JZ 50G2.5
 34.3 1200.0 2200.0 14
12090 SY - JZ 61G2.5
 37.7 1464.0 3000.0 14
12115 SY - JZ 3G4
 12.6 117.0 350.0 12
12091 SY - JZ 4G4
 13.8 154.0 428.0 12
12092 SY - JZ 5G4
 15.1 192.0 504.0 12
12093 SY - JZ 7G4
 16.4 269.0 640.0 12
12094 SY - JZ 11G4 21.2 422.0 1204.0 12
12095 SY - JZ 4G6
 15.8 230.0 571.0 10
12096 SY - JZ 5G6
 17.3 288.0 671.0 10
12097 SY - JZ 7G6
 19.0 403.0 845.0 10
12098 SY - JZ 4G10
 19.4 384.0 943.0 8
12099 SY - JZ 5G10 21.3 480.0 1065.0 8
12100 SY - JZ 7G10
 23.6 672.0 1551.0 8
12101 SY - JZ 4G16
 23.8 614.0 1360.0 6
12102 SY - JZ 5G16
 26.6 768.0 1740.0 6
12103 SY - JZ 7G16 29.2 1075.0 2166.0 6
12104 SY - JZ 4G25  29.3 960.0 2020.0 4
12105 SY - JZ 5G25 32.5 1200.0 2465.0 4
12106 SY - JZ 4G35  33.4 1344.0 2570.0 2
12107 SY - JZ 5G35 37.1 1680.0 3185.0 2
12108 SY - JZ 4G50  39.8 1920.0 3513.0 1
12116 SY - JZ 5G50 44.1 2400.0 4248.0 1
12111 SY - JZ 4G70  46.3 2688.0 4810.0 2/0
12117 SY - JZ 5G70 50.9 3360.0 5880.0 2/0
12110 SY - JZ 4G95  51.4 3648.0 6360.0 3/0
12118 SY - JZ 5G95 56.5 4560.0 8071.0 3/0
12119 SY - JZ 4G120  56.6 4608.0 8170.0 4/0
12327 SY - JZ 4G150  64.3 5760.0 9970.0 300 kcmil
Technical Data
  • Special PVC control cables
  • Adapted to DIN VDE 0281, 0293, 0295
  • Temperature Range
    Flexing
    -15�C to +80�C (+5�F to +176�F)
    Fixed Installation
    -40�C to +80�C (-40�F to +176�F)
  • Nominal Voltage U0/U 300/500 V
  • Test Voltage 4000 V
  • Breakdown Voltage min. 8000 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Minimum Bending Radius
    Flexing 20x cable �
    Fixed Installation 6x cable �
  • Radiation Resistance
    Up to 80x106 cJ/kg (up to 80 Mrad)
Approvals
RoHSCE IPA PCT RoHS
Cable Construction
  • Bare copper, fine wire conductors to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
  • Conductor insulation of special PVC Z 7225
  • Black conductors with white figure imprint to DIN VDE 0293
  • Green-yellow grounding in the outer layer (3 conductors and above)
  • Conductors stranded in layers with optimal lay-length
  • Special PVC inner jacket
  • Galvanized steel wire shielding
  • Special PVC outer jacket
  • Color transparent (also available in gray)
Application
SY - JZ cables are used as measuring and control cables in tool machinery, plant installation, power stations and in data equipment. The braided shielding offers best possible protection against mechanical damage. The galvanized coating on the steel wire braiding not only helps protect against corrosion, but also notably improves the soldering performance.
The clear transparent outer jacket gives the cable in addition an optical revaluation.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • Extensively oil resistant
  • For Chemical Resistance, see table Technical Information
  • PVC self-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B) for outer jacket gray
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • G = with green-yellow ground conductor
    x = without green-yellow grounding (OZ)
  • Further dimensions available on request
  • These cables con be also delivered with colored conductors (SY-JB)
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm�.
  • Clean room qualification tested with analog type. Please note "clean room qualified" when ordering.
  • Shielded type: SY-JB
