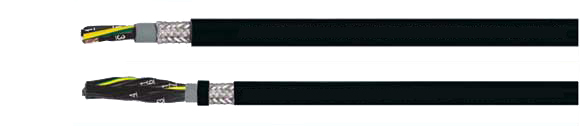

Control Cable | MULTISPEED� 500-C-PVC Shielded

Part-No.	Description & No. Conductors x cross-sec. mm²	Outer Diameter mm	Copper weight kg/km	Weight ca. kg/km	AWG
24086	MULTISPEED 500-C-PVC 2X0.5	6.2	30.0	88.0	20
24087	MULTISPEED 500-C-PVC 3G0.5	6.7	36.0	101.0	20
24088	MULTISPEED 500-C-PVC 4G0.5	7.2	42.0	116.0	20
24089	MULTISPEED 500-C-PVC 5G0.5	7.6	48.0	146.0	20
24090	MULTISPEED 500-C-PVC 7G0.5	11.4	64.0	181.0	20
24091	MULTISPEED 500-C-PVC 9G0.5	11.4	80.0	219.0	20
24092	MULTISPEED 500-C-PVC 12G0.5	12.4	105.0	271.0	20
24093	MULTISPEED 500-C-PVC 18G0.5	14.7	137.0	374.0	20
24094	MULTISPEED 500-C-PVC 25G0.5	17.1	210.0	542.0	20
24095	MULTISPEED 500-C-PVC 2X0.75	6.8	40.0	96.0	18
24096	MULTISPEED 500-C-PVC 3G0.75	7.3	48.0	111.0	18
24097	MULTISPEED 500-C-PVC 4G0.75	7.8	55.0	140.0	18
24098	MULTISPEED 500-C-PVC 5G0.75	8.3	66.0	161.0	18
24099	MULTISPEED 500-C-PVC 7G0.75	12.7	85.0	227.0	18
24100	MULTISPEED 500-C-PVC 12G0.75	13.7	135.0	317.0	18
24101	MULTISPEED 500-C-PVC 18G0.75	17.1	190.0	486.0	18
24102	MULTISPEED 500-C-PVC 25G0.75	19.5	275.0	651.0	18
24103	MULTISPEED 500-C-PVC 3G1	7.6	59.0	131.0	17
24104	MULTISPEED 500-C-PVC 4G1	8.1	70.0	164.0	17
24105	MULTISPEED 500-C-PVC 5G1	8.9	84.0	198.0	17
24106	MULTISPEED 500-C-PVC 7G1	13.6	106.0	252.0	17
24107	MULTISPEED-500-C-PVC 12G1	14.6	174.0	410.0	17
24108	MULTISPEED 500-C-PVC 18G1	18.4	240.0	550.0	17
24109	MULTISPEED 500-C-PVC 25G1	21.0	332.0	756.0	17
24110	MULTISPEED 500-C-PVC 3G1.5	8.4	75.0	166.0	16
24111	MULTISPEED 500-C-PVC 4G1.5	9.1	90.0	199.0	16
24112	MULTISPEED 500-C-PVC 5G1.5	10.2	108.0	229.0	16
24113	MULTISPEED 500-C-PVC 7G1.5	15.7	157.0	304.0	16
24114	MULTISPEED 500-C-PVC 12G1.5	17.4	240.0	502.0	16
24115	MULTISPEED 500-C-PVC 18G1.5	21.3	355.0	709.0	16
24116	MULTISPEED 500-C-PVC 25G1.5	24.3	448.0	939.0	16
24117	MULTISPEED 500-C-PVC 4G2.5	11.2	134.0	270.0	14
24118	MULTISPEED 500-C-PVC 5G2.5	12.2	175.0	335.0	14

Technical Data

Special drag chain cables for high mechanical stress adapted to DIN VDE 0281 part 13
Temperature Range
Flexing
-5�C to +80�C (+23�F to +176�F)
Fixed Installation
-30�C to +80�C (-22�F to +176�F)
Nominal Voltage U₀/U 300/500 V
Test Voltage 3000 V

Insulation Resistance
Min. 100 MOhm x km
Minimum Bending Radius
Flexing 7.5x cable �
Fixed Installation 4x cable �
Coupling Resistance
Max. 250 Ohm x km
Radiation Resistance
Up to 80x10⁶ cJ/kg (up to 80 Mrad)

Approvals

Cable Construction

Bare copper, fine wire conductors with short pitch length
Special TPE conductor insulation
Black conductors with continuous white numbering
Green-yellow grounding (3 conductors and above)
Stranding:
< 7 conductors: conductors stranded in a layer with optimal lay-length around a filler as per construction
> 7 conductors: conductors stranded with optimal lay-length to bunch-construction with low torsion strength, optimal selected short lay-length around a filler
Special-PVC inner jacket YM2 extruded as filler with pressure, gray (RAL 7001)
Shield of copper braid bare, coverage 85% max., with optimal bunch
Fleece separator, ensures good dismantling ability
Special PVC-outer jacket, especially resistant against fatigue strength
Jacket color: Black (RAL 9005)

Application

European MULTISPEED® 500-C-PVC are installed where the extreme requirements for the cables are necessary. The selected materials and lay-up technique permit these highly flexible cables for permanent application in drag chains for long distances, high and low speeds.
These highly flexible PVC control cables are suitable for shift and bending stresses in machines and machine tool constructions. They are installed in dry and moist rooms with free movement without tensile stress or forced movements.
These shielded cables are particularly suitable for interference-free transmission in instrumentation and control engineering applications.
For applications which go beyond standard solutions (for example for composting appliances or high shelf conveyors with extremely high processing speeds etc.), we recommend for our specially developed inquiry sheet for energy guiding systems.
Before installation in cable trays, please read the instructions. For further technical details, see selection table for drag chain cables.
EMC = Electromagnetic compatibillity

To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
= The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.

Properties

PVC self-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
Low adhesion
High property of alternating bending strength
Long life durability due to low friction-resistance
Better chemical resistance
Oil resistance
High stability
Higher economical solution
Reduced � results low weight of moving materials
The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers

Note

G = with green-yellow grounding
x = without green-yellow earth conductor (OZ)
AWG sizes are approximate equivalent values. The actual cross-section is in mm².
Unshielded type: MULTISPEED® 500-PVC
