Cable Index | Flexible Control Cable | Shielded PVC Cable
PDF Printable PDF

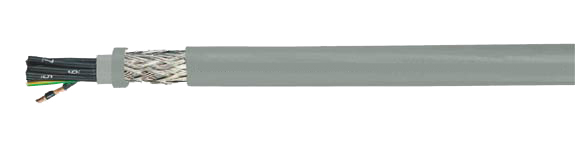

Control Cable: H05VVC4V5-K (NYSLYCYÖ-JZ)

Flexible, Number Coded, Oil Resistant, EMI Preferred Type

Hi-Tech Controls, Inc, European wires and cables

 - H05VVC4V5-K (NYSLYCYÖ-JZ), Shielded, Flexible, Number Coded, VDE Approved, EMI Preferred Type, VDE, HAR, Hi-Tech Controls
AWG Selection
20
20
18
18
17
17
16
16
14
14
Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
13951 HO5VVC4V5-K-OZ 2X0.5  8.0 41.0 92.0 20
13060 H05VVC4V5-K 3G0.5 8.4 45.0 109.0 20
13061 H05VVC4V5-K 4G0.5 9.1 54.0 126.0 20
13062 H05VVC4V5-K 5G0.5 10.1 66.0 156.0 20
13063 H05VVC4V5-K 6G0.5 10.7 73.9 176.0 20
13064 H05VVC4V5-K 7G0.5 11.4 79.0 192.0 20
13952 H05VVC4V5-K 8G0.5 12.5 82.0 211.0 20
13065 H05VVC4V5-K 9G0.5 12.5 94.0 230.0 20
13066 HO5VVC4V5-K 12G0.5 13.5 137.0 280.0 20
13953 H05VVC4V5-K 14G0.5 14.2 142.0 302.0 20
13067 H05VVC4V5-K 18G0.5 15.8 156.0 384.0 20
13068 H05VVC4V5-K 25G0.5 18.6 250.0 556.0 20
13954 H05VVC4V5-K 27G0.5 18.6 255.0 599.0 20
13069 H05VVC4V5-K 34G0.5 20.8 316.0 634.0 20
13955 H05VVC4V5-K 36G0.5 20.8 320.0 620.0 20
13129 H05VVC4V5-K 41G0.5 23.0 348.0 770.0 20
13070 H05VVC4V5-K 50G0.5 25.0 407.0 970.0 20
13071 H05VVC4V5-K 61G0.5 26.8 520.0 1072.0 20
13956 H05VVC4V5-K 65G0.5 28.4 563.0 1198.0 20
13957 H05VVC4V5-K-OZ 2X0.75  8.3 46.0 102.0 18
13072 H05VVC4V5-K 3G0.75 8.8 57.0 115.0 18
13073 H05VVC4V5-K 4G0.75 9.8 63.0 150.0 18
13074 H05VVC4V5-K 5G0.75 10.8 76.0 173.0 18
13075 H05VVC4V5-K 6G0.75 11.4 82.0 195.0 18
13076 H05VVC4V5-K 7G0.75 12.1 100.0 235.0 18
13958 H05VVC4V5-K 8G0.75 12.7 112.0 268.0 18
13077 H05VVC4V5-K 9G0.75 13.8 130.0 285.0 18
13078 H05VVC4V5-K 12G0.75 14.3 175.0 327.0 18
13959 H05VVC4V5-K 14G0.75 14.4 190.0 362.0 18
13079 H05VVC4V5-K 18G0.75 16.9 240.0 488.0 18
13080 H05VVC4V5-K 25G0.75 20.0 306.0 654.0 18
13960 H05VVC4V5-K 27G0.75 20.0 326.0 708.0 18
13081 H05VVC4V5-K 34G0.75 22.1 346.0 821.0 18
13961 H05VVC4V5-K 36G0.75 22.1 358.0 899.0 18
13130 H05VVC4V5-K 41G0.75 23.9 403.0 970.0 18
13082 H05VVC4V5-K 50G0.75 26.8 470.0 1160.0 18
13083 H05VVC4V5-K 61G0.75 29.4 550.0 1402.0 18
13962 H05VVC4V5-K 65G0.75 31.2 594.0 1504.0 18
13963 H05VVC4V5-K-OZ 2X1  8.6 54.0 114.0 17
13084 H05VVC4V5-K 3G1 9.3 64.0 142.0 17
13085 H05VVC4V5-K 4G1 10.2 76.0 175.0 17
13086 H05VVC4V5-K 5G1 11.0 89.0 205.0 17
13087 H05VVC4V5-K 6G1 11.8 101.0 236.0 17
13088 H05VVC4V5-K 7G1 12.9 114.0 264.0 17
13964 H05VVC4V5-K 8G1 13.6 130.0 301.0 17
13089 H05VVC4V5-K 9G1 14.4 144.0 335.0 17
13090 H05VVC4V5-K 12G1 15.6 186.0 420.0 17
13965 H05VVC4V5-K 14G1 15.7 198.0 433.0 17
13091 H05VVC4V5-K 18G1 17.4 284.0 561.0 17
13966 H05VVC4V5-K 19G1 17.4 307.0 584.0 17
13092 H05VVC4V5-K 25G1 21.1 387.0 766.0 17
13967 H05VVC4V5-K 27G1 21.9 410.0 822.0 17
13093 H05VVC4V5-K 34G1 24.1 500.0 996.0 17
13968 H05VVC4V5-K 36G1 23.8 511.0 1001.0 17
13969 H05VVC4V5-K 37G1 25.1 523.0 1018.0 17
13131 H05VVC4V5-K 41G1 26.0 578.0 1155.0 17
13094 H05VVC4V5-K 50G1 28.5 681.0 1300.0 17
13095 H05VVC4V5-K 61G1 30.1 710.0 1500.0 17
13970 H05VVC4V5-K 65G1 32.4 914.0 1510.0 17
13971 H05VVC4V5-K-OZ 2X1.5  9.1 64.0 146.0 16
13096 H05VVC4V5-K 3G1.5 10.2 82.0 176.0 16
13097 H05VVC4V5-K 4G1.5 10.9 99.0 207.0 16
13098 H05VVC4V5-K 5G1.5 11.6 123.0 235.0 16
13099 H05VVC4V5-K 6G1.5 12.4 125.0 279.0 16
13100 H05VVC4V5-K 7G1.5 13.5 148.0 314.0 16
13972 H05VVC4V5-K 8G1.5 15.6 172.0 345.0 16
13101 H05VVC4V5-K 9G1.5 15.6 187.0 380.0 16
13102 H05VVC4V5-K 12G1.5 16.8 274.0 500.0 16
13973 H05VVC4V5-K 14G1.5 18.3 294.0 560.0 16
13103 H05VVC4V5-K 18G1.5 20.0 386.0 707.0 16
13974 H05VVC4V5-K 19G1.5 20.4 394.0 723.0 16
13104 H05VVC4V5-K 25G1.5 24.2 531.0 950.0 16
13975 H05VVC4V5-K 27G1.5 24.6 546.0 1014.0 16
13105 H05VVC4V5-K 32G1.5 26.0 638.0 1133.0 16
13106 H05VVC4V5-K 34G1.5 26.3 671.0 1204.0 16
13976 H05VVC4V5-K 36G1.5 27.7 700.0 1261.0 16
13977 HO5VVC4V5-K 37G1.5 27.7 720.0 1300.0 16
13132 H05VVC4V5-K 41G1.5 29.1 840.0 1453.0 16
13107 H05VVC4V5-K 50G1.5 34.0 997.0 1663.0 16
13108 H05VVC4V5-K 61G1.5 36.5 1120.0 1852.0 16
13978 H05VVC4V5-K 65G1.5 38.1 1197.0 1971.0 16
13985 H05VVC4V5-K-OZ 2X2.5  11.4 110.0 190.0 14
13109 H05VVC4V5-K 3G2.5 11.7 148.0 243.0 14
13110 H05VVC4V5-K 4G2.5 12.8 169.0 280.0 14
13111 H05VVC4V5-K 5G2.5 13.9 220.0 342.0 14
13112 H05VVC4V5-K 7G2.5 15.9 284.0 439.0 14
13979 H05VVC4V5-K 8G2.5 18.7 314.0 489.0 14
13113 H05VVC4V5-K 12G2.5 20.6 470.0 760.0 14
13980 H05VVC4V5-K 14G2.5 22.5 504.0 890.0 14
13114 H05VVC4V5-K 18G2.5 24.3 572.0 1052.0 14
13115 H05VVC4V5-K 25G2.5 29.0 740.0 1375.0 14
13981 H05VVC4V5-K 27G2.5 29.8 971.0 1507.0 14
13116 H05VVC4V5-K 34G2.5 33.0 1179.0 1892.0 14
13982 H05VVC4V5-K 36G2.5 33.3 1268.0 1998.0 14
13983 H05VVC4V5-K 41G2.5 36.0 1473.0 2286.0 14
13117 H05VVC4V5-K 50G2.5 38.5 1660.0 2673.0 14
13118 H05VVC4V5-K 61G2.5 42.0 1992.0 3085.0 14
Technical Data
  • Control cable, special PVC with oil resistant outer jacket to DIN VDE 0281 part 13, HD 21.13S1 and IEC 60227/74
  • Temperature Range
    Flexing
    -5°C to +70°C (+23°F to +158°F)
    Fixed Installation
    -40°C to +70°C (-40°F to +158°F)
  • Nominal Voltage U0/U 300/500 V
  • Test Voltage
    Conductor/Conductor 2 kV, 5 min
    Conductor/Shielding 2 kV, 5 min
  • Breakdown Voltage min. 4000 V
  • Insulation Resistance
    min. 20 MOhm x km
  • Coupling Resistance
    at 30 MHz 250 Ohm/km
  • Minimum Bending Radius
    Flexing 10x cable Ø
    Fixed Installation 5x cable Ø
  • Radiation Resistance
    Up to 80x106 cJ/kg (up to 80 Mrad)
Approvals
RoHSCE pct RoHS
Cable Construction
  • Bare copper, fine wire stranded conductor to DIN VDE 0295 cl. 5, BS 6360 cl. 5, HD 383 and IEC 60228 cl. 5
  • Special PVC conductor insulation TI2 to DIN VDE 0281 part 1
  • Black conductors with white figure imprint to DIN VDE 0293
  • Green-yellow grounding in the outer layer (3 conductors and above)
  • Conductors stranded in layers with optimal lay-length
  • Special PVC inner jacket, TM2 to DIN VDE 0281 part 1
  • Tinned copper braided shielding, covering approx. 85%
  • Special PVC outer jacket, TM5 to DIN VDE 0281 part 1, HD 21.1.S1/A16
  • Color: gray (RAL 7001)
Application
These cables are for flexible use for medium mechanical stresses with free movement without tensile stress or forced movements in dry, moist and wet rooms but not suitable for open air. These are designed as control and connecting cables to machines, tool machineries, conveyor belts and production lines. These cables are not affected by chemical influences. Cables for moist and wet rooms, specially used for machines in breweries, bottling plants and car washing stations.
These cables may be allowed to move once installed provided that the cables are not mechanically stressed during movement. The interconnection of parts of machines used for manufacturing purposes including machine tools where some degree of protection against electromagnetic interference is required.
EMI= Electromagnetic Interference
To optimize the EMI features, we recommend a large round contact of the cooper braiding on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • PVC self-extinguishing and flame retardant according to DIN VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • Oil resistant to HD / EN 60811-2-1
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • G = with green-yellow ground conductor
    x = without green-yellow grounding (OZ)
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
  • Unshielded type: H05VV5-F (NYSLÖ-JZ)
Cable Accessories
  • Coming Soon!
