Cable Index | Flexible Control Cable | Shielded PVC Cable
PDF Printable PDF

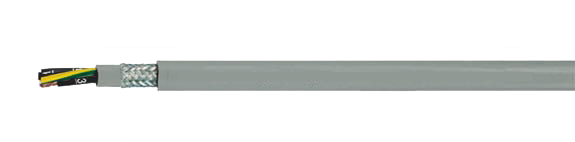

Control Cable: (H)05VVC4V5-K (NYSLYCYÖ-JZ)

Number Coded, Shielded, Oil Resistant, EMI Preferred Type

Hi-Tech Controls, Inc, European & Domestic cable

Hi-Tech Control,  - (H)05VVC4V5-K ((N)YSLYCYÖ-JZ), Shielded, Flexible, Number Coded, VDE Approved, EMI Preferred Type, VDE, HAR
Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
13170 (H)05VVC4V5-K-OZ 2X4 12.5 124.0 236.0 12
13171 (H)05VVC4V5-K 3G4 13.9 178.0 361.0 12
13172 (H)05VVC4V5-K 4G4 15.7 234.0 430.0 12
13173 (H)05VVC4V5-K 5G4 17.1 284.0 509.0 12
13175 (H)05VVC4V5-K 7G4 20.5 321.0 660.0 12
13178 (H)05VVC4V5-K 12G4 25.5 581.0 979.0 12
13179 (H)05VVC4V5-K-OZ 2X6 14.6 176.0 296.0 10
13180 (H)05VVC4V5-K 3G6 15.7 245.0 420.0 10
13181 (H)05VVC4V5-K 4G6 17.3 316.0 579.0 10
13182 (H)05VVC4V5-K 5G6 19.5 442.0 719.0 10
13183 (H)05VVC4V5-K 7G6 23.1 530.0 1031.0 10
13185 (H)05VVC4V5-K 3G10 19.9 367.0 655.0 8
13186 (H)05VVC4V5-K 4G10 22.0 549.0 894.0 8
13187 (H)05VVC4V5-K 5G10 24.6 604.0 927.0 8
13188 (H)05VVC4V5-K 7G10 29.5 820.0 1518.0 8
13190 (H)05VVC4V5-K 3G16 22.9 653.0 993.0 6
13191 (H)05VVC4V5-K 4G16 25.5 807.0 1340.0 6
13192 (H)05VVC4V5-K 5G16 27.9 940.0 1626.0 6
13193 (H)05VVC4V5-K 7G16 33.9 1345.0 2080.0 6
13196 (H)05VVC4V5-K 4G25 31.6 1169.0 1692.0 4
13197 (H)05VVC4V5-K 5G25 35.1 1420.0 1972.0 4
13198 (H)05VVC4V5-K 3G35 31.1 1250.0 1704.0 2
13199 (H)05VVC4V5-K 4G35 34.4 1680.0 2320.0 2
13189 (H)05VVC4V5-K 5G35 37.4 2020.0 2780.0 2
13194 (H)05VVC4V5-K 3G50 36.9 1887.0 2661.0 1
13195 (H)05VVC4V5-K 4G50 40.3 2370.0 3194.0 1
13184 (H)05VVC4V5-K 5G50 449 2880.0 4247.0 1
Technical Data
  • Control cable, special PVC with oil resistant outer jacket to DIN VDE 0281 part 13, HD 21.13S1 and IEC 60227/74
  • Temperature Range
    Flexing
    -5°C to +70°C (+23°F to +158°F)
    Fixed Installation
    -40°C to +70°C (-40°F to +158°F)
  • Nominal Voltage U0/U 300/500 V
  • Test Voltage
    Conductor/Conductor 2 kV, 5 min
    Conductor/Shielding 2 kV, 5 min
  • Breakdown Voltage min. 4000 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Coupling Resistance
    At 30 MHz 250 Ohm/km
  • Minimum Bending Radius
    Flexing 10x cable Ø
    Fixed Installation 5x cable Ø
  • Radiation Resistance
    up to 80x106 cJ/kg (up to 80 Mrad)
Approvals
RoHSCE RoHS pct
Cable Construction
  • Bare copper, fine wire stranded conductor to DIN VDE 0295 cl. 5, BS 6360 cl. 5, HD 383 and IEC 60228 cl. 5
  • Special PVC conductor insulation TI2 to DIN VDE 0281 part 1
  • Black conductors with white figure imprint to DIN VDE 0293
  • Green-yellow grounding in the outer layer (3 conductors and above)
  • Conductors stranded in layers with optimal lay-length
  • Special PVC inner jacket, TM2 to DIN VDE 0281 part 1
  • Tinned copper braided shielding, covering approx. 85%
  • Special PVC outer jacket, TM5 to DIN VDE 0281 part 1, HD 21.1.S4/A16
  • Color: gray (RAL 7001)
Application
These cables are for flexible use for medium mechanical stresses with free movement without tensile stress or forced movements in dry, moist and wet rooms but not suitable for open air. These are designed as control and connecting cables to machines, tool machineries, conveyor belts and production lines. These cables are not affected by chemical influences. Cables for moist and wet rooms, specially used for machines in breweries, bottling plants and car washing stations.
These cables may be allowed to move once installed provided that the cables are not mechanically stressed during movement. The interconnection of parts of machines used for manufacturing purposes including machine tools where some degree of protection against electromagnetic interference is required.
EMI= Electromagnetic Interference
To optimize the EMI features, we recommend a large round contact of the cooper braiding on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • PVC self-extinguishing and flame retardant according to DIN VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • Oil resistant to HD / EN 60811-2-1
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • G = with green-yellow ground conductor
    x = without green-yellow grounding (OZ)
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
  • Unshielded type: (H)05VV5-F (N)YSLÖ-JZ
Cable Accessories
  • Coming Soon!
