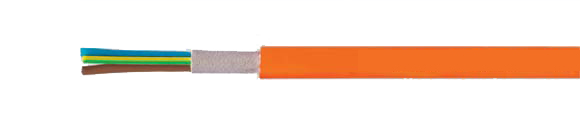

Halogen-Free Security Cable:
N2XH-FE 180/E 90

Installation Security Cable, Halogen-Free, 0.6/1 kV, With Improved Fire Characteristics

Hi-Tech Controls, Inc, European wires and cables

N2XH-FE 180/E 90 security cable, halogen-free, 0.6/1 kV, with improved fire characteristics, RoHS Compliant, RoHS Approved, Hi-Tech Controls, , Halogen-free Security Cables
No. of Conductors Selection
1
1
2
2
3
3
4
4
5
5
7
7
10
10
12
12
24
24

Part-No. Description & No. of conductors x cross-section in mm2 Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
52534  N2XH-FE 180/E 90 1X16 RM 11.5 154.0 250.0 6
52535 N2XH-FE 180/E 90 1X25 RM 13.0 240.0 360.0 4
52536 N2XH-FE 180/E 90 1X35 RM 14.0 336.0 460.0 2
52537 N2XH-FE 180/E 90 1X50 RM

15.5

480.0 610.0 1
52538 N2XH-FE 180/E 90 1X70 RM 17.5 672.0 840.0 2/0
52539 N2XH-FE 180/E 90 1X95 RM 19.5 912.0 1120.0 3/0
52540 N2XH-FE 180/E 90 1X120 RM 21.5 1152.0 1390.0 4/0
52541 N2XH-FE 180/E 90 1X150 RM 23.5 1440.0 1690.0 300 kcmil
52542 N2XH-FE 180/E 90 1X185 RM 25.5 1776.0 2090.0 350 kcmil
52899 N2XH-FE 180/E 90 1X240 RM 28.5 2304.0 2660.0 500 kcmil
52543 N2XH-FE 180/E 90 1X300 RM 31.0 2880.0 3350.0 600 kcmil
52544 N2XH-FE 180/E 90 1X400 RM 34.5 3840.0 4230.0 750 kcmil

52545  N2XH-FE 180/E 90 2X1.5 RE 14.5 29.0 270.0 16
52546 N2XH-FE 180/E 90 2X2.5 RE 15.5 48.0 310.0 14
52547 N2XH-FE 180/E 90 2X4 RE 16.5 77.0 370.0 12
52548 N2XH-FE 180/E 90 2X6 RE 17.5 115.0 440.0 10
52549 N2XH-FE 180/E 90 2X10 RM 19.5 192.0 600.0 8
52550 N2XH-FE 180/E 90 2X16 RM 21.0 307.0 780.0 6
52551 N2XH-FE 180/E 90 2X25 RM 23.5 480.0 1100.0 4
52552 N2XH-FE 180/E 90 2X35 RM 26.5 672.0 1400.0 2
52553 N2XH-FE 180/E 90 2X50 RM 30.0 960.0 1830.0 1
52554 N2XH-FE 180/E 90 2X70 RM 33.0 1344.0 2420.0 2/0
52555 N2XH-FE 180/E 90 2X95 RM 37.5 1824.0 3240.0 3/0
52556 N2XH-FE 180/E 90 2X120 RM 41.0 2304.0 3940.0 4/0

Part-No. Description & No. of conductors x cross-section in mm2 Outer
Diameter
Copper Weight
kg/km
Weight
ca. kg/km
AWG
52557  N2XH-FE 180/E 90 3X1.5 RE 15.0 43.0 260.0 16
52558 N2XH-FE 180/E 90 3X2.5 RE 16.0 72.0 350.0 14
52559 N2XH-FE 180/E 90 3X4 RE 17.0 115.0 420.0 12
52560 N2XH-FE 180/E 90 3X6 RE 18.0 173.0 520.0 10
52561 N2XH-FE 180/E 90 3X10 RM 20.5 288.0 710.0 8
52562 N2XH-FE 180/E 90 3X16 RM 22.5 461.0 950.0 6
52563 N2XH-FE 180/E 90 3X25 RM 26.0 720.0 1370.0 4
52572 N2XH-FE 180/E 90 3X35 / 16 RM 29.5 1162.0 1950.0 2
52564 N2XH-FE 180/E 90 3X35 RM 28.0 1008.0 1750.0 2
52573 N2XH-FE 180/E 90 3X50 / 25 RM 33.5 1680.0 2640.0 1
52565 N2XH-FE 180/E 90 3X50 RM 32.0 1440.0 2310.0 1
52566 N2XH-FE 180/E 90 3X70 RM 35.5 2016.0 3100.0 2/0
52574 N2XH-FE 180/E 90 3X70 / 35 RM 37.0 2352.0 3520.0 2/0
52575 N2XH-FE 180/E 90 3X95 / 50 RM 42.0 3216.0 4710.0 3/0
52567 N2XH-FE 180/E 90 3X95 RM 40.5 2736.0 4180.0 3/0
52576 N2XH-FE 180/E 90 3X120 / 70 RM 46.5 4128.0 5910.0 4/0
52568 N2XH-FE 180/E 90 3X120 RM 44.0 3456.0 5130.0 4/0
52569 N2XH-FE 180/E 90 3X150 RM 48.5 4320.0 6260.0 300 kcmil
52577 N2XH-FE 180/E 90 3X150 / 70 RM 50.0 4992.0 6970.0 300 kcmil
52578 N2XH-FE 180/E 90 3X185 / 95 RM 55.5 6240.0 8750.0 350 kcmil
52570 N2XH-FE 180/E 90 3X185 RM 53.0 5328.0 7720.0 350 kcmil
52579 N2XH-FE 180/E 90 3X240 / 120 RM 61.5 8064.0 11180.0 500 kcmil
52571 N2XH-FE 180/E 90 3X240 RM 59.5 6912.0 9990.0 500 kcmil

52580  N2XH-FE 180/E 90 4X1.5 RE 16.5 58.0 350.0 16
52581 N2XH-FE 180/E 90 4X2.5 RE 17.5 96.0 420.0 14
52582 N2XH-FE 180/E 90 4X4 RE 18.5 154.0 510.0 12
52583 N2XH-FE 180/E 90 4X6 RE 19.5 230.0 630.0 10
52584 N2XH-FE 180/E 90 4X10 RM 22.5 384.0 880.0 8
52585 N2XH-FE 180/E 90 4X16 RM 24.5 614.0 1180.0 6
52586 N2XH-FE 180/E 90 4X25 RM 28.5 960.0 1730.0 4
52587 N2XH-FE 180/E 90 4X35 RM 31.0 1344.0 2220.0 2
52588 N2XH-FE 180/E 90 4X50 RM 35.0 1920.0 2940.0 1
52589 N2XH-FE 180/E 90 4X70 RM 39.0 2688.0 3960.0 2/0
52590 N2XH-FE 180/E 90 4X95 RM 45.0 3648.0 5360.0 3/0
52591 N2XH-FE 180/E 90 4X120 RM 48.5 4608.0 6550.0 4/0
52592 N2XH-FE 180/E 90 4X150 RM 54.0 5760.0 8070.0 300 kcmil
52593 N2XH-FE 180/E 90 4X185 RM 59.0 7104.0 9970.0 350 kcmil
52594 N2XH-FE 180/E 90 4X240 RM 66.0 9216.0 12830.0 500 kcmil

Part-No. Description & No. of conductors x cross-section in mm2 Outer
Diameter
Copper Weight
kg/km
Weight
ca. kg/km
AWG
52595  N2XH-FE 180/E 90 5X1.5 RE 18.0 72.0 420.0 16
52596 N2XH-FE 180/E 90 5X2.5 RE 19.0 120.0 500.0 14
52597 N2XH-FE 180/E 90 5X4 RE 20.0 192.0 610.0 12
52598 N2XH-FE 180/E 90 5X6 RE 21.5 288.0 760.0 10
52599 N2XH-FE 180/E 90 5X10 RM 24.5 480.0 1070.0 8
52600 N2XH-FE 180/E 90 5X16 RM 27.0 768.0 1450.0 6
52601 N2XH-FE 180/E 90 5X25 RM 31.0 1200.0 2120.0 4
52602 N2XH-FE 180/E 90 5X35 RM 34.0 1680.0 2730.0 2
52603 N2XH-FE 180/E 90 5X50 RM 38.5 2400.0 3620.0 1
52604 N2XH-FE 180/E 90 5X70 RM 43.5 3360.0 4940.0 2/0

52605  N2XH-FE 180/E 90 7X1.5 RE 19.5 101.0 480.0 16
52606 N2XH-FE 180/E 90 7X2.5 RE 20.5 168.0 580.0 14
52607 N2XH-FE 180/E 90 7X4 RE 22.0 269.0 730.0 12

52608  N2XH-FE 180/E 90 10X1.5 RE 24.0 144.0 650.0 16
52609 N2XH-FE 180/E 90 10X2.5 RE 25.5 240.0 790.0 14

52610  N2XH-FE 180/E 90 12X1.5 RE 24.5 173.0 720.0 16
52611 N2XH-FE 180/E 90 12X2.5 RE 26.0 288.0 890.0 14

52612  N2XH-FE 180/E 90 24X1.5 RE 33.0 346.0 1270.0 16

Technical Data
  • Halogen-free security cable with improved characteristics in the case of fire to DIN VDE 0266
  • Insulation Integrity
    180 minutes to DIN VDE 0472 part 814
  • Functionality
    90 minutes to DIN VDE 4102 part 12
  • Temperature Range
    -30°C to +70°C (-22°F to +158°F)
  • Permissible Operating Temperature
    at conductor +90°C/+194°F
  • Nominal Voltage U0/U 0.6/1 kV
  • Test Voltage 4000 V
  • Minimum Bending Radius
    Approx. 12x cable Ø
  • Radiation Resistance
    Up to 200x106 cJ/kg (up to 200 Mrad)
  • Caloric Load Values
    See Technical Information
Approvals
RoHSCE PCTVDE FRNC
Cable Construction
  • Bare copper conductor, solid or stranded, to DIN VDE 0295 cl. 1 or cl. 2, BS 6360 cl. 1 or 2, IEC 60228 cl. 1 or cl. 2, HD 383
  • Conductor with double insulation: Flame retardant MICA-tape over conductor
  • Conductor insulation with cross-linked polyethylene, compound type 2XI1 to DIN VDE 0276 part 604
  • Conductors color coding to DIN VDE 0293-308 and 0276 part 604
  • Green-yellow earth-conductor, 3 conductors and above
  • Conductors stranded in layers
  • Overall conductor covering, halogen-free filling compound, pressed
  • Outer jacket of thermoplastic halogen-free polyolefin, compound type HM4 to DIN VDE 0276 part 604, flame retardant, color orange
Tests
  • Flame test to VDE 0482 part 266-2, BS 4066 part 3 / DIN EN 50266-2 / IEC 60332-3 (equivalent DIN VDE 0472 part 804 test method C)
  • Corrosiveness of combustion gases according to VDE 0482 part 267 / DIN EN 50267-2-2 / IEC 60754-2 (equivalent DIN VDE 0472 part 813)
  • Halogen-free according to DIN VDE 0482 part 267 / DIN EN 50267-2-1 / IEC 60754-1 (equivalent DIN VDE 0472 part 815)
  • Smoke density according to VDE 0482 part 1034-1+2 / IEC 61034-1+2 / DIN EN 61034-1+2 / BS 7622 part 1+2 (equivalent DIN VDE 0472 part 816)
  • Insulation integrity under flame propagation to VDE 0472 part 814 IEC 60331
    Burning behavior in fire (functionality) of the complete cable system to DIN 4102 part 12 (90 minutes)
Application
Every place where in case of fire human life and material assets are to be protected and safety consciousness take a special significance, e.g. in industrial complexes, power stations, communal establishment, hotels, airports, underground railway networks, hospitals and outpatients clinic (DIN VDE 0107), department stores, data processing centers, theaters, cinemas, in multi-story buildings, public gatherings, schools etc. (DIN VDE 0108), mining works, offshore plants, leading centers, traffic communication, emergency power supply and alarm systems. Suitable for fixed installation in dry and moist rooms, in, above, on and beneath plaster as well as in walls and in concrete. These cables are suitable for outdoor applications and in underground by using in conduits or tubes.
Additionally valid also DIN VDE 0298 part 1 and 2.
For the installation in conduit all precautions must be taken that no accumulation of water can occur in the pipes.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/15/EG.
Properties
  • Halogen-free; no evolution of corrosive and toxic gases
  • Flame retardant
  • Hardly flammable
  • Self-extinguished and fire resistant
  • No flame propagation, therefore security from fire
  • Low smoke density, no darkening of emergency exits without hindering the fire extinguishing works
  • Toxicologically harmless
  • No self-ignition
  • Maintenance of functionality during the increased current load
  • FE 180: Insulation integrity for 180 minutes. Tests to DIN VDE 0472 part 814 IEC 60331.
    Insulation integrity under direct flame propagation for the test period of 180 minutes.
  • E 90: Functionality of electrical cable systems for minimum 90 minutes. Test method to DIN 4102 part 12. This fulfils the demands of technical guide lines for fire protection (supplement 1 to DIN VDE 0108 part 1).
    The functionality for 90 minutes assures the functional performance of water-pressure-rising stations for the supply to avoid smoke and heat in safety-stairs and inner rooms, ladder shafts and engine rooms for fire brigade lifts, emergency lifts for sickbeds in hospitals and the fire brigade lifts.
  • LS0H = Low Smoke Zero Halogen-Free
Note
  • RM = round conductor, multiple-wire
    RE = round conductor, single-wire
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm2.
Cable Accessories
  • Coming Soon!
