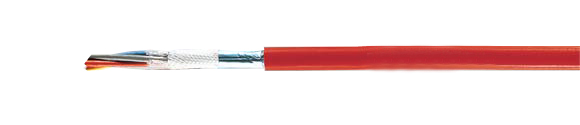

Halogen-Free Security Cable: JE-H(St)H

Bd Fire Warning Cable, FE 180/E 30 to E 90, Outer Jacket Red, Halogen-Free

Hi-Tech Controls, Inc, European wires and cables

JE-H(St)H Bd Fire warning cable, FE 180/E 30 to E 90 (red), halogen-free, RoHS Compliant, RoHS Approved, Hi-Tech Controls, , Halogen-free Security Cables
Part-No. Description, Functionality & No. of pairs x diameter in mm Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
34091 JE-H(St)H, E 30 to E 90, 2x2x0.8 7.4 25.0 74.0 -
34092 JE-H(St)H, E 30 to E 90, 4x2x0.8 10.8 45.0 127.0 -
34093 JE-H(St)H, E 30 to E 90, 8x2x0.8 16.9 85.0 300.0 -
34094 JE-H(St)H, E 30 to E 90, 12x2x0.8 18.5 126.0 336.0 -
34095 JE-H(St)H, E 30 to E 90, 16x2x0.8 20.1 166.0 426.0 -
34096 JE-H(St)H, E 30 to E 90, 20x2x0.8 22.2 206.0 529.0 -
34097 JE-H(St)H, E 30 to E 90, 32x2x0.8 29.1 326.0 859.0 -
34098 JE-H(St)H, E 30 to E 90, 40x2x0.8 34.2 407.0 1094.0 -
34099 JE-H(St)H, E 30 to E 90, 52x2x0.8 37.3 529.0 1280.0 -

34157 JE-H(St)H, E 30, 2x2x0.8 7.5 25.0 67.0 -
34158 JE-H(St)H, E 30, 4x2x0.8 9.3 45.0 103.0 -
34159 JE-H(St)H, E 30, 8x2x0.8 11.4 85.0 168.0 -
34160 JE-H(St)H, E 30, 12x2x0.8 13.0 126.0 237.0 -
34161 JE-H(St)H, E 30, 16x2x0.8 15.7 166.0 303.0 -
34162 JE-H(St)H, E 30, 20x2x0.8 16.5 206.0 361.0 -
34163 JE-H(St)H, E 30, 32x2x0.8 20.3 326.0 553.0 -
34164 JE-H(St)H, E 30, 40x2x0.8 23.4 407.0 699.0 -
34165 JE-H(St)H, E 30, 52x2x0.8 25.2 529.0 865.0 -
Technical Data
  • Flame retardant, halogen-free installation cable, adapted to DIN VDE 0815
  • Insulation Integrity 180 min, tested to DIN VDE 0472 part 814 and IEC 60331
  • Functionality (Burning behavior)
    E 30 to E 90 min (Dependent on corresponding installation technique)
  • Loop Resistance
    Max. 73.2 Ohm/km
  • Temperature Range
    Flexing
    -5°C to +50°C (+23°F to +122°F)
    Fixed Installation
    -30°C to +70°C (-22°F to +158°F)
  • Operating Voltage (peak voltage)
    225 V (Not for purposes of high current and power installation)
  • Test Voltage
    Conductor/conductor 500 V
    Conductor/shield 2000 V Insulation Resistance
    Min. 100 MOhm x km
  • Mutual Capacitance
    Max. 120 nF/km at 800 Hz
    (This values may be extended at 20% with a make-up up to 4 pairs)
  • Capacitance Unbalance
    Max. 200 pF/100 m (20% of the values, but one value up to 400 pF is allowed)
  • Minimum Bending Radius
    Approx. 6x cable Ø
  • Radiation Resistance
    Up to 100x106 cJ/kg (up to 100 Mrad)
  • Caloric Load Values
    See technical information
Approvals
RoHSCE VDE FRNC
Cable Construction
  • Bare copper conductor, solid, 0.8 mm Ø
  • Special conductor insulation halogen-free, cross-linked polymer to DIN VDE 0207 part 23, HI1, flame retardant (E90 with special foil wrapping over conductor)
  • Conductor identification with color rings and ring-groups to DIN VDE 0815
  • Conductors twisted to pairs, each 4 pairs consist to unit, several units stranded to layers
  • Units identified with numbered tape
  • Conductor wrapping with special polyester and glass-fiber tape
  • Shielded with aluminum-laminated polyester tape and solid copper drain wire 0.8 mm Ø
  • Halogen-free outer jacket, flame retardant to DIN VDE 0207 part 24, HM2
  • Jacket color: Red, RAL 3000 with imprint "BRANDMELDEKABEL"
Tests
  • Flame test to VDE 0482 part 266-2, BS 4066 part 3 / DIN EN 50266-2 / IEC 60332-3 (equivalent DIN VDE 0472 part 804 test method C)
  • Corrosiveness of combustion gases according to VDE 0482 part 267 / DIN EN 50267-2-2 / IEC 60754-2 (equivalent DIN VDE 0472 part 813)
  • Smoke density according to VDE 0482 part 1034-1+2 / IEC 61034-1+2 / DIN EN 61034-1+2 / BS 7622 part 1+2 (equivalent DIN VDE 0472 part 816)
  • LS0H = Low Smoke Zero Halogen-Free
Application
Flame resistant, halogen-free, static shielded installation cables for telecommunication purpose. The static shield prevents strong interference impulse. Suitable for fixed installation everywhere, where in case of fire human life and material assets are to be protected and a safety consciousness take a special significance, e.g. in industrial complexes, public buildings, hotels, airports, under ground railway networks, hospitals.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
  • No fire propagation
  • Low smoke density
  • Not for purposes of high current and power installation as well as underground laying.
  • FE 180: Insulation integrity for 180 minutes
    Tests to DIN VDE 0472 part 814 = IEC 60331
    Insulation integrity under direct flame propagation for the test period of 180 minutes
  • E 30: Functionality of electrical cable systems for minimum 30 minutes
    Test to DIN 4102 part 12
    The functionality for 30 minutes assures that when people or animals are to be saved from a building, 30 minutes secures the functional performance of the fire warning and alarm systems, safety and spare lighting, passenger lifts with evacuation circuits, except the cables which are installed within the ladder shafts and engine rooms
  • E 90: Functionality of electrical cable systems for minimum 90 minutes
    Test method to DIN 4102 part 12
    The functionality for 90 minutes assures the functional performance of water-pressure-rising stations for the supply to avoid smoke and heat in safety stairs and inner rooms, ladder shafts and engine rooms for fire brigade lifts, emergency lifts for sickbeds in hospitals and the fire brigade lifts
Note
  • E 30 to E 90
    Functionality (burning behavior) depends on corresponding installation technique
Cable Accessories
  • Coming Soon!
