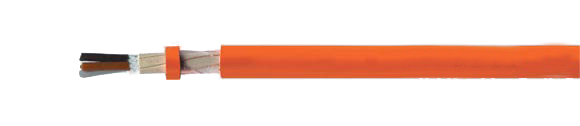

Halogen-Free Security Cable:
N2XCH-FE 180/E 30

Installation Security Cable, Halogen-Free, 0.6/1 kV, With Improved Fire Characteristics

Hi-Tech Controls, Inc, European & Domestic cable

N2XCH-FE 180/E 30 security cable, halogen-free, 0.6/1 kV, with improved fire characteristics, RoHS Compliant, RoHS Approved, Hi-Tech Controls, , Halogen-free Security Cables
No. of Conductors Selection
2
2
3
3
4
4
7
7
30
30

Part-No. Description & No. of conductors x cross-section in mm2 Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
52098  N2XCH-FE 180/E 30 2x.1.5 / 1.5 RE 13.0 52.0 200.0 16
52099 N2XCH-FE 180/E 30 2x2.5 / 2.5 RE 14.0 80.0 250.0 14
52100 N2XCH-FE 180/E 30 2x4 / 4 RE 15.0 123.0 310.0 12
52101 N2XCH-FE 180/E 30 2x6 / 6 RE 16.0 182.0 400.0 10
52102 N2XCH-FE 180/E 30 2x10 / 10 RE 17.5 312.0 570.0 8

52103  N2XCH-FE 180/E 30 3x1.5 / 1.5 RE 13.0 66.0 220.0 16
52104 N2XCH-FE 180/E 30 3x2.5 /2.5 RE 14.0 104.0 270.0 14
52105 N2XCH-FE 180/E 30 3x4 / 4 RE 15.5 161.0 360.0 12
52106 N2XCH-FE 180/E 30 3x6 / 6 RE 16.5 240.0 470.0 10
52107 N2XCH-FE 180/E 30 3x10 / 10 RE 18.5 408.0 680.0 8
52108 N2XCH-FE 180/E 30 3x16 / 16 RE 21.0 643.0 960.0 6
52109 N2XCH-FE 180/E 30 3x25 / 16 RM 25.5 902.0 1390.0 4
52110 N2XCH-FE 180/E 30 3x35 / 16 RM 29.0 1190.0 1720.0 2
52111 N2XCH-FE 180/E 30 3x50 / 25 RM 31.5 1723.0 2320.0 1
52112 N2XCH-FE 180/E 30 3x70 / 35 RM 36.5 2410.0 3260.0 2/0
52113 N2XCH-FE 180/E 30 3x95 / 50 RM 40.0 3296.0 4310.0 3/0
52114 N2XCH-FE 180/E 30 3x120 / 70 RM 46.0 4236.0 5520.0 4/0
52115 N2XCH-FE 180/E 30 3x150 / 70 RM 50.5 5100.0 6620.0 300 kcmil
52116 N2XCH-FE 180/E 30 3x185 / 95 RM 55.0 6383.0 8180.0 350 kcmil
52117 N2XCH-FE 180/E 30 3x240 / 120 RM 61.5 8242.0 10620.0 500 kcmil

Part-No. Description & No. of conductors x cross-section in mm2 Outer
Diameter
Copper Weight
kg/km
Weight
ca. kg/km
AWG
52118  N2XCH-FE 180/E 30 4x1.5 / 1.5 RE 15.0 81.0 260.0 16
52119 N2XCH-FE 180/E 30 4x2.5 / 2.5 RE 16.0 128.0 310.0 14
52120 N2XCH-FE 180/E 30 4x4 / 4 RE 17.0 200.0 420.0 12
52121 N2XCH-FE 180/E 30 4x6 / 6 RE 18.0 297.0 540.0 10
52122 N2XCH-FE 180/E 30 4x10 / 10 RE 20.0 504.0 800.0 8
52123 N2XCH-FE 180/E 30 4x16 / 16 RE 22.5 796.0 1150.0 6
52124 N2XCH-FE 180/E 30 4x25 / 16 RM 28.0 1142.0 1670.0 4
52125 N2XCH-FE 180/E 30 4x35 / 16 RM 30.5 1526.0 2160.0 2
52126 N2XCH-FE 180/E 30 4x50 / 25 RM 32.0 2203.0 2860.0 1
52127 N2XCH-FE 180/E 30 4x70 / 35 RM 39.5 3082.0 3980.0 2/0
52128 N2XCH-FE 180/E 30 4x95 / 50 RM 43.5 4208.0 5300.0 3/0
52129 N2XCH-FE 180/E 30 4x120 / 70 RM 49.5 5388.0 6740.0 4/0
52130 N2XCH-FE 180/E 30 4x150 / 70 RM 55.5 6558.0 8210.0 300 kcmil
52131 N2XCH-FE 180/E 30 4x185 / 95 RM 60.0 8159.0 10200.0 350 kcmil
52132 N2XCH-FE 180/E 30 4x240 / 120 RM 68.0 10546.0 12900.0 500 kcmil

52133  N2XCH-FE 180/E 30 7x1.5 / 2.5 RE 16.5 133.0 360.0 16

52134  N2XCH-FE 180/E 30 30x1.5 / 6 RE 29.0 499.0 1070.0 16
Technical Data
  • Halogen-free security cable with improved characteristics in the case of fire to DIN VDE 0266
  • Insulation Integrity
    180 minutes to DIN VDE 0472 part 814
  • Functionality
    30 minutes to DIN VDE 4102 part 12
  • Temperature Range
    -30°C to +70°C(-22°F to +158°F)
  • Permissible Operating Temperature
    at conductor +90°C/+194°F
  • Nominal Voltage U0/U 0.6/1 kV
  • Test Voltage 4000 V
  • Minimum Bending Radius
    Approx. 15x cable Ø
  • Radiation Resistance
    Up to 200x106 cJ/kg (up to 200 Mrad)
  • Caloric Load Values
    See Technical Information
Approvals
RoHSCE pct VDE
Cable Construction
  • Bare copper conductor, solid or stranded, to DIN VDE 0295 cl. 1 and cl. 2, BS 6360 cl. 1 or 2, IEC 60228 cl. 1 or 2, HD 383
  • Conductor with double insulation:
    Flame retardant MICA-tape over conductor
    Conductor insulation with cross-linked polyethylene, compound type 2XI1 to DIN VDE 0276 part 604
  • Conductors color coding to DIN VDE 0293-308 and 0276 part 604
  • Conductors stranded in layers
  • Overall conductor covering, halogen-free filling compound, pressed
  • Concentric conductor of copper-bare wires with helix of copper tape
  • Outer jacket of thermoplastic halogen-free polyolefin, compound type HM4 to DIN VDE 0276 part 604, flame retardant
  • Color: Orange
  • LS0H = Low Smoke Zero Halogen-Free
  • Tests
    Flame test to VDE 0482 part 266-2, BS 4066 part 3 / EN 50266-2 / IEC 60332-3 (equivalent DIN VDE 0472 part 804 test method C)
  • Corrosiveness of combustion gases according to VDE 0482 part 267 / EN 50267-2-2 / IEC 60754-2 (equivalent DIN VDE 0472 part 813)
  • Halogen-free according to VDE 0482 part 267 / DIN EN 50267-2-1 / IEC 60754-1 (equivalent DIN VDE 0472 part 815)
  • Smoke density according to VDE 0482 part 1034-1+2 / IEC 61034-1+2 / DIN EN 61034-1+2 / BS 7622 part 1+2 (equivalent DIN VDE 0472 part 816)
  • Insulation integrity under flame propagation to VDE 0472 part 814 cong; IEC 60331
    Burning behavior in fire (functionality) of the complete cable system to DIN 4102 part 12 (30 minutes)
Application
Every place where in case of fire human life and material assets are to be protected and safety consciousness take a special significance, e.g. in industrial complexes, power stations, communal establishment, hotels, airports, underground railway networks, hospitals and outpatients clinic (DIN VDE 0107), department stores, data processing centers, theaters, cinemas, in multi-story buildings, public gatherings, schools etc. (DIN VDE 0108), mining works, offshore plants, leading centers, traffic communication, emergency power supply and alarm systems. Suitable for fixed installation in dry and moist rooms, in, above, on and beneath plaster as well as in walls and in concrete. These cables are suitable for outdoor applications and in underground by using in conduits or tubes.
Additionally valid also DIN VDE 0298 part 1 and 2.
For the installation in conduit all precautions must be taken that no accumulation of water can occur in the pipes.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
  • Halogen-free; no evolution of corrosive and toxic gases
  • Flame retardant
  • Hardly flammable
  • Self-extinguished and fire resistant
  • No flame propagation, therefore security from fire
  • Low smoke density, no darkening of emergency exits without hindering the fire extinguishing works
  • Toxicologically harmless
  • No self-ignition
  • Maintenance of functionality during the increased current load
  • FE 180: Insulation integrity for 180 minutes. Tests to DIN VDE 0472 part 814 IEC 60331.
    Insulation integrity under direct flame propagation for the test period of 180 minutes.
  • E 30: Functionality of electrical cable systems for minimum 30 minutes. Test to DIN 4102 part 12. This fulfils the demand of technical guidelines for fire protection (supplement 1 to DIN VDE 0108 part 1)
    The functionality for 30 minutes assures that when people or animals are to be saved from a building, 30 minutes secures the functional performance of the fire warning and alarm systems, safety and spare lighting, passenger lifts with evacuation circuits, except the cables which are installed within the ladder shafts and engine rooms.
  • LS0H = Low Smoke Zero Halogen-Free
Note
  • RM = round conductor, multiple-wire
    RE = round conductor, single-wire
  • AWG sizes are approximate equivalent values. the actual cross-section is in mm2
