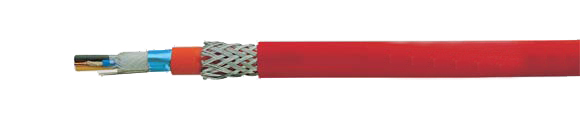

Halogen-Free Security Cable: JE-H(St)HRH

Bd Fire Warning Cable, FE 180/E 30 to E 90, Halogen-Free, Outer Jacket Red

Hi-Tech Controls, Inc, European & Domestic cable

JE-H(St)HRH Bd Fire warning cable, FE 180/E 30 to E 90, halogen-free, RoHS Compliant, RoHS Approved, Hi-Tech Controls, , Halogen-free Security Cables
Part-No. Description & No. of pairs x diameter in mm Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
34075 JE-H(ST)HRH 2x2x0.8 10.5 25.0 150.0 -
34076 JE-H(ST)HRH 4x2x0.8 14.8 45.0 275.0 -
34077 JE-H(ST)HRH 8x2x0.8 21.1 85.0 545.0 -
34078 JE-H(ST)HRH 12x2x0.8 22.7 126.0 602.0 -
34079 JE-H(ST)HRH 16x2x0.8 25.0 166.0 734.0 -
34080 JE-H(ST)HRH 20x2x0.8 26.9 206.0 870.0 -
34072 JE-H(ST)HRH 32x2x0.8 35.0 326.0 1360.0 -
34073 JE-H(ST)HRH 40x2x0.8 41.0 407.0 1800.0 -
34074 JE-H(ST)HRH 52x2x0.8 44.0 529.0 2038.0 -
Technical Data
  • Special insulation for conductors and outer jacket according to DIN VDE 0815
  • Compound to DIN VDE 0207 part 23 HI 1, flame resistant
  • Insulation Integrity 180 min tested to DIN VDE 0472 part 814 and IEC 60331, to DIN 4102 adapted to E 30
  • Functionality E 90 min
  • Loop Resistance max. 73 Ohm/km
  • Operating Voltage (peak voltage)
    Max. 225 V (Not for purposes of high current and power installation)
  • Test Voltage
    Conductor/conductor 500 V
    Conductor/shield 2000 V
  • Insulation Resistance
    Min. 100 MOhm x km
  • Mutual Capacitance
    Max. 120 nF/km at 800 Hz
  • Minimum Bending Radius
    Approx. 6x cable Ø
  • Caloric Load Values
    See Technical Information
Approvals
RoHSCE VDE FRNC
Cable Construction
  • Bare solid copper conductor, 0.8 mm Ø
  • Special conductor insulation halogen-free, cross-linked polymer to DIN VDE 0207 part 23, HI1, flame retardant (E90 with special foil wrapping over conductor)
  • 2 conductors twisted to pair and each 4 pairs laid up in bunches, the bunches stranded in layers
  • Glass-fiber taped
  • Shielding with aluminum-laminated polyester tape and solid copper drain wire 0.8 mm Ø
  • Inner jacket, flame retardant polyolefin compound to DIN VDE 0207 part 24 HM3
  • Galvanized steel wire braided shield
  • Special outer jacket HM2 to DIN VDE 0207 part 24, flame resistant
  • Outer jacket: Red (RAL 3000) with imprint "BRANDMELDEKABEL"
Tests
  • Flame test to VDE 0482 part 266-2, BS 4066 part 3 / DIN EN 50266-2 / IEC 60332-3 (equivalent DIN VDE 0472 part 804 test method C)
  • Corrosiveness of combustion gases according to VDE 0482 part 267 / DIN EN 50267-2-2 / IEC 60754-2 (equivalent DIN VDE 0472 part 813)
  • Smoke density according to VDE 0482 part 1034-1+2 / IEC 61034-1+2 / DIN EN 61034-1+2 / BS 7622 part 1+2 (equivalent DIN VDE 0472 part 816)
  • LS0H = Low Smoke Zero Halogen-Free
Application
Flame resistant, halogen-free, static shielded installation cables for telecommunication purpose. The static shield prevents strong interference impulse. Suitable for fixed installation everywhere, where in case of fire human life and material assets are to be protected and a safety consciousness take a special significance, e.g. in industrial complexes, public buildings, hotels, airports, under ground railway networks, hospitals.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
  • No fire propagation
  • Low smoke density
  • Not for purposes of high current and power installation as well as underground laying
  • FE 180: Insulation integrity for 180 minutes. Tests to DIN VDE 0472 part 814 IEC 60331.
    Insulation integrity under direct flame propagation for the test period of 180 minutes.
  • E 30: Functionality of electrical cable systems for minimum 30 minutes. Test to DIN 4102 part 12.
    The functionality for 30 minutes assures when persons and animals are to be saved from a burning building. 30 minutes secures the functional performance of the fire warning and alarm systems, safety and spare lighting, passenger lifts with evacuation circuits, except the cables which are installed within the ladder shafts and engine rooms.
  • E 90: Functionality of electrical cable systems for minimum 90 minutes. Test method to DIN 4102 part 12.
    The functionality for 90 minutes assures the functional performance of water-pressure-rising stations for the supply to avoid smoke and heat in safety-stairs and inner rooms, ladder shafts and engine rooms for fire brigade lifts, emergency lifts for sickbeds in hospitals and the fire brigade lifts.
Note
  • E 30 to E 90
    Functionality is dependent on installation technique.
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
