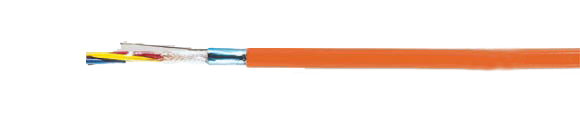

Halogen-Free Security Cable: JE-H(St)H

Bd Fe 180/E 30 to E 90 (Orange), Halogen-Free, Industry-Electronic Cable

Hi-Tech Controls, Inc, European & Domestic cable

JE-H(St)H Bd FE 180/E 30 to E 90 (orange), halogen-free, RoHS Compliant, RoHS Approved, Hi-Tech Controls, , Halogen-free Security Cables
Part-No. Description, Functionality & No. of pairs x diameter in mm Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
34081 JE-H(St)H, E 30 to E 90, 2x2x0.8 7.4 25.0 74.0 -
34082 JE-H(St)H, E 30 to E 90, 4x2x0.8 10.8 45.0 127.0 -
34083 JE-H(St)H, E 30 to E 90, 8x2x0.8 16.9 85.0 300.0 -
34084 JE-H(St)H, E 30 to E 90, 12x2x0.8 18.5 126.0 336.0 -
34085 JE-H(St)H, E 30 to E 90, 16x2x0.8 20.1 166.0 426.0 -
34086 JE-H(St)H, E 30 to E 90, 20x2x0.8 22.2 206.0 529.0 -
34087 JE-H(St)H, E 30 to E 90, 32x2x0.8 29.1 326.0 859.0 -
34088 JE-H(St)H, E 30 to E 90, 40x2x0.8 34.2 407.0 1094.0 -
34089 JE-H(St)H, E 30 to E 90, 52x2x0.8 37.3 529.0 1280.0 -

34148 JE-H(St)H, E 30, 2x2x0.8 7.5 25.0 74.0 -
34149 JE-H(St)H, E 30, 4x2x0.8 9.3 45.0 127.0 -
34150 JE-H(St)H, E 30, 8x2x0.8 11.4 85.0 300.0 -
34151 JE-H(St)H, E 30, 12x2x0.8 13.0 126.0 336.0 -
34152 JE-H(St)H, E 30, 16x2x0.8 15.7 166.0 426.0 -
34153 JE-H(St)H, E 30, 20x2x0.8 16.5 206.0 529.0 -
34154 JE-H(St)H, E 30, 32x2x0.8 20.3 326.0 859.0 -
34155 JE-H(St)H, E 30, 40x2x0.8 23.4 407.0 1094.0 -
34156 JE-H(St)H, E 30, 52x2x0.8 25.2 529.0 1280.0 -
Technical Data
  • Flame retardant, halogen-free installation cable, adapted to DIN VDE 0815
  • Insulation Integrity 180 min, tested to DIN VDE 0472 part 814 and IEC 60331
  • Functionality E 30 to E 90 min
    (dependent on corresponding installation technique)
  • Loop Resistance max. 73.2 Ohm/km
  • Temperature Range
    Flexing
    -5°C to +50°C (+23°F to +122°F)
    Fixed Installation
    -30°C to +70°C (-22°F to +158°F)
  • Operating Voltage (peak voltage)
    225 V (not for purposes of high current and power installation)
  • Test Voltage
    Conductor/conductor 500 V
    Conductor/shield 2000 V
  • Insulation Resistance
    Min. 100 MOhm x km
  • Mutual Capacitance
    Max. 120 nF/km at 800 Hz
    (This value may be extended at 20% with a make-up up to 4 pairs)
  • Capacitance Unbalance
    Max. 200 pF/100 m (20% of the values, but one value up to 400 pF is allowed)
  • Minimum Bending Radius
    Approx. 6x cable Ø
  • Radiation Resistance
    Up to 100x106 cJ/kg (up to 100 Mrad)
  • Caloric Load Values
    See technical information
Approvals
RoHSCE VDE FRNC
Cable Construction
  • Bare copper conductor, solid, 0.8 mm Ø
  • Special conductor insulation halogen-free, cross-linked polymer to DIN VDE 0207 part 23, HI1, flame retardant (E90 with special foil wrapping over conductor)
  • Conductor identification with color rings and ring-groups to DIN VDE 0815
  • Conductors twisted to pairs, each 4 pairs consist to unit, several units stranded to layers
  • Units identified with numbered tape
  • Conductor wrapping with special polyester and glass-fiber tape
  • Shielding with aluminum-laminated polyester tape and solid copper drain wire 0.8 mm Ø
  • Halogen-free outer jacket, flame retardant to DIN VDE 0207 part 24, HM2
  • Jacket color: Orange
Tests
  • Flame test to DIN VDE 0482 part 266-2, BS 4066 part 3 / DIN EN 50266-2 / IEC 60332-3 (equivalent DIN VDE 0472 part 804 test method C)
  • Corrosiveness of combustion gases according to DIN VDE 0482 part 267 / DIN EN 50267-2-2 / IEC 60754-2 (equivalent DIN VDE 0472 part 813)
  • Smoke density according to VDE 0482 part 1034-1+2 / IEC 61034-1+2 / DIN EN 61034-1+2 / BS 7622 part 1+2 (equivalent DIN VDE 0472 part 816)
  • LS0H = Low Smoke Zero Halogen-Free
Application
Flame resistant, halogen-free, static shielded installation cables for telecommunication purpose. The static shield prevents strong interference impulse. Suitable for fixed installation everywhere, where in case of fire human life and material assets are to be protected and a safety consciousness take a special significance, e.g. in industrial complexes, public buildings, hotels, airports, under ground railway networks, hospitals.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
  • No fire propagation
  • Low smoke density
  • FE 180: Insulation integrity for 180 minutes
    Tests to DIN VDE 0472 part 814 = IEC 60331
    Insulation integrity under direct flame propagation for the test period of 180 minutes
  • E 30: Functionality of electrical cable systems for minimum 30 minutes
    Test to DIN 4102 part 12
    The functionality for 30 minutes assures that when people or animals are to be saved from a building, 30 minutes secures the functional performance of the fire warning and alarm systems, safety and spare lighting, passenger lifts with evacuation circuits, except the cables which are installed within the ladder shafts and engine rooms
  • E 90: Functionality of electrical cable systems for minimum 90 minutes
    Test method to DIN 4102 part 12
    The functionality for 90 minutes assures the functional performance of water-pressure-rising stations for the supply to avoid smoke and heat in safety stairs and inner rooms, ladder shafts and engine rooms for fire brigade lifts, emergency lifts for sickbeds in hospitals and the fire brigade lifts
Note
  • E 30 to E 90
    Functionality (burning behavior) depends on corresponding installation technique
  • Not for purposes of high current and power installation as well as underground laying.
Cable Accessories
  • Coming Soon!
