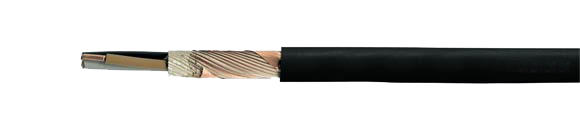

Halogen-Free Security Cable: N2XCH

Power Cable, 0.6/1 kV, Halogen-Free, VDE Approved, With Concentric Conductor, Without Functionality

Hi-Tech Controls, Inc, European & Domestic cable

N2XCH power cable, 0.6/1 kV, halogen-free, with concentric conductor, without functionality, RoHS Compliant, RoHS Approved, Hi-Tech Controls, , Halogen-free Security Cables

Hi-Tech Controls, Inc, European & Domestic cable

No. of Conductors Selection
2
2
3
3
4
4
7
7
10
10
12
12
16
16
21
21
24
24
30
30

Part-No. Description & No. of conductors x cross-section in mm2 Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
53200  N2XCH 2X1.5 / 1.5 RE 14.0 53.0 250.0 16
53201 N2XCH 2X2.5 / 2.5 RE 15.0 81.0 280.0 14
53202 N2XCH 2X4 / 4 RE 14.0 122.0 320.0 12
53203 N2XCH 2X6 / 6 RE 15.0 183.0 400.0 10
53204 N2XCH 2X10 / 10 RE 16.0 311.0 560.0 8
53205 N2XCH 2X16 / 16 RE 19.1 490.0 780.0 6

53206  N2XCH 3X1.5 / 1.5 RE 14.5 67.0 250.0 16
53207 N2XCH 3X2.5 / 2.5 RE 15.5 104.0 320.0 14
53208 N2XCH 3X4 / 4 RE 16.5 161.0 400.0 12
53209 N2XCH 3X6 / 6 RE 18.0 242.0 500.0 10
53210 N2XCH 3X10 / 10 RE 20.0 408.0 750.0 8
53211 N2XCH 3X16 / 16 RE 22.5 643.0 1000.0 6
53212 N2XCH 3X25 / 16 RM 27.0 1001.0 1600.0 4
53213 N2XCH 3X35 / 16 RM 27.5 1190.0 1900.0 2
53214 N2XCH 3X50 / 25 RM 32.3 2003.0 2400.0 1
53215 N2XCH 3X70 / 35 RM 35.6 2794.0 3060.0 2/0
53216 N2XCH 3X95 / 50 RM 39.0 3790.0 4200.0 3/0
53217 N2XCH 3X120 / 70 RM 42.0 4785.0 5207.0 4/0
53218 N2XCH 3X150 / 70 RM 43.5 5100.0 5700.0 300 kcmil
53219 N2XCH 3X185 / 95 RM 47.4 6381.0 7150.0 350 kcmil
53220 N2XCH 3X240 / 120 RM 53.5 8240.0 9250.0 500 kcmil

53221  N2XCH 4X1.5 / 1.5 RE 15.5 81.0 300.0 16
53222 N2XCH 4X2.5 / 2.5 RE 16.5 129.0 380.0 14
53223 N2XCH 4X4 / 4 RE 17.5 202.0 480.0 12
53224 N2XCH 4X6 / 6 RE 19.0 297.0 600.0 10
53225 N2XCH 4X10 / 10 RE 21.5 504.0 850.0 8
53226 N2XCH 4X16 / 16 RE 24.5 797.0 1200.0 6
53227 N2XCH 4X25 / 16 RM 29.0 1142.0 1800.0 4
53228 N2XCH 4X35 / 16 RM 29.5 1528.0 2100.0 2
53229 N2XCH 4X50 / 25 RM 32.5 2203.0 2800.0 1
53230 N2XCH 4X70 / 35 RM 38.0 3082.0 3800.0 2/0
53231 N2XCH 4X95 / 50 RM 43.5 4208.0 5100.0 3/0
53758 N2XCH 4X120 / 70 RM 50.5 5382.0 6556.0 4/0
53759 N2XCH 4X150 / 70 RM 52.1 6540.0 7600.0 300 kcmil
53760 N2XCH 4X185 / 95 RM 57.2 8159.0 9370.0 350 kcmil
53761 N2XCH 4X240 / 120 RM 62.6 10546.0 11611.0 500 kcmil

Part-No. Description & No. of conductors x cross-section in mm2 Outer
Diameter
Copper Weight
kg/km
Weight
ca. kg/km
AWG
53232  N2XCH 7X1.5 / 2.5 RE 14.5 132.0 320.0 16
53239 N2XCH 7X2.5 / 2.5 RE 15.1 200.0 400.0 14
53246 N2XCH 7X4 / 4 RE 18.1 316.0 580.0 12

53233  N2XCH 10X1.5 / 2.5 RE 17.2 177.0 420.0 16
53240 N2XCH 10X2.5 / 4 RE 18.9 287.0 550.0 14

53234  N2XCH 12X1.5 / 2.5 RE 18.4 204.0 460.0 16
53241 N2XCH 12X2.5 / 4 RE 19.2 335.0 610.0 14
53247 N2XCH 12X4 / 6 RE 22.6 528.0 910.0 12

53235  N2XCH 16X1.5 / 4 RE 20.0 275.0 686.0 16
53242 N2XCH 16X2.5 / 6 RE 20.9 450.0 805.0 14

53236  N2XCH 21X1.5 / 6 RE 22.6 370.0 766.0 16
53243 N2XCH 21X2.5 / 6 RE 25.2 572.0 1015.0 14

53237  N2XCH 24X1.5 / 6 RE 23.2 412.0 800.0 16
53244 N2XCH 24X2.5 / 10 RE 26.1 695.0 1100.0 14

53238  N2XCH 30X1.5 / 6 RE 24.3 500.0 930.0 16
53245 N2XCH 30X2.5 / 10 RE 28.0 842.0 1290.0 14

Technical Data
  • Power and control cable according to DIN VDE 0276 part 604, HD 604 S1 part 1 and part 5G
  • Conductor Resistance (at +20°C/+68°F)
    According to VDE 0295 cl. 1 or 2 and IEC 60228 cl. 1 or 2 and HD 383 cl. 1 and cl. 2
  • Temperature Range
    During Installation
    -5°C to +50°C (+23°F to +122°F)
    For Fixed Installation
    -30°C to +90°C (-22°F to +194°F)
  • Permissible Operating Temperature
    at conductor +90°C/+194°F
  • Nominal Voltage U0/U 0.6/1 kV
  • Test Voltage 4 kV
  • Minimum Bending Radius
    Single-conductor approx. 15x cable Ø
    Multi-conductor approx. 12x cable Ø
  • Radiation Resistance
    Up to 100x106 cJ/kg (up to 100 Mrad)
  • Caloric Load Values
    See Technical Information
Approvals
RoHSCE VDEPCT
Cable Construction
  • Plain copper wire conductor, single or multiple-wire, according to DIN VDE 0295 cl. 1 or 2, BS 6360 cl. 1 or 2 and IEC 60228 cl. 1 or 2, HD 383
  • Halogen-free conductor insulation, cross-linked polyethylene compound 2XI1, to HD 604 S1
  • Color coding of conductors according to DIN VDE 0293-308 and HD 186
  • Conductors stranded in layers (for multi-conductor cables)
  • Overall filled inner jacket, covered by filling compound or wrapped tape
  • Concentric conductor of plain copper wires
  • Outer jacket of thermoplastic polyolefin compound HM4, to HD 604 S1
  • Jacket color: Black
  • LS0H = Low Smoke Zero Halogen-Free
Application
See also type N2XH. The concentric conductor can be used as PE- PEN conductor or as shield. Suitable for fixed installation in dry, damp or wet environments, in, above, on and beneath plaster as well as in concrete. These cables are suitable for outdoor applications and in underground by using in conduits or tubes.
CE Approval = The product is conformed with the EC Low-Voltage 2006/95/EG.
Properties
  • Halogen-free, no liberation of corrosive or toxic gases
  • Limited propagation of fire
  • Low smoke development
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Tests
  • Flame test to DIN VDE 0482 part 266-2, BS 4066 part 3 / DIN EN 50266-2 / IEC 60332-3 (equivalent DIN VDE 0472 part 804 test method C)
  • Corrosiveness of combustion gases according to VDE 0482 part 267 / DIN EN 50267-2-2 / IEC 60754-2 (equivalent DIN VDE 0472 part 813)
  • Halogen-free according to DIN VDE 0482 part 267 / DIN EN 50267-2-1 / IEC 60754-1 (equivalent DIN VDE 0472 part 815)
  • Smoke density according to VDE 0482 part 1034-1+2 / IEC 61034-1+2 / DIN EN 61034-1+2 / BS 7622 part 1+2 (equivalent DIN VDE 0472 part 816)
Note
  • RM = round conductor, multiple-wire
    RE = round conductor, single-wire
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
