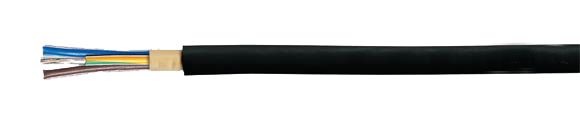

Halogen-Free Security Cable: N2XH

Power Cable, 0.6/1 kV, Halogen-Free, VDE Approved, Without Functionality

Hi-Tech Controls, Inc, European & Domestic cable

N2XH power cable, 0.6/1 kV, halogen-free, without functionality, RoHS Compliant, RoHS Approved, Hi-Tech Controls, , Halogen-free Security Cables
No. of Conductors Selection
1
1
2
2
3
3
4
4
5
5
7
7
10
10
12
12
14
14
19
19
24
24
30
30
3+ conductors
Part-No.
J Type
Part-No.
O Type
Description & No. of conductors x cross-section in mm2 Outer
Diameter
Copper Weight
kg/km
Weight
ca. kg/km
AWG
53100  53248 N2XH 1x4 RE 8.0 39.0 68.0 12
53101 53249 N2XH 1x6 RE 9.0 58.0 90.0 10
53102 53250 N2XH 1x10 RE 9.0 96.0 140.0 8
53103 53251 N2XH 1x16 RE 10.0 154.0 190.0 6
53104 53252 N2XH 1x25 RM 11.0 240.0 290.0 4
53105 53253 N2XH 1x35 RM 12.0 336.0 390.0 2
53106 53254 N2XH 1x50 RM 15.0 480.0 510.0 1
53107 53255 N2XH 1x70 RM 17.0 672.0 710.0 2/0
53108 53256 N2XH 1x95 RM 19.0 912.0 960.0 3/0
53109 53257 N2XH 1x120 RM 21.0 1152.0 1200.0 4/0
53110 53258 N2XH 1x150 RM 23.0 1440.0 1480.0 300 kcmil
53111 53259 N2XH 1x185 RM 25.0 1776.0 1910.0 350 kcmil
53112 53260 N2XH 1x240 RM 28.0 2340.0 2370.0 500 kcmil
53113 53261 N2XH 1x300 RM 30.0 2880.0 2970.0 600 kcmil

53114  53262 N2XH 2x1.5 RE 12.0 29.0 185.0 16
53115 53263 N2XH 2x2.5 RE 12.2 48.0 220.0 14
53116 53264 N2XH 2x4 RE 13.2 77.0 275.0 12
53117 53265 N2XH 2x6 RE 14.1 115.0 335.0 10
53118 53266 N2XH 2x10 RE 16.2 192.0 450.0 8
53119 53267 N2XH 2x16 RE 17.8 307.0 620.0 6
53120 53268 N2XH 2x25 RM 21.0 480.0 930.0 4

Part-No.
J Type
Part-No.
O Type
Description & No. of conductors x cross-section in mm2 Outer
Diameter
Copper Weight
kg/km
Weight
ca. kg/km
AWG
53121  53269 N2XH 3G1.5 RE 13.0 43.0 220.0 16
53122 53270 N2XH 3G2.5 RE 14.0 72.0 280.0 14
53123 53271 N2XH 3G4 RE 15.0 115.0 350.0 12
53124 53272 N2XH 3G6 RE 16.0 173.0 420.0 10
53125 53273 N2XH 3G10 RE 18.0 288.0 600.0 8
53126 53274 N2XH 3G16 RE 20.0 461.0 770.0 6
53127 53275 N2XH 3G25 RM 21.8 720.0 1120.0 4
53128 53276 N2XH 3G35 RM 24.9 1008.0 1550.0 2
53129 53277 N2XH 3G50 RM 25.2 1440.0 1750.0 1
53130 53278 N2XH 3G70 RM 29.2 2016.0 2450.0 2/0
53131 53279 N2XH 3G95 RM 32.0 2736.0 3250.0 3/0
53132 53280 N2XH 3G120 RM 34.9 3456.0 4000.0 4/0
53133 53281 N2XH 3G150 RM 39.2 4320.0 5000.0 300 kcmil
53134 53282 N2XH G3185 RM 44.1 5328.0 6150.0 350 kcmil
53135 53283 N2XH 3G240 RM 49.2 6912.0 8000.0 500 kcmil

53143  53284 N2XH 4G1.5 RE 13.0 58.0 235.0 16
53144 53285 N2XH 4G2.5 RE 14.0 96.0 290.0 14
53145 53286 N2XH 4G4 RE 15.0 154.0 370.0 12
53146 53287 N2XH 4G6 RE 16.0 230.0 470.0 10
53147 53288 N2XH 4G10 RE 18.0 384.0 670.0 8
53148 53289 N2XH 4G16 RE 20.0 614.0 930.0 6
53149 53290 N2XH 4G25 RM 25.0 960.0 1440.0 4
53150 53291 N2XH 4G35 RM 27.0 1344.0 1890.0 2
53151 53292 N2XH 4G50 RM 28.0 1920.0 2300.0 1
53152 53293 N2XH 4G70 RM 32.0 2668.0 3200.0 2/0
53153 53294 N2XH 4G95 RM 36.0 3648.0 4250.0 3/0
53154 53295 N2XH 4G120 RM 40.2 4608.0 5350.0 4/0
53155 53296 N2XH 4G150 RM 45.8 5760.0 6550.0 300 kcmil
53156 53297 N2XH 4G185 RM 49.5 7104.0 8100.0 350 kcmil
53157 53298 N2XH 4G240 RM 56.0 9216.0 10550.0 500 kcmil

Part-No.
J Type
Part-No.
O Type
Description & No. of conductors x cross-section in mm2 Outer
Diameter
Copper weight
kg/km
Weight
ca. kg/km
AWG
53158  53299 N2XH 5G1.5 RE 14.5 72.0 280.0 16
53159 53309 N2XH 5G2.5 RE 16.0 120.0 350.0 14
53160 53310 N2XH 5G4 RE

17.0

192.0 450.0 12
53161 53311 N2XH 5G6 RE 18.5 288.0 600.0 10
53162 53312 N2XH 5G10 RE 21.0 480.0 850.0 8
53163 53313 N2XH 5G16 RE 24.0 768.0 1200.0 6

53164  53314 N2XH 7G1.5 RE 15.5 101.0 350.0 16
53171 53315 N2XH 7G2.5 RE 17.0 168.0 370.0 14
53178 53316 N2XH 7G4 RE 17.2 269.0 530.0 12

53165  53317 N2XH 10G1.5 RE 18.5 144.0 480.0 16
53172 53318 N2XH 10G2.5 RE 20.0 240.0 500.0 14

53166  53319 N2XH 12G1.5 RE 19.0 173.0 520.0 16
53173 53320 N2XH 12G2.5 RE 21.0 288.0 560.0 14
53179 53321 N2XH 12G4 RE 21.2 461.0 800.0 12

53167  53322 N2XH 14G1.5 RE 20.0 202.0 550.0 16
53174 53323 N2XH 14G2.5 RE 22.0 336.0 630.0 14

53168  53324 N2XH 19G1.5 RE 22.0 274.0 700.0 16
53175 53325 N2XH 19G2.5 RE 24.0 456.0 800.0 14

53169  53326 N2XH 24G1.5 RE 25.0 346.0 850.0 16
53176 53327 N2XH 24G2.5 RE 27.0 576.0 990.0 14

53170  53328 N2XH 30G1.5 RE 26.0 432.0 950.0 16
53177 53329 N2XH 30G2.5 RE 28.0 720.0 1180.0 14
3 1/2 conductors
Part-No.
J Type
Part-No.
O Type
Description & No. of conductors x cross-section in mm2 Outer
Diameter
Copper weight
kg/km
Weight
ca. kg/km
AWG
53136 53330 N2XH 3G50 / 25 RM 28.5 1680.0 2100.0 1
53137 53331 N2XH 3G70 / 35 RM 31.4 2352.0 2800.0 2/0
53138 53332 N2XH 3G95 / 50 RM 34.9 3216.0 3750.0 3/0
53139 53333 N2XH 3G120 / 70 RM 38.0 4128.0 4750.0 4/0
53140 53334 N2XH 3G150 / 70 RM 43.3 4992.0 5750.0 300 kcmil
53141 53335 N2XH 3G185 / 95 RM 47.2 6240.0 7200.0 350 kcmil
53142 53336 N2XH 3G240 / 120 RM 53.4 8064.0 9300.0 500 kcmil
Technical Data
  • Power and control cable according to DIN VDE 0276 part 604, HD 604 S1 part 1 and part 5G
  • Conductor Resistance (at +20°C/+68°F)
    According to VDE 0295 cl. 1 or 2 and IEC 60228 cl. 1 or 2 and HD 383 cl. 1 and cl. 2
  • Temperature Range
    During Installation
    -5°C to +50°C (+23°F to +122°F)
    Fixed Installation
    -30°C to +90°C (-22°F to +194°F)
  • Permissible Operating Temperature
    at Conductor +90°C/+194°F
  • Nominal Voltage U0/U 0.6/1 kV
  • Test Voltage 4 kV
  • Minimum Bending Radius
    Single-conductor approx. 15x cable Ø
    Multi-conductor approx. 12x cable Ø
  • Radiation Resistance
    Up to 100x106 cJ/kg (up to 100 Mrad)
  • Caloric Load Values
    See Technical Information
Approvals
RoHSCE PCT VDE
Cable Construction
  • Plain copper wire conductor, single or multiple-wire, according to DIN VDE 0295 cl. 1 or 2, BS 6360 cl. 1 or 2 and IEC 60228 cl. 1 or 2, HD 383
  • Halogen-free conductor insulation, cross-linked polyethylene compound 2XI1, to HD 604 S1
  • Color coding of conductors according to DIN VDE 0293-308 and HD 186
  • Green-yellow earth-conductor, 3 conductors and above
  • Conductors stranded in layers (for multi-conductor cables)
  • Overall filled inner jacket, covered by filling compound or wrapped tape
  • Outer jacket of thermoplastic polyolefin compound HM4, to HD 604 S1
  • Jacket color: Black
  • LS0H = Low Smoke Zero Halogen-Free
Application
Halogen-free power cables with enhanced characteristics in case of fire are used for applications where harm to human life and damage to property must be prevented in the event of fire, e.g. in industrial installations, communal establishments, hotels, airports, underground stations, railway stations, hospitals, department stores, banks, schools, theaters, multi-story buildings, process control centers etc. Suitable for fixed installation in dry, damp or wet environments, in, above, on and beneath plaster as well as in concrete. These cables are suitable for outdoor applications and in underground by using in conduits or tubes.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
  • Halogen-free, no separation of corrosive or toxic gases
  • Limited propagation of fire
  • Low smoke development
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Tests
  • Flame test to VDE 0482 part 266-2, BS 4066 part 3 / DIN EN 50266-2 / IEC 60332-3 (equivalent DIN VDE 0472 part 804 test method C)
  • Corrosiveness of combustion gases according to VDE 0482 part 267 / EN 50267-2-1 / IEC 60754-2 (equivalent DIN VDE 0472 part 813)
  • Halogen-free according to DIN VDE 0482 part 267/ EN 50267-2-1/ IEC 60754-1 (equivalent DIN VDE 0472 part 815)
  • Smoke density according to DIN VDE 0482 part 268, HD 606, EN 50268-1+2 / IEC 61034-1+2, BS 7622 part 1+2 (equivalent DIN VDE 0472 part 816)
Note
  • RE = round conductor, multiple-wire;
    RM = round conductor, single-wire.
  • G = with green-yellow grounding;
    x = without green-yellow grounding
Cable Accessories
  • Coming Soon!
