Helukabel, JE-LiHCH Bd Industry Halogen Free Security Cable|Hi-Tech Controls

Helukabel Part-No.	Description & No. of pairs x diameter in mm	Conductor Ø in mm	No. units	Outer Diameter mm	Copper weight kg/km	Weight ca. kg/km	AWG
34350	JE-LIHCH 2X2X0.5	1.6	-	9.0	44.0	102.0	20
34351	JE-LIHCH 4X2X0.5	1.6	1	12.0	80.0	168.0	20
34352	JE-LIHCH 8X2X0.5	1.6	2	17.0	152.0	297.0	20
34353	JE-LIHCH 12X2X0.5	1.6	3	18.0	192.0	357.0	20
34354	JE-LIHCH 20X2X0.5	1.6	5	22.0	288.0	555.0	20
34355	JE-LIHCH 32X2X0.5	1.6	8	26.0	439.0	852.0	20
34356	JE-LIHCH 40X2X0.5	1.6	10	29.0	531.0	1005.0	20

Technical Data

Helukabel

Industry-Electronic cable according to DIN VDE 0815
Loop Resistance at 20°C/68°F
39.2 Ohm/km
Temperature Range
Flexing
-5°C to +50°C (+23°F to +122°F)
Fixed Installation
-30°C to +70°C (-22°F to +158°F)
Operating Voltage (peak value)
225 V (Not for purposes of high current and power installation)
Test Voltage U eff.
Conductor/conductor 500 V
Conductor/shield 2000 V
Insulation Resistance
Min. 100 MOhm x km

Mutual Capacitance
Max. 120 nF/km at 800 Hz (This value may be extended at 20% with a make-up up to 4 pairs)
Capacitance Unbalance
Max. 200 pF/100 m (20% of the values, but one value up to 400 pF is allowed)
Minimum Bending Radius
Approx. 7.5x cable Ø
Radiation Resistance
Up to 100x10⁶ cJ/kg (up to 100 Mrad)
Caloric Load Values
See Technical Information

Approvals

FRNC

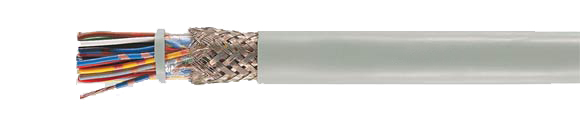

Cable Construction

Bare copper, 7x0.3 mm 0.5 mm²
Halogen-free conductor insulation, compound type HI1 or HI2 to DIN VDE 0207 part 23, insulation wall thickness 0.3 mm
Conductor identification to DIN VDE 0815 (with ring colors and ring groups)
2 conductors twisted in pair, 4 pairs to a unit and several units stranded in layers (for 2 pairs cable, 4 conductors stranded to a quad)
Conductor wrapping with plastic tape
Copper braided shielding, wire 0.2 mm, approx. 85% coverage
Outer jacket halogen-free, gray RAL 7032, compound type HM1 or HM2 to DIN VDE 0207 part 24
Jacket wall-thickness to DIN VDE 0815

Application

Halogen-free installation cables with improved characteristics in the case of fire are used for telephone transmission, measuring and signal purposes.
The copper shielding design (C) protects the transmission circuits against electrical interferences. A fire propagation is prevented through high oxygen index of the insulation material and produce no corrosive gases in case of fire. Those are preferable used for telecommunication indoor installations and in special cases the outdoor installation is permitted under protection against sunlight. These cables are suitable for fixed installation in areas with danger of fire, in dry and damp environments as well in and under plaster.

= The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.

Properties

Not for purposes of high current and power installation as well as underground laying

Tests

Flame test to DIN VDE 0482 part 266-2, BS 4066 part 3 / DIN EN 50266-2 / IEC 60332-3 (equivalent DIN VDE 0472 part 804 test method C)
Corrosiveness of combustion gases according to VDE 0482 part 267 / DIN EN 50267-2-2 / IEC 60754-2 (equivalent DIN VDE 0472 part 813)
Smoke density according to VDE 0482 part 1034-1+2 / IEC 61034-1+2 / DIN EN 61034-1+2 (equivalent DIN VDE 0472 part 816)
