CAMOZZI Valves - Manual, Mechanical & Air-Pilot

Air-Pilot Valves - Product Overview

Series 9 Air-Pilot Operated Valves Cv= .95 - 4.57

Assembly with sub-base (ISO 5599/1 Standards) non-plug-in
Sizes 1, 2 and 3: 5-way/2-position; 5-way/3-position; single & double Air-Pilot valves.

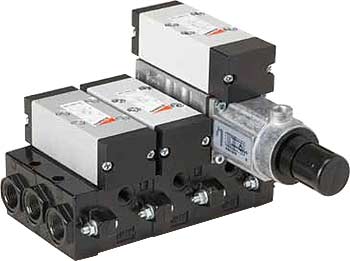

Series 9 Air-Pilot Operated ValvesThe Series 9 Air-Pilot operated valves have been manufactured in the sizes 1, 2 and 3, as recommended by the ISO Standards. Three different types of sub-base are available:
- single sub-base with side ports
- single sub-base with rear ports
- manifold sub-base with common exhausts complete with end blocks.

The Series 9 solenoid valves are also constructed so as to be actuated in different ways:
- Air-Pilot and spring return
- Air-Pilot and return
- Air-Pilot and differential
- Air-Pilot return (bias override)

Series 9 Air-Pilot Operated Valves Cv= .95 - 4.57
5-way/2-position valves, ISO 1, ISO 2, ISO 3, spring return and detented Cv= .95 - 4.97 5-way/2-position valves, ISO 1, ISO 2, ISO 3, spring return and detented Cv= .95 - 4.97
5-way/3-position valve, ISO 1, ISO 2, ISO 3,spring return, with stable central position Cv = .95 - 4.57 5-way/3-position valve, ISO 1, ISO 2, ISO 3,spring return, with stable central position Cv = .95 - 4.57
Single sub-base side outlets (VDMA 24345) Single sub-base side outlets (VDMA 24345)
Single sub-base with rear outlets (VDMA 24345) Single sub-base with rear outlets (VDMA 24345)
Manifold sub-base with common exhausts and inlet (VDMA 24345):(bottom outlets) Manifold sub-base with common exhausts and inlet (VDMA 24345):(bottom outlets)
End block for manifold sub-base (VDMA 24345): for use with C manifolds only End block for manifold sub-base (VDMA 24345): for use with "C" manifolds only
  Assembly of manifold sub-base (VDMA 24345) assembly dimensions for "C" manifold with "H" end plates
Manifold segment adapter with front outlets (VDMA 24345): for use withC manifold to adapt to end outlets Manifold segment adapter with front outlets (VDMA 24345): for use with"C" manifold to adapt to end outlets
Manifold bases with common inlet and exhaust ports and with outlet ports on the front (end) Manifold bases with common inlet and exhaust ports and with outlet ports on the front (end)
End blocks for manifold bases with front outlets: for use with N1A manifold units End blocks for manifold bases with front outlets: for use with "N1A" manifold units
  Assembly for front outlet manifold sub-bases: (shown with "N1A" & "HN1" assembly dimensions in mm units)
Cover Plate Mod. 901-TP (ISO size 1 only)
Separation tap lines Separation tap lines
Mod. 901-N1A/T - full blocking gasket Mod. 901-N1A/T - full blocking gasket
Mod. 901 - N1A/TP - pressure blocking gasket Mod. 901 - N1A/TP - pressure blocking gasket
Technical Specifications
Construction spool-type (servocontrolled) packed bore
Valve group 5-way/2-position and 5-way/3-position
Materials Anodized aluminum body, stainless steel spool, BUNA-N seals
Mounting threaded holes in sub-base
Size 1, 2 and 3 according to ISO 5599/1 standard)
Installation in any position
Operating temperature 0 - 60°C (using dry air at -20°C) (32°F - 140°F) (using dry air at -4°F)
Pneumatic Data
Operating pressure max. press. 10 bar (for minimum pressures see descriptions); 145 psi max
Nominal pressure 6 bar (87 psi) nominal
Nominal flow * Qn Size 1 = 900 NL/min; 31.8 SCFM, Cv= .95
Size 2 = 1610 NL/min; 56.8 SCFM, Cv= 1.69
Size 3 = 4350 NL/min; 153.6 SCFM, Cv= 4.57
Fluid filtered air, without lubrication (25 micron or less recommended)**
*Qn = determined with supply pressure of 6 bar and with Dp = 1 bar. **If lubricated air is used, it is recommended to use ISOVG32 oil and to never interrupt the lubrication.
