camozzi Index|Valves|Manual Valves


camozzi

CAMOZZI Valves - Manual, Mechanical & Air-Pilot

Series 2 - Manually Operated Console Minivalves

Download & Save as PDF File PDF Download

Mini-handle valve 234-885 and 234-88E

Manual handle with integrated pneumatic micro valve 3/2 or with an electrical micro switch with single pole changeover contacts. Rugged construction particularly suited to be incorporated in to other equipment, such as manual lifting systems, manual vacuum systems, locking and clamping systems.

Note: Handles can support a load of 330 lbf combined total when assembled with 2, M5 x 0.8 BOLTS x 10mm long. (Maximum bolt torque is 7 ft-lbs).

Mini-handle valve 234-885

Handle with incorporated micro valve 3-way/2-position Normally Closed
Mini-handle valve 234-885
Part Number
234-885
Technical Specifications
Construction poppet-type (closed centers)
Valve function 3-way/2-position Normally Closed
Nominal diameter 2.5 mm orifice
Fixing No. 2 M5 x 0.8 female bolts
Ports push in cartridge Ø4mm (5/32" OD)
Installation in any position
Operating temperature 32°F - 175°F
(dry air required down to -4°F)
Operating pressure 2 - 10 bar (30 - 145 psi)
Nominal flow Qn 60 Nl/min. (6 bar D p1) (2.12 SCFM)
Fluid Filtered air, without lubricant*
Actuating force at 6 bar 13N (3 lbs)
* If lubricated air is used, it is reccommended to use oil ISOVG32 grade. Once applied the lubrication should never be interrupted.

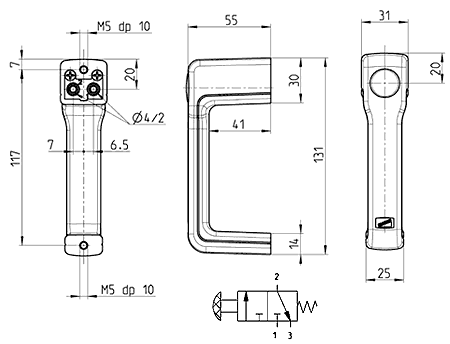

Technical Drawing

Mini-handle valve 234-88E

Handle with incorporated micro switch
Mini-handle valve 234-88E
Part Number
234-88E
Technical Specifications
Construction switch device
Electrical connections 3 wires Ø external 2,2 mm
internal section 0,5 length 30 cm
NC = black wire
NO = blue wire
Fixing No. 2 M5 x 0.8 female bolts
Mounting in any position
Operating temperature 32°F - 175°F
Protection class IP 40
Activation stroke 2 mm
Actuating force 5 N (1 lbf)
Technical Drawing
Non-Inductive Load / Inductive Load
Voltage
Resistive
NC / NO
Lamp
NC / NO
Inductive
NC / NO
Motor
NC / NO
125 VAC 5 A 1.5 A / 0.7 A 3 A 2.5 A / 1.3 A
250 VAC 3 A 1 A / 0.5 A 2 A 1.5 A / 0.8 A
8 VDC 5 A 2 A 5 A / 4 A 3 A
14 VDC 5 A 2 A 4 A / 4 A 3 A
30 VDC 4 A 2 A 3 A / 3 A 3 A
125 VDC 0.4 A 0.05 A 0.4 A / 0.4 A 0.05 A
250 VDC 0.2 A 0.03 A 0.2 A / 0.2 A 0.03 A
The above-mentioned values refer to steady-state-current.
The inductive load refers to power factor = 0.4 in Ac. and a time constant of 7 msec max. in Dc.
Lamp load has an inrush current of 10 times the steady-state current.
Motor load has an inrush current of 6 times the steady-state current.
If the switch is used in a DC circuit and is subjected to a surge connect a surge suppressor across the switch.
