CAMOZZI Valves
Manual, Mechanical & Air-Pilot

Air-Pilot Valves - Series 7

Download & Save as PDF File PDF Download

Series 7 Solenoid and Air-Pilot Operated Valves

5-way/2-position valves VDMA 01 - VDMA 02, Single Air-Pilot, Air-Spring Return Cv= .47 - .95
Series 7 Solenoid and Air-Pilot Operated Valves
The Series 7 solenoid valves with VDMA 01 - 02 interface which have Air-Pilot actuation and air-spring return, (via manifold porting) are suitable for mounting on a sub-base.
For the correct use of the valve, the pilot pressure must be the same or higher than the operating pressure.
The minimum operating pressure is 3 bar - 43.5 psi.
Note: Interface seals and fixing screws are packaged with
the valve.

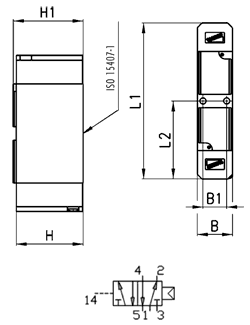

Technical Drawing
Part Number Size ISO B B1 L1 L2 H H1
751-000-36 01-26mm 26.5 19 99.7 49.85 39 40.5
752-000-36 02-18mm 18.5 12.5 82.2 41.1 35.2 36.7

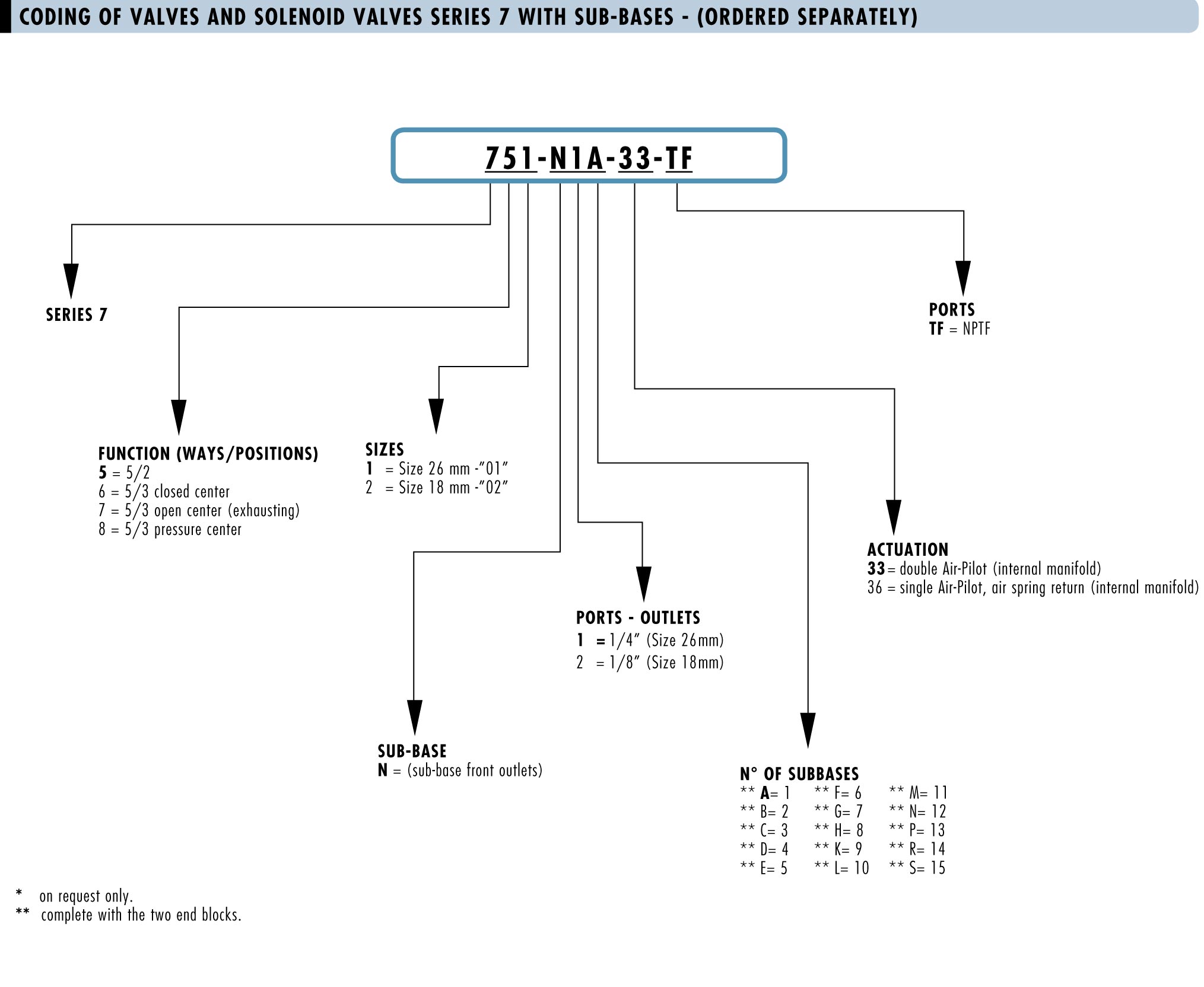

Coding Example
Coding Example
(Click Image to Enlarge)
Technical Specifications
Construction Packed spool-type
Valve group 5-way/2-position, 5-way/3-position
Materials Anodized aluminum body, spool, base nylon end covers, BUNA-N seals
Mounting through holes in valve body onto manifold segements
Operating temperature 0°C min. +50°C max, (32°F - 122°F)
Lubricant without lubrication**
Size 26 mm - size VDMA 01; 18 mm - size VDMA 02
Installation in any position
Pneumatic Data
Operating pressure P. max 7 bar (102 psi). See tables for minimum operating pressures.
Nominal pressure 6 bar - 87 psi (used for flow calcutations)
Nominal flow *Qn Size 26 mm: 900 NL/min; 31.8 SCFM ; Cv = .95
Size 18 mm: 450 NL/min; 15.9 SCFM; Cv = .47
Fluid filtered air (5 micron or less), without lubrication**
*Qn = determined with supply pressure of 6 bar and with Dp = 1 bar ** If lubricated air is used, it is recommended to use ISOVG32 oil and never to interrupt the lubrication.
