European Single Conductors:

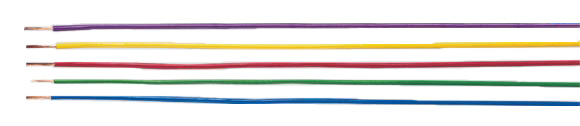

H07 V-R/ H05 V-K /(H)07 V-K**

PVC-Single Conductors, Fine Wire Stranded, VDE 0281 Approved

Hi-Tech Controls, Inc, European & Domestic cable

H07 V-R/ H05 V-K /(H)07 V-K** PVC-Single Conductors, fine wire stranded, VDE 0281 approved, European  , Hi-Tech Controls

H07 V-R: Coil in foil Coil in Foil Drum Drum

Twin tone PVC-Single Conductors - H05 V-K / (H)07 V-K**: Coil in foil Coil in Foil

Coil in Foil H07 V-R
Coil in Foil
Cross-Sec. mm2 Outer
Dia.
mm
Copper Weight
kg/km
European Part-No.
black green-yellow blue brown red white gray violet
RAL 9005 RAL 6018 RAL 5015 RAL 8003 RAL 3000 RAL 1031 RAL 7000 RAL 4005
16.0 6.4-7.8 154.0 28825 28826 28827 28828 28829 28830 28831 28832
25.0 8.1-9.7 240.0 28833 28834 28835 28836 28837 - - -
35.0 9.0-10.9 336.0 28838 28839 28840 28841 28842 - - -
50.0 10.6-12.8 480.0 28843 28844 28845 28846 28847 - - -
70.0 12.1-14.6 672.0 28848 28849 28850 28851 28852 - - -
95.0 14.1-17.1 912.0 28853 28854 28855 28856 28857 - - -
120.0 15.6-18.8 1152.0 28858 28859 28860 28861 28862 - - -
150.0 17.3-20.9 1440.0 28863 28864 28865 28866 28867 - - -
185.0 19.3-23.3 1776.0 28868 28869 28870 28871 28872 - - -
240.0 22.0-26.6 2304.0 28873 28874 28875 28876 28877 - - -

Spool

H07 V-R
Drum

Cross-Sec. mm2 Outer
Dia.
mm
Copper Weight
kg/km
European Part-No.
black green-yellow blue brown red white gray violet
RAL 9005 RAL 6018 RAL 5015 RAL 8003 RAL 3000 RAL 1031 RAL 7000 RAL 4005
16.0 6.4-7.8 154.0 28185 28186 28187 28188 28189 28190 28191 28192
25.0 8.1-9.7 240.0 28193 28194 28195 28196 28197 - - -
35.0 9.0-10.9 336.0 28198 28199 28200 28201 28202 - - -
50.0 10.6-12.8 480.0 28203 28204 28205 28206 28207 - - -
70.0 12.1-14.6 672.0 28208 28209 28210 28211 28212 - - -
95.0 14.1-17.1 912.0 28213 28214 28215 28216 28217 - - -
120.0 15.6-18.8 1152.0 28218 28219 28220 28221 28222 - - -
150.0 17.3-20.9 1440.0 28223 28224 28225 28226 28227 - - -
185.0 19.3-23.3 1776.0 28228 28229 28230 28231 28232 - - -
240.0 22.0-26.6 2304.0 28233 28234 28235 28236 28237 - - -

Coil in Foil

Twin tone PVC-Single Conductors in Coils:
H05 V-K
Cross-Sec. mm2 Outer
Diameter
mm
Copper Weight
kg/km
European Part-No.
red-white blue-white brown-white dark blue-white
0.5 2.1-2.5 4.8 29370 29375 29380 29394
0.75 2.2-2.7 7.2 29371 29376 29381 29395
1.0 2.4-2.8 9.6 29372 29377 29382 29396


Coil in Foil

Twin tone PVC-Single Conductors in Coils:
(H)07 V-K**
Cross-Sec. mm2 Outer
Diameter
mm
Copper Weight
kg/km
European Part-No.
red-white blue-white brown-white dark blue-white
1.5 2.8-3.4 14.4 29373 29378 29383 29397
2.5 3.4-4.1 24.0 29374 29379 29384 29398
4.0 3.9-4.8 38.0 29385 29386 29387 29399
6.0 4.4-5.3 58.0 29388 29389 29390 29527
10.0 5.7-6.8 96.0 29391 29392 29393 29528

Barrel Twin Tone PVC Single Conductors in Barrels:
H05 V-K/mm2
Cross-Sec. mm2 Outer Dia. mm Copper Weight kg/km European Part-No.
red-white blue-white brown-white dark blue-white
0.5 2.1-2.5 4.8 28948 28949 28950 28951
0.75 2.2-2.7 7.2 28952 28953 28954 28955
1.0 2.4-2.8 9.6 28956 28957 28958 28959

Barrel

Twin Tone PVC Single Conductors in Barrels:
(H)07 V-K**/mm2

Cross-Sec. mm2 Outer Dia. mm Copper Weight kg/km European Part-No.
red-white blue-white brown-white dark blue-white
1.5 2.8-3.4 14.4 28960 28961 28962 28963
2.5 3.4-4.1 24.0 28964 28965 28966 28967
4.0 3.9-4.8 38.0 28968 28969 28970 28971
6.0 4.4-5.3 58.0 28972 28973 28974 28975
10.0 5.7-6.8 96.0 28976 28977 28978 28979

Spool Twin Tone PVC Single Conductors in Barrels:
H05 V-K/mm2
Cross-Sec. mm2 Outer Dia. mm Copper Weight kg/km European Part-No.
red-white blue-white brown-white dark blue-white
0.5 2.1-2.5 4.8 29745 29746 29747 29748
0.75 2.2-2.7 7.2 29749 29750 29751 29752
1.0 2.4-2.8 9.6 29753 29754 29755 29756
spool

Twin Tone PVC Single Conductors in Barrels:
(H)07 V-K**/mm2

Cross-Sec. mm2 Outer Dia. mm Copper Weight kg/km European Part-No.
red-white blue-white brown-white dark blue-white
1.5 2.8-3.4 14.4 29757 29758 29759 29760
2.5 3.4-4.1 24.0 29761 29762 29763 29764
4.0 3.9-4.8 38.0 29765 29766 29767 29768
6.0 4.4-5.3 58.0 29769 29770 29771 29772
10.0 5.7-6.8 96.0 29773 29774 29775 29776
Technical Data European
H05 V-K:
  • PVC single conductors to DIN VDE 0281-3
    H05 V-K/H05 V-U to DIN VDE 0281 part 3, HD 21.3 S3 and IEC 60227-3
  • Temperature Range
    -5°C to +70°C (+23°F to +158°F)
    Fixed Installation
    -30°C to +80°C (-22°F to 176°F)
  • Nominal Voltage U0/U300/500 V
  • Test Voltage H05 V-K 2000 V
  • Insulation Resistance
    Min. 10 MOhm x km
  • Minimum Bending Radius
    12.5x cable Ø
  • Radiation Resistance
    Up to 80x106 cJ/kg (up to 80 Mrad)

H07 V-R/(H)07 V-K:

  • PVC single conductors to DIN VDE 0281-3, HD 21.3 S3 and IEC 60227-3
  • Temperature Range
    -5°C to +70°C (+23°F to +158°F)
    Fixed Installation
    -30°C to +80°C (-22°F to 176°F)
  • Nominal Voltage U0/U 450/750 V
  • Test Voltage 2500 V
  • Insulation Resistance
    Min. 10 MOhm x km
  • Minimum Bending Radius
    12.5x cable Ø
  • Radiation Resistance
    Up to 80x106 cJ/kg (up to 80 Mrad)
Approvals
RoHSCE VDE PCT
Cable Construction
  • Stranded conductor
  • PVC conductor insulation, compound TI1 to DIN VDE 00281 part 3, HD 21.3 S3 and IEC 60227-3

H05 V-K:

  • Conductor Identification as per DIN VDE 0293
  • The following colors are recommended: black, white, blue, gray, brown, red, orange, turquoise, violet and pink. Exceptions are the colors green and yellow; these are only permitted if the safety regulations allows. Green is permitted for the identification of luminous decorative chains. All two-colored combinations of the above single colors are allowed

H07 V-R/(H)07 V-K:

  • Conductor Identification with Nominal voltage U0/U 450/750 V
  • The following colors are recommended (only single colors): black, white, blue, gray, brown, red, orange, turquoise, violet and pink. Two-colored combinations are not allowed, with exceptions of green-yellow
  • Color code Single conductor cables H07 see Technical Information.
Application
H05 V-K:
These insulated wires are determined for the installation to the inside of apparatus as well as for the protective laying to the lightings, in dry rooms, in production facilities, switch and distributor boards, in tubes, under and surface mounting of plasters.
H07 V-R/(H)07 V-K:
These insulated wires are suitable for laying tubes, under and surface mounting of plasters and also in closed installation conduits. These are not allowed to install for direct laying in cable trays, channels or tanks. These types are permitted for the inner wiring of equipment, distributor and switchboards and also for protective laying to the lightings with a nominal voltage up to 1000 V alternating current or up to 750 V direct current against ground.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • PVC self-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • Two-colored combination is only permitted for (H)07 V.
Cable Accessories
  • Coming Soon!
