European Single Conductors:
H05 V-U/(H)05 V-U, H07 V-U /(H)07 V-U

PVC-Single Conductors, Fine Wire Stranded, VDE 0281 Approved

Hi-Tech Controls, Inc, European & Domestic cable

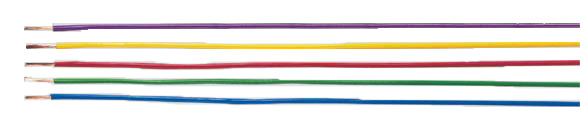

H05 V-U/(H)05 V-U, H07 V-U /(H)07 V-U PVC-Single Conductors, fine wire stranded, VDE 0281 approved, European  , Hi-Tech Controls

H05 V-U / (H)05 V-U: Coil in cardboard Coil in Cardboard
(100 Meter)
Spool Spool
(with various capacity)

H07 V-U / (H)07 V-U Coil in cardboard Coil in Cardboard
(100 Meter)
Drum Drum

Coil in Cardboard H05 V-U / (H)05 V-U
Coil in Cardboard (100 Meter)
Cross-Sec. mm2 Outer
Dia.
mm
Copper Weight
kg/km
European Part-No.
black green-yellow blue brown red white gray violet
RAL 9005 RAL 6018 RAL 5015 RAL 8003 RAL 3000 RAL 1013 RAL 7000 RAL 4005
0.5 1.9-2.3 4.8 28761 28762 28763 28764 28765 28766 28767 28768
0.75 2.1-2.5 7.2 28769 28770 28771 28772 28773 28774 28775 28776
1.0 2.2-2.7 9.6 28777 28778 28779 28780 28781 28782 28783 28784

Spool

H05 V-U / (H)05 V-U
Spool (with various capacity)

Cross-Sec. mm2 Outer
Dia.
mm
Copper Weight
kg/km
European Part-No.
black green-yellow blue brown red white gray violet
RAL 9005 RAL 6018 RAL 5015 RAL 8003 RAL 3000 RAL 1013 RAL 7000 RAL 4005
0.5 1.9-2.3 4.8 26937 26938 26939 26940 26941 26942 26943 26944
0.75 2.1-2.5 7.2 26945 26946 26947 26948 26949 26950 26951 26952
1.0 2.2-2.7 9.6 26953 26954 26955 26956 26957 26958 26959 26960
Coil in Cardboard
H07 V-U / (H)07 V-U
Coil in Cardboard (100 Meter)
Cross-Sec. mm2 Outer
Dia.
mm
Copper Weight
kg/km
European Part-No.
black green-yellow blue brown red white gray violet
RAL 9005 RAL 6018 RAL 5015 RAL 8003 RAL 3000 RAL 1013 RAL 7000 RAL 4005
1.5 2.6-3.2 14.4 28785 28786 28787 28788 28789 28790 28791 28792
2.5 3.2-3.9 24.0 28793 28794 28795 28796 28797 28798 28799 28800
4.0 3.6-4.4 38.0 28801 28802 28803 28804 28805 28806 28807 28808
6.0 4.1-5.0 58.0 28809 28810 28811 28812 28813 28814 28815 28816
10.0 5.3-6.4 96.0 28817 28818 28819 28820 28821 28822 28823 28824
Drum H07 V-U / (H)07 V-U
Drum
Cross-Sec. mm2 Outer
Dia.
mm
Copper Weight
kg/km
European Part-No.
black green-yellow blue brown red white gray violet
RAL 9005 RAL 6018 RAL 5015 RAL 8003 RAL 3000 RAL 1013 RAL 7000 RAL 4005
1.5 2.6-3.2 14.4 28145 28146 28147 28148 28149 28150 28151 28152
2.5 3.2-3.9 24.0 28153 28154 28155 28156 28157 28158 28159 28160
4.0 3.6-4.4 38.0 28161 28162 28163 28164 28165 28166 28167 28168
6.0 4.1-5.0 58.0 28169 28170 28171 28172 28173 28174 28175 28176
10.0 5.3-6.4 96.0 28177 28178 28179 28180 28181 28182 28183 28184
Technical Data European
H05 V-U/(H)05 V-U:
  • PVC single conductors to DIN VDE 0281-3
    H05 V-K/H05 V-U to DIN VDE 0281 part 3, HD 21.3 S3 and IEC 60227-3
  • Temperature Range
    Flexing
    -5°C to +70°C (+23°F to +158°F)
    Fixed Installation
    -30°C to +80°C (-22°F to 176°F)
  • Nominal Voltage U0/U300/500 V
  • Test Voltage H05 V-K 2000 V
  • Insulation Resistance
    Min. 10 MOhm x km
  • Minimum Bending Radius
    12.5x cable Ø
  • Radiation Resistance
    Up to 80x106 cJ/kg (up to 80 Mrad)

H07 V-U/(H)07 V-U:

  • PVC single conductors to DIN VDE 0281-3, HD 21.3 S3 and IEC 60227-3
  • Temperature Range
    Flexing
    -5°C to +70°C (+23°F to +158°F)
    Fixed Installation
    -30°C to +80°C (-22°F to 176°F)
  • Nominal Voltage U0/U 450/750 V
  • Test Voltage 2500 V
  • Insulation Resistance
    Min. 10 MOhm x km
  • Minimum Bending Radius
    12.5x cable Ø
  • Radiation Resistance
    Up to 80x106 cJ/kg (up to 80 Mrad)
Approvals
CE VDE
Cable Construction
  • Solid conductor
  • PVC conductor insulation, compound TI1 to DIN VDE 00281 part 3, HD 21.3 S3 and IEC 60227-3

H05 V-U/(H)05 V-U:

  • Conductor Identification as per DIN VDE 0293
  • The following colors are recommended: black, white, blue, gray, brown, red, orange, turquoise, violet and pink. Exceptions are the colors green and yellow; these are only permitted if the safety regulations allows. Green is permitted for the identification of luminous decorative chains. All two-colored combinations of the above single colors are allowed

H07 V-U/(H)07 V-U:

  • Conductor Identification with Nominal voltage U0/U 450/750 V
  • The following colors are recommended (only single colors): black, white, blue, gray, brown, red, orange, turquoise, violet and pink. Two-colored combinations are not allowed, with exceptions of green-yellow
  • Color code Single conductor cables H07 see Technical Information.
Application
H05 V-U/(H)05 V-U:
These insulated wires are determined for the installation to the inside of apparatus as well as for the protective laying to the lightings, in dry rooms, in production facilities, switch and distributor boards, in tubes, under and surface mounting of plasters.
H07 V-U/(H)07 V-U:
These insulated wires are suitable for laying tubes, under and surface mounting of plasters and also in closed installation conduits. These are not allowed to install for direct laying in cable trays, channels or tanks. These types are permitted for the inner wiring of equipment, distributor and switchboards and also for protective laying to the lightings with a nominal voltage up to 1000 V alternating current or up to 750 V direct current against ground.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
  • PVC self-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • Two-colored combination is only permitted for (H)07 V.
Cable Accessories
  • Coming Soon!
