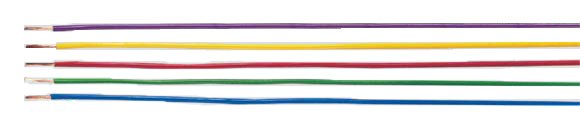

PVC single conductors to DIN VDE
0281-3
H05 V-K/H05 V-U to DIN VDE 0281
part 3, HD 21.3 S3 and IEC 60227-3
Temperature Range Flexing
-5°C to
+70°C (+23°C to
+158°C)
Fixed Installation
-30°C
to +80°C (-22°C to
+176°C)
Nominal Voltage U0/U300/500
V
Test Voltage H05
V-K 2000 V
Insulation Resistance Min. 10 MOhm x km
Minimum Bending Radius 12.5x cable Ø
Radiation Resistance Up to 80x106 cJ/kg (up
to 80 Mrad)
Approvals
Cable
Construction
Bare copper fine wire stranded
to DIN VDE 0295 cl. 5, BS 6360 cl.
5, HD 383 and IEC 60228 cl. 5
PVC conductor insulation, compound TI1
to DIN VDE 00281 part 3, HD 21.3
S3 and IEC 60227-3
Conductor Identification as
per DIN VDE 0293
The following colors are recommended:
black, white, blue, gray, brown,
red, orange, turquoise, violet and
pink. Exceptions are the colors
green and yellow; these are only
permitted if the safety regulations
allows. Green is permitted for the
identification of luminous decorative
chains. All two-colored combinations
of the above single colors are allowed
Application
These insulated
wires are determined for the installation
to the inside of apparatus as well
as for the protective laying to
the lightings, in dry rooms, in
production facilities, switch and
distributor boards, in tubes, under
and surface mounting of plasters.
=
The product
is conformed
with the
EC Low-Voltage
Directive
2006/95/EG.
Properties
PVC self-extinguishing and flame
retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1
(equivalent DIN VDE 0472 part 804 test
method B)
The materials used in manufacture
are cadmium-free, contain no silicone
and are free from substances harmful to
the wetting properties of lacquers
Note
d-bl = dark blue (RAL approx. 5010)
u-bl = ultramarin blue (RAL approx. 5002)
